Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

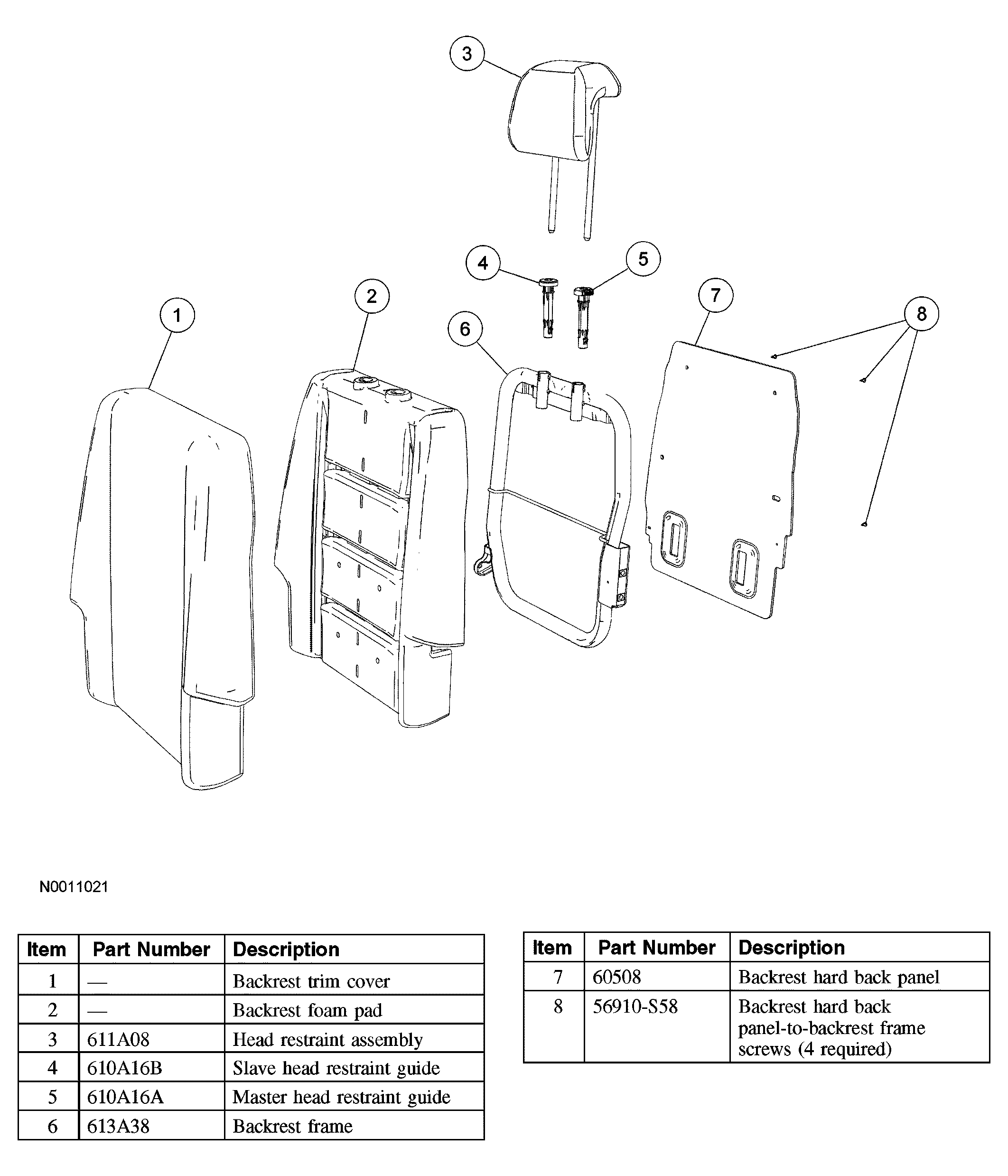

Fig 1: Disassembling Seat Backrest - Second Row, 40 Percent, Freestyle
G03988986Courtesy of FORD MOTOR CO.
  1. Remove the head restraint assembly.
    2. CAUTION: Use care when separating the seat back trim cover from the hook and loop strip, or the hook and loop strip can be torn from the seat back foam.
  2. Release the hook and loop strips, invert the backrest trim cover and remove the 3 rows of hog rings.
    3. CAUTION: Use care when separating the seat back trim cover from the hook and loop strip, or the hook and loop strip can be torn from the seat back foam.
  3. Release the hook and loop strips and invert the backrest trim cover to the top of the backrest.
  4. Remove 4 screws and the backrest hard back panel.
    5. NOTE: The head restraint guides are not interchangeable.
  5. Squeeze the tabs in and remove the 2 head restraint guides.
  6. Remove the backrest trim cover.
  7. Remove the backrest foam pad.
  8. To assemble, reverse the disassembly procedure.
