Pinpoint Test K: The Memory Seat Is Inoperative: Testing

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. K1 RETRIEVE THE DTCs
    WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.  Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
    NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a SRS fault.
    NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
    NOTE: The memory seat track position sensors are integral to the memory seat track motors. The memory seat track motor electrical connectors will connect to a seat track without the memory option. When installing a new seat track, make sure the correct memory or non-memory seat track is being installed.
    • Key in OFF position.
      • WARNING: Be sure that nobody is in the vehicle and that there is nothing blocking or set in front of any air bag module when the battery ground cable is connected.
    • For vehicles equipped with seat side air bags, carry out the following:
      • Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
      • Disconnect driver seat side air bag C3226.
      • Connect restraint system diagnostic tool 418-133 to driver seat side air bag C3226.
      • Connect the battery ground cable.
    • Connect the scan tool.
    • Enter the following diagnostic mode on the scan tool: Retrieve and Document Continuous DTCs.
    • Enter the following diagnostic mode on the scan tool: Clear the Continuous DTCs.
    • Enter the following diagnostic mode on the scan tool: On-Demand Self Test.
    • Are any DTCs retrieved?

    Result/ Action to Take

    • Yes  : If DTCs B1663, B1664, B1665 and B1666 are all retrieved, GO to  K10.

      If DTC B1663, GO to  K20.

      If DTC B1664, GO to  K23.

      If DTC B1665, GO to  K26.

      If DTC B1666, GO to  K29.

      If DTC B1703, GO to  K3.

      If DTC B1707, GO to  K3.

      If DTC B1711, GO to  K3.

      If DTC B1715, GO to  K3.

      If DTC B1719, GO to  K3.

      If DTC B1723, GO to  K3.

      If DTC B1727, GO to  K3.

      If DTC B1731, GO to  K3. If DTC B1342, INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs. For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K2.
  2. K2 MONITOR THE DSM PIDs AND CHECK FOR CORRECT MEMORY SEAT SWITCH INPUTS
    • Enter the following diagnostic mode on the scan tool: Monitor DSM PIDs: DRIVER SEAT/PEDAL INPUT SWITCH STATUS.

      Monitor DSM PIDs SFNT_SW, SFWD_SW, SREARSW, and SRCL_SW while activating the seat switch in all positions.

    • Do the PID values agree with the switch positions?
    • Yes  : GO to  K9.
    • No  : If smart junction box (SJB) F2.10 (7.5A) fails while operating the seat control switch, DISCONNECT the seat control switch C369 and GO to  K7.

      If SJB F2.10 (7.5A) is OK, GO to K3.

  3. K3 CHECK THE SEAT CONTROL SWITCH
    • Key in OFF position.
    • Disconnect: Seat Control Switch C369.
    • Check the seat control switch. Refer to COMPONENT TESTING .
    • Is the seat control switch OK?
    • Yes  : GO to K4.
    • No  : INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  4. K4 CHECK CIRCUIT 956 (OG/LG) FOR VOLTAGE TO THE SEAT CONTROL SWITCH
    • Measure the voltage between seat control switch C369 pin 5, circuit 956 (OG/LG), harness side and ground.
      Fig 1: Checking Circuit 956 (OG/LG) For Voltage To Seat Control Switch
      G03988748Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to K5.
    • No  : REPAIR the circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  5. K5 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
    • Measure the resistance between seat control switch C369 pin 3, circuit 1205 (BK), harness side and ground.
      Fig 2: Checking Circuit 1205 (BK) For Open
      G03988749Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to K6.
    • No  : REPAIR the circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  6. K6 CHECK CIRCUITS 456, 457, 1463, 1464, 1465, 1466, 1467 AND 1468 FOR A SHORT TO POWER
    • Disconnect: DSM C341b.
    • Key in ON position.
    • Measure the voltage between the following seat control switch C369 pins, harness side and ground.
      CONNECTOR CIRCUIT REFERENCE

      Connector C369 Circuit
      Pin 9 1466 (GY/OG)
      Pin 4 1465 (GY/WH)
      Pin 2 1463 (RD/YE)
      Pin 6 1464 (YE)
      Pin 11 456 (GY)
      Pin 8 457 (GY/BK)
      Pin 12 1467 (GY/YE)
      Pin 1 1468 (GY/LB)
      Fig 3: Checking Circuits 456, 457, 1463, 1464, 1465, 1466, 1467 And 1468 For A Short To Power
      G03988785Courtesy of FORD MOTOR CO.
    • Is voltage indicated?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K7.
  7. K7 CHECK CIRCUITS 456, 457, 1463, 1464, 1465, 1466, 1467 AND 1468 FOR A SHORT TO GROUND
    • Key in OFF position.
    • Measure the resistance between the following seat control switch C369 pins, harness side and ground.
      CONNECTOR CIRCUIT REFERENCE

      Connector C369 Circuit
      Pin 9 1466 (GY/OG)
      Pin 4 1465 (GY/WH)
      Pin 2 1463 (RD/YE)
      Pin 6 1464 (YE)
      Pin 11 456 (GY)
      Pin 8 457 (GY/BK)
      Pin 12 1467 (GY/YE)
      Pin 1 1468 (GY/LB)
      Fig 4: Checking Circuits 456, 457, 1463, 1464, 1465, 1466, 1467 And 1468 For A Short To Ground
      G03988786Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K8.
  8. K8 CHECK CIRCUITS 456, 457, 1463, 1464, 1465, 1466, 1467 AND 1468 FOR AN OPEN
    • Measure the resistance between the following seat control switch C369 pins, harness side and DSM C341b pins, harness side.
      SEAT CONTROL SWITCH SPECIFICATION

      Seat Control Switch C369 Circuit DSM C341b
      Pin 9 1466 (GY/OG) Pin 15
      Pin 4 1465 (GY/WH) Pin 3
      Pin 2 1463 (RD/YE) Pin 14
      Pin 6 1464 (YE) Pin 2
      Pin 11 456 (GY) Pin 17
      Pin 8 457 (GY/BK) Pin 5
      Pin 12 1467 (GY/YE) Pin 4
      Pin 1 1468 (GY/LB) Pin 16

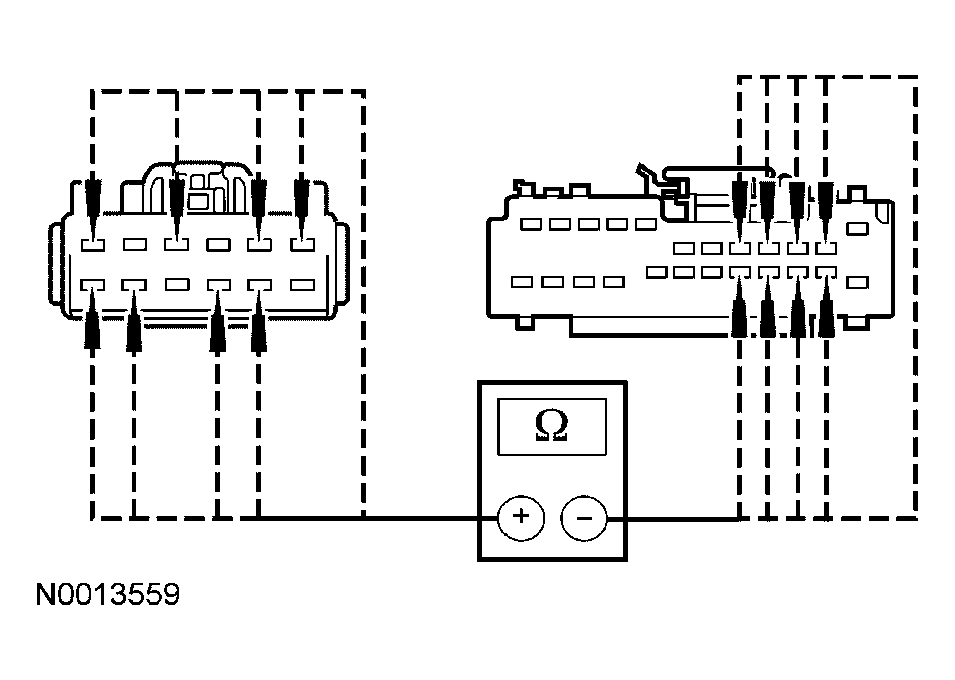

      Fig 5: Checking Circuits 456, 457, 1463, 1464, 1465, 1466, 1467 And 1468 For An Open
      G03988787Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  9. K9 CHECK THE DSM FOR CORRECT OUTPUTS USING A DIAGNOSTIC TOOL AND DSM ACTIVE COMMANDS
    • Enter the following diagnostic mode on the scan tool: Active Commands: DRIVER SEAT OUTPUT CONTROL.

      Toggle the following DSM active commands ON and OFF while monitoring the seat movement:

      • FRONT MOTOR UP
      • FRONT MOTOR DOWN
      • REAR MOTOR UP
      • REAR MOTOR DOWN
      • HORIZONTAL MOTOR FORWARD
      • HORIZONTAL MOTOR BACKWARD
      • RECLINE MOTOR FORWARD
      • RECLINE MOTOR BACKWARD
    • Does the driver seat operate correctly?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : If no seat movement, GO to K10.

      If no front vertical seat movement, GO to  K20.

      If no rear vertical seat movement, GO to  K23.

      If no horizontal seat movement, GO to  K26.

      If no recline seat movement, GO to  K29.

  10. K10 CHECK DSM CIRCUIT 566 (DG) FOR VOLTAGE
    • Key in OFF position.
    • Disconnect: DSM C341a.
    • Measure the voltage between DSM C341a pin 2, circuit 566 (DG), harness side and ground.
      Fig 6: Measuring Voltage Between DSM C341A Pin 2 And Ground
      G03988788Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to K11.
    • No  : REPAIR the circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  11. K11 CHECK CIRCUITS 1205 (BK) AND 1203 (BK/LB) FOR AN OPEN
    • Measure the resistance between DSM C341a pin 1, circuit 1205 (BK), harness side and ground; and between DSM C341c pin 13, circuit 1203 (BK/LB), harness side and ground.
      Fig 7: Checking Circuits 1205 (BK) And 1203 (BK/LB) For An Open
      G03988789Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to K12.
    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  12. K12 CHECK CIRCUITS 1469 (RD/LB) AND 1470 (YE/LB) FOR A SHORT TO GROUND
    • Disconnect: DSM C341b.
    • Measure the resistance between DSM C341b pin 9, circuit 1469 (RD/LB), harness side and ground; and between DSM C341 b pin 23, circuit 1470 (YE/LB), harness side and ground.
      Fig 8: Measuring Resistance Between Driver Seat Module Connector And Ground
      G03966095Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : GO to  K14.
    • No  : GO to K13.
  13. K13 CHECK FRONT HEIGHT POWER SEAT MOTOR CIRCUITS 1469 (RD/LB) AND 1470 (YE/LB) FOR A SHORT TO GROUND
    • Disconnect: Front Height Power Seat Motor C382.
    • Measure the resistance between DSM C341b pin 9, circuit 1469 (RD/LB), harness side and ground; and between DSM C341b pin 23, circuit 1470 (YE/LB), harness side and ground.
      Fig 9: Measuring Resistance Between Driver Seat Module Connector And Ground
      G03966095Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  14. K14 CHECK CIRCUITS 1474 (RD/LG) AND 1473 (YE/LG) FOR A SHORT TO GROUND
    • Measure the resistance between DSM C341b pin 8, circuit 1474 (RD/LG), harness side and ground; and between DSM C341b pin 22, circuit 1473 (YE/LG), harness side and ground.
      Fig 10: Measuring Resistance Between DSM C341B Pin 8 And Ground
      G03988792Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : GO to  K16.
    • No  : GO to K15.
  15. K15 CHECK THE REAR HEIGHT POWER SEAT MOTOR CIRCUITS 1474 (RD/LG) AND 1473 (YE/LG) FOR A SHORT TO GROUND
    • Disconnect: Rear Height Power Seat Motor C363.
    • Measure the resistance between DSM C341b pin 8, circuit 1474 (RD/LG), harness side and ground; and between DSM C341b pin 22, circuit 1473 (YE/LG), harness side and ground.
      Fig 11: Measuring Resistance Between DSM C341B Pin 8 And Ground
      G03988792Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  16. K16 CHECK CIRCUITS 1472 (YE/WH) AND 1471 (RD/WH) FOR A SHORT TO GROUND
    • Measure the resistance between DSM C341b pin 10, circuit 1472 (YE/WH), harness side and ground; and between DSM C341b pin 12, circuit 1471 (RD/WH), harness side and ground.
      Fig 12: Measuring Resistance Between DSM C341B Pin 10 Harness Side And Ground
      G03988794Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : GO to  K18.
    • No  : GO to K17.
  17. K17 CHECK THE HORIZONTAL POWER SEAT MOTOR CIRCUITS 1472 (YE/WH) AND 1471 (RD/WH) FOR A SHORT TO GROUND
    • Disconnect: Horizontal Power Seat Motor C362.
    • Measure the resistance between DSM C341b pin 10, circuit 1472 (YE/WH), harness side and ground; and between DSM C341b pin 12, circuit 1471 (RD/WH), harness side and ground.
      Fig 13: Measuring Resistance Between DSM C341B Pin 10 Harness Side And Ground
      G03988794Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  18. K18 CHECK CIRCUITS 1947 (DG/WH) AND 1948 (LB/WH) FOR A SHORT TO GROUND
    • Measure the resistance between DSM C341b pin 11, circuit 1947 (DG/WH), harness side and ground; and between DSM C341b pin 21, circuit 1948 (LB/WH), harness side and ground.
      Fig 14: Checking Circuits 1947 (DG/WH) And 1948 (LB/WH) For A Short To Ground
      G03988796Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K19.
  19. K19 CHECK THE DRIVER POWER SEAT RECLINER MOTOR CIRCUITS 1947 (DG/WH) AND 1948 (LB/WH) FOR A SHORT TO GROUND
    • Disconnect: Driver Power Seat Recliner Motor C3187.
    • Measure the resistance between DSM C341b pin 11, circuit 1947 (DG/WH), harness side and ground; and between DSM C341b pin 21, circuit 1948 (LB/WH), harness side and ground.
      Fig 15: Measuring Resistance Between DSM C341B Pin 11 And Ground
      G03988796Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes  : INSTALL a new driver seat recliner assembly. REFER to SEAT RECLINER . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  20. K20 CHECK THE FRONT HEIGHT POWER SEAT MOTOR FOR CORRECT OPERATION
    • Key in OFF position.
    • Disconnect: Front Height Power Seat Motor C382.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: DSM Active Command: DRIVER SEAT OUTPUT CONTROL.
    • Measure the voltage between front height power seat motor C382 pin 2, circuit 1469 (RD/LB) and C382 pin 1, circuit 1470 (YE/LB), harness side while toggling DSM active commands FRONT MOTOR UP and FRONT MOTOR DOWN, ON and OFF.
      Fig 16: Measuring Voltage Between Front Height Power Seat Motor C382 Pin 2 And C382 Pin 1
      G03988754Courtesy of FORD MOTOR CO.
    • Is voltage present when the motor is commanded ON and no voltage present when commanded OFF?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K21.
  21. K21 CHECK CIRCUITS 1469 (RD/LB) AND 1470 (YE/LB) FOR A SHORT TO POWER
    • Key in OFF position.
    • Disconnect: DSM C341b.
    • Key in ON position.
    • Measure the voltage between DSM C341b pin 9, circuit 1469 (RD/LB), harness side and ground; and between DSM C341b pin 23, circuit 1470 (YE/LB), harness side and ground.
      Fig 17: Measuring Voltage Between DSM C341B Pin 9 And Ground
      G03988799Courtesy of FORD MOTOR CO.
    • Is voltage indicated?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K22.
  22. K22 CHECK CIRCUITS 1469 (RD/LB) AND 1470 (YE/LB) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between DSM C341b pin 9, circuit 1469 (RD/LB), harness side and front height power seat motor C382 pin 2, circuit 1469 (RD/LB), harness side; and between DSM C341b pin 23, circuit 1470 (YE/LB), harness side and front height power seat motor C382 pin 1 circuit 1470 (YE/LB), harness side.
      Fig 18: Measuring Resistance Between DSM C341B Pin 9 And Front Height Power Seat Motor
      G03988800Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  23. K23 CHECK THE REAR HEIGHT MOTOR FOR CORRECT OPERATION
    • Key in OFF position.
    • Disconnect: Rear Height Power Seat Motor C363.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: DSM Active Command: DRIVER SEAT OUTPUT CONTROL.
    • Measure the voltage between rear height power seat motor C363 pin 2, circuit 1474 (RD/LG), harness side and C363 pin 1, circuit 1473 (YE/LG), harness side while toggling DSM active commands REAR MOTOR UP and REAR MOTOR DOWN, ON and OFF.
      Fig 19: Measuring Voltage Between Rear Height Power Seat Motor C363 Pin 2 And C363 Pin 1
      G03988754Courtesy of FORD MOTOR CO.
    • Is voltage present when the motor is commanded ON and no voltage present when commanded OFF?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K24.
  24. K24 CHECK CIRCUITS 1474 (RD/LG) AND 1473 (YE/LG) FOR A SHORT TO POWER
    • Key in OFF position.
    • Disconnect: DSM C341b.
    • Key in ON position.
    • Measure the voltage between DSM C341b pin 8, circuit 1474 (RD/LG), harness side and ground; and between DSM C341b pin 22, circuit 1473 (YE/LG), harness side and ground.
      Fig 20: Measuring Voltage Between DSM C341B Pin 8, Circuit And Ground
      G03988802Courtesy of FORD MOTOR CO.
    • Is voltage indicated?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K25.
  25. K25 CHECK CIRCUITS 1474 (RD/LG) AND 1473 (YE/LG) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between DSM C341b pin 8, circuit 1474 (RD/LG), harness side and rear height power seat motor C363 pin 2, circuit 1474 (RD/LG), harness side; and between DSM C341b pin 22, circuit 1473 (YE/LG), harness side and rear height power seat motor C363 pin 1, circuit 1473 (YE/LG), harness side.
      Fig 21: Measuring Resistance Between DSM C341B Pin 8 And Rear Height Power Seat Motor C363
      G03988803Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  26. K26 CHECK THE HORIZONTAL MOTOR FOR CORRECT OPERATION
    • Key in OFF position.
    • Disconnect: Horizontal Power Seat Motor C362.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: DSM Active Command: DRIVER SEAT OUTPUT CONTROL.
    • Measure the voltage between horizontal power seat motor C362 pin 2, circuit 1472 (YE/WH) and C362 pin 1, circuit 1471 (RD/WH), harness side while toggling DSM active commands HORIZONTAL MOTOR FORWARD and HORIZONTAL MOTOR BACKWARD, ON and OFF.
      Fig 22: Measuring Voltage Between Connector Terminals
      G03988759Courtesy of FORD MOTOR CO.
    • Is voltage present when the motor is commanded ON and no voltage present when commanded OFF?
    • Yes  : INSTALL a new driver seat track assembly. REFER to SEAT TRACK - FRONT . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K27.
  27. K27 CHECK CIRCUITS 1472 (YE/WH) AND 1471 (RD/WH) FOR A SHORT TO POWER
    • Key in OFF position.
    • Disconnect: DSM C341b.
    • Key in ON position.
    • Measure the voltage between DSM C341b pin 10, circuit 1472 (YE/WH), harness side and ground; and between DSM C341b pin 12, circuit 1471 (RD/WH), harness side and ground.
      Fig 23: Measuring Voltage Between DSM C341B Pin 10 And Ground
      G03988805Courtesy of FORD MOTOR CO.
    • Is voltage indicated?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K28.
  28. K28 CHECK CIRCUITS 1472 (YE/WH) AND 1471 (RD/WH) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between DSM C341b pin 10, circuit 1472 (YE/WH), harness side and horizontal power seat motor C362 pin 2, circuit 1472 (YE/WH), harness side; and between DSM C341b pin 12, circuit 1471 (RD/WH), harness side and horizontal power seat motor C362 pin 1, circuit 1471 (RD/WH), harness side.
      Fig 24: Checking Circuits 1472 (YE/WH) And 1471 (RD/WH) For An Open
      G03988806Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

  29. K29 CHECK THE DRIVER SEAT POWER RECLINER MOTOR FOR CORRECT OPERATION
    • Key in OFF position.
    • Disconnect: Driver Seat Power Recliner Motor C3187.
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: DSM Active Command: DRIVER SEAT OUTPUT CONTROL.
    • Measure the voltage between driver seat power recliner motor C3187 pin 1, circuit 1947 (DG/WH) and C3187 pin 2, circuit 1948 (LB/WH), harness side while toggling DSM active commands RECLINE MOTOR FORWARD and RECLINE MOTOR BACKWARD, ON and OFF.
      Fig 25: Measuring Voltage Between Connector Terminals
      G03988759Courtesy of FORD MOTOR CO.
    • Is voltage present when the motor is commanded ON and no voltage present when commanded OFF?
    • Yes  : INSTALL a new driver seat recliner assembly. REFER to SEAT RECLINER . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K30.
  30. K30 CHECK CIRCUITS 1947 (DG/WH) AND 1948 (LB/WH) FOR A SHORT TO POWER
    • Key in OFF position.
    • Disconnect: DSM C341b.
    • Key in ON position.
    • Measure the voltage between DSM C341b pin 11, circuit 1947 (DG/WH), harness side and ground; and between DSM C341b pin 21, circuit 1948 (LB/WH), harness side and ground.
      Fig 26: Measuring Voltage Between DSM C341B Pin 11 Harness Side And Ground And Between DSM C341B Pin 21
      G03988808Courtesy of FORD MOTOR CO.
    • Is voltage indicated?
    • Yes  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : GO to K31.
  31. K31 CHECK CIRCUITS 1947 (DG/WH) AND 1948 (LB/WH) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between DSM C341b pin 11, circuit 1947 (DG/WH), harness side and recliner power seat motor C3187 pin 1, circuit 1947 (DG/WH), harness side; and between DSM C341b pin 21, circuit 1948 (LB/WH), harness side and recliner power seat motor C3187 pin 2, circuit 1948 (LB/WH), harness side.
      Fig 27: Measuring Resistance Between DSM C341B Pin 11 And Recliner Power Seat Motor C3187 Pin 1
      G03988809Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : INSTALL a new DSM. REFER to MULTIFUNCTION ELECTRONIC MODULES . CONFIGURE the DSM. REFER to MODULE CONFIGURATION . REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

    • No  : REPAIR the affected circuit. REPEAT the self-test. CLEAR the DTCs.

      For vehicles equipped with seat side air bags, DISCONNECT the battery ground cable. DISCONNECT the restraint system diagnostic tool from driver seat side air bag module C3226. CONNECT driver seat side air bag module C3226. REPOWER the SRS. REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

scientia non olet · About LEMON Manuals
