Front End Body Panels - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

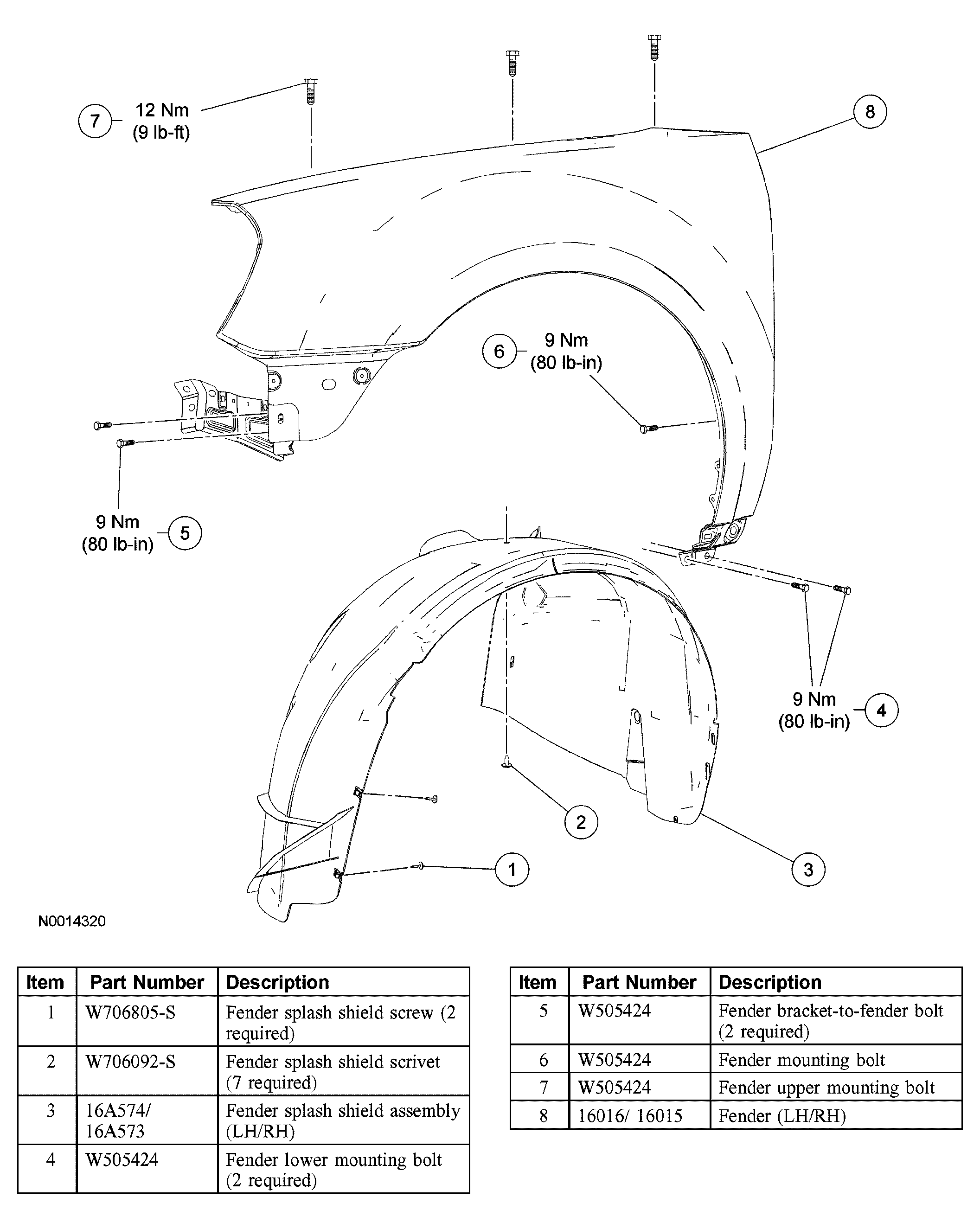

Fig 1: Exploded View Of Front End Body Panels (Five Hundred, Montego)

Courtesy of FORD MOTOR CO.

NOTE: RH shown, LH similar

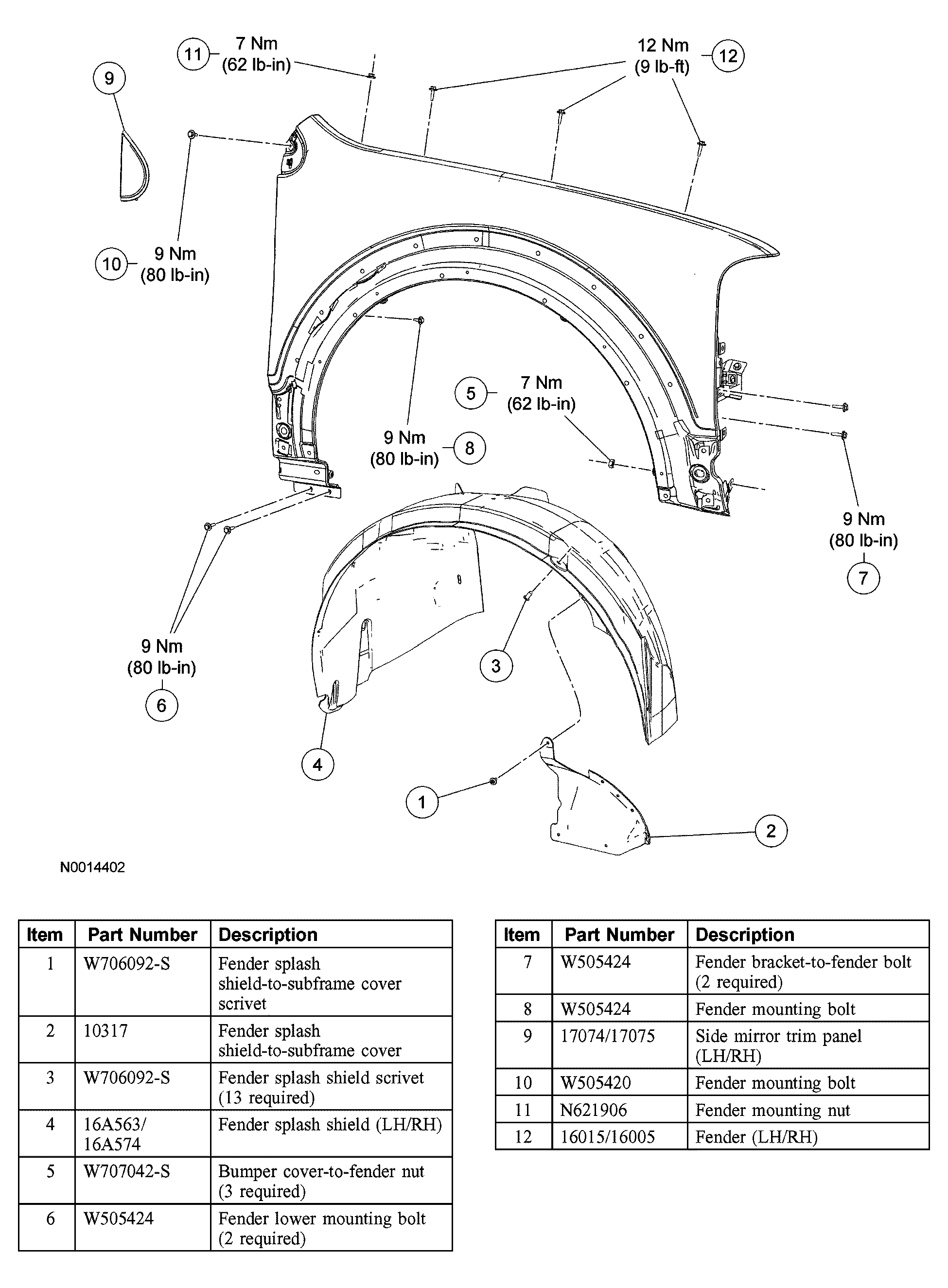

Fig 2: Exploded View Of Front End Body Panels (Freestyle)

Courtesy of FORD MOTOR CO.

For additional information, refer to the PROCEDURES .
