Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Release the rear quarter trim panel moulding retaining clips.
    • Starting at the front lower portion of the rear quarter trim panel, moving rearward along the rear quarter trim panel.

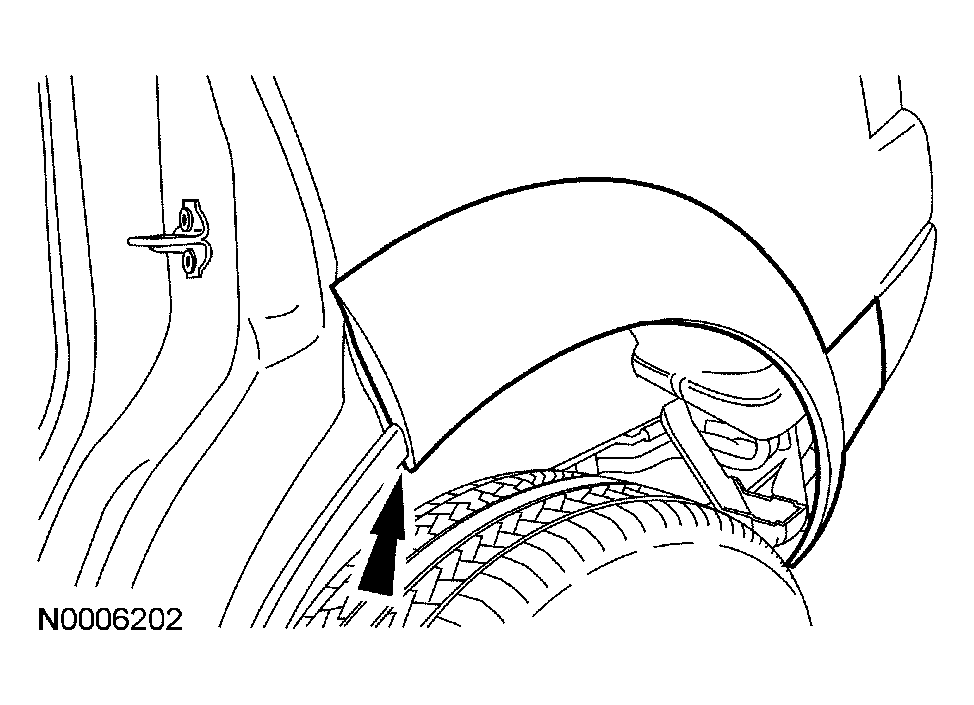

      Fig 1: Removing/Installing Rear Quarter Trim Panel Moulding Retaining Clips
      G03988626Courtesy of FORD MOTOR CO.
  3. Remove the rear quarter trim panel moulding.
  4. To install, reverse the removal procedure.
    • It is necessary to install new rear quarter trim panel moulding retaining clips anytime the rear quarter trim panel moulding is removed.
