Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fender splash shield. For additional information, refer to FRONT END BODY PANELS .
  2. Release the fender moulding retaining clips from the fender.
    • Start at the rear lower portion of the fender moulding, moving forward along the fender.

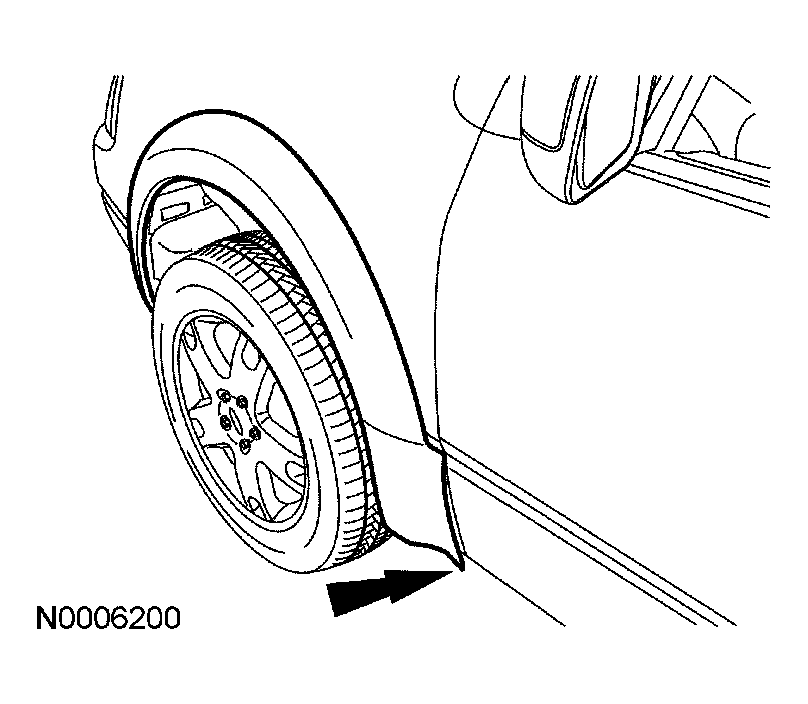

      Fig 1: Removing/Installing Fender Splash Shield
      G03988623Courtesy of FORD MOTOR CO.
  3. Remove the fender moulding.
  4. To install, reverse the removal procedure.
    • It is necessary to install new fender moulding retaining clips anytime the fender moulding is removed.
