Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

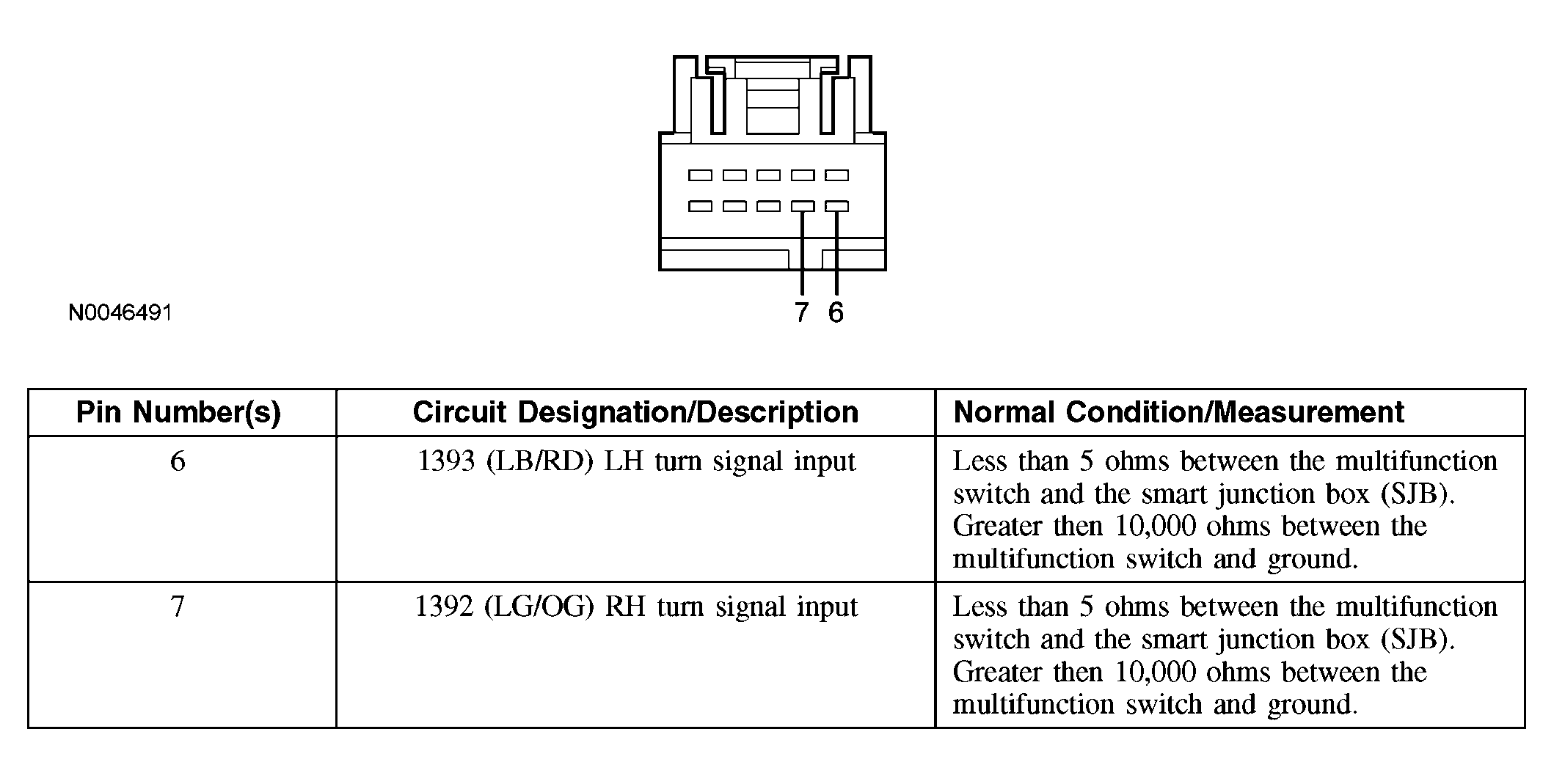

Fig 1: Connector Circuit Reference - Multifunction Switch Connector Pin C202A

Courtesy of FORD MOTOR CO.

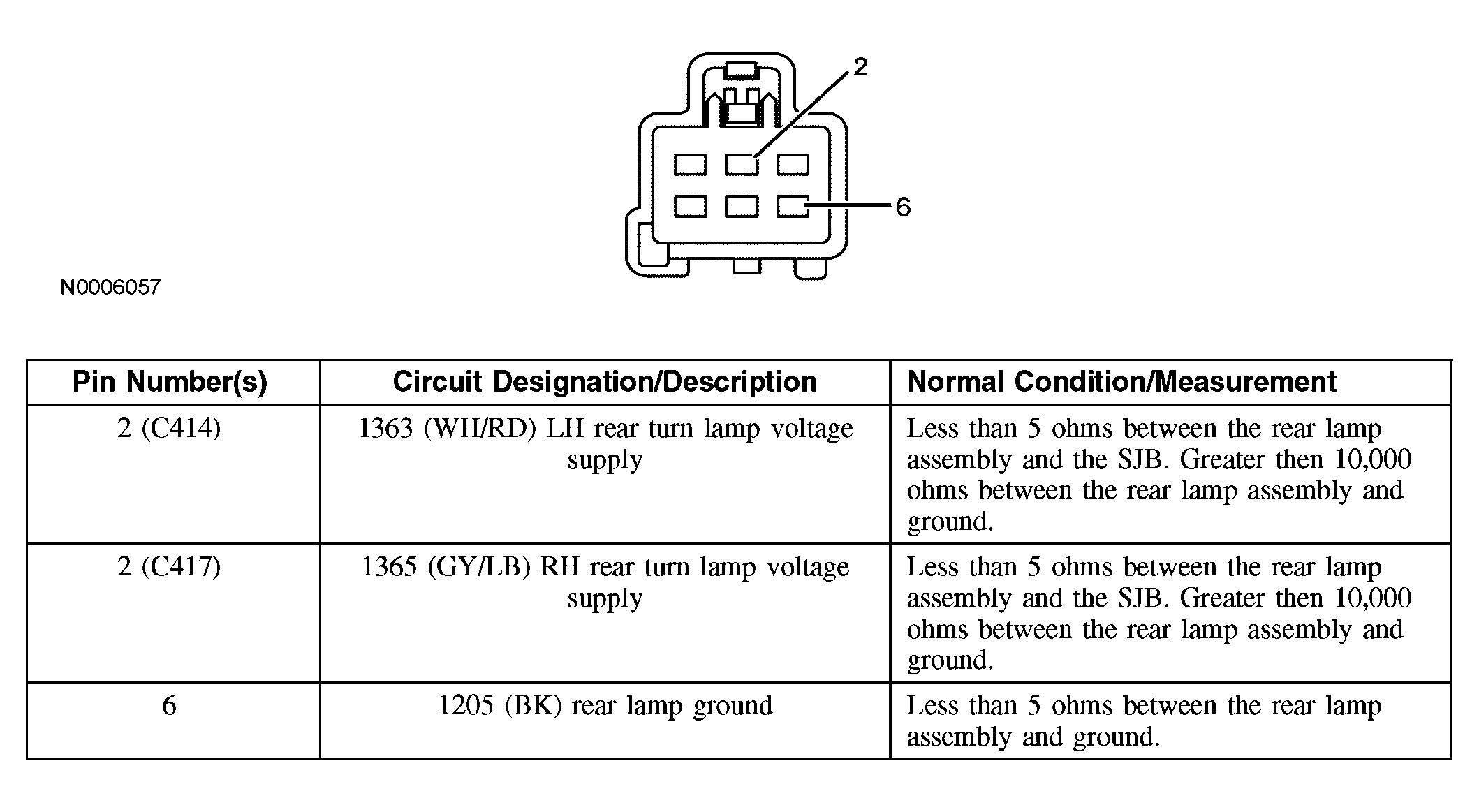

Fig 2: Connector Circuit Reference - LH Rear Lamp Assembly C414, RH Rear Lamp Assembly C417

Courtesy of FORD MOTOR CO.

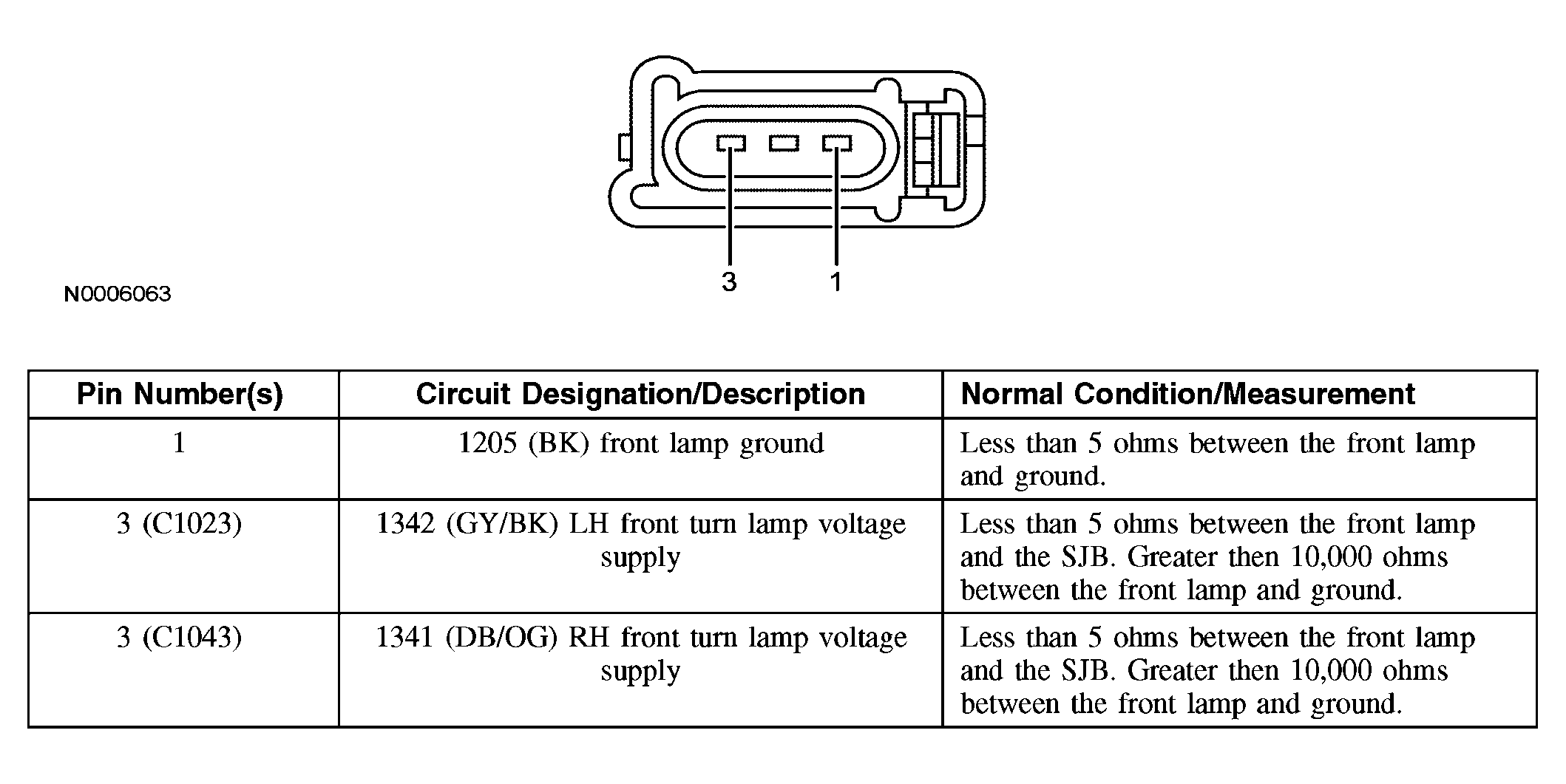

Fig 3: Connector Circuit Reference - LH Front Lamp C1023, RH Front Lamp C1043

Courtesy of FORD MOTOR CO.

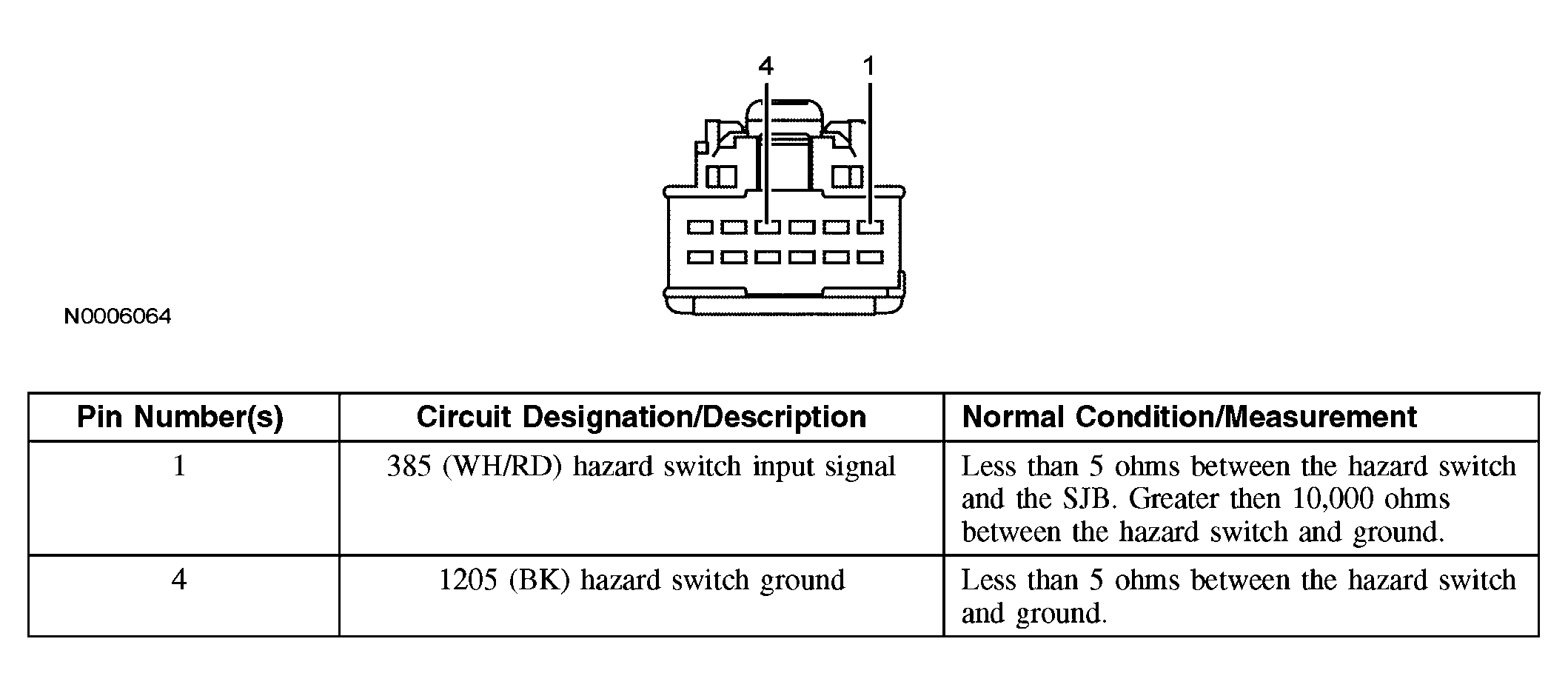

Fig 4: Connector Circuit Reference - Hazard Switch C2114

Courtesy of FORD MOTOR CO.

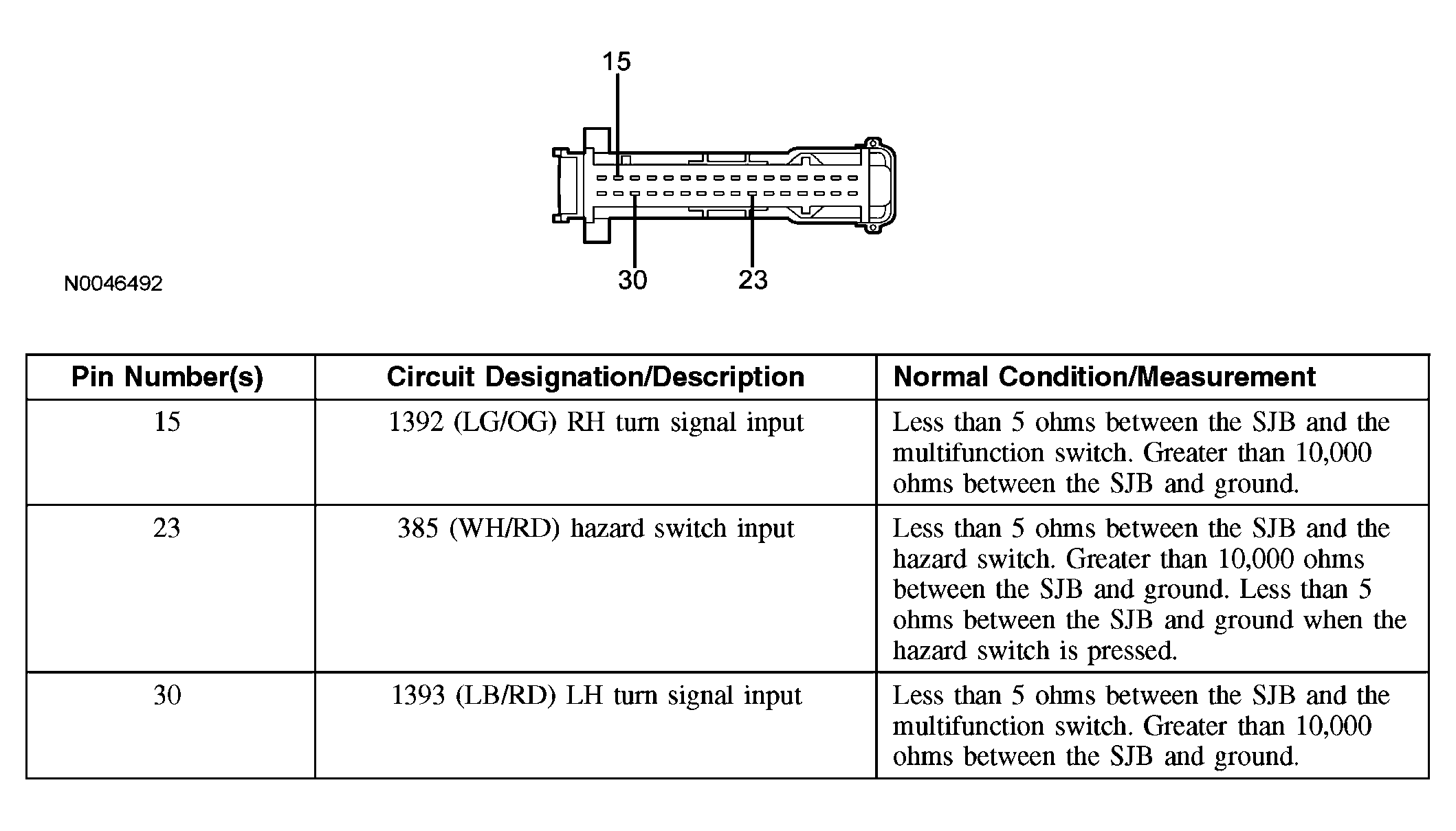

Fig 5: Connector Circuit Reference - SJB C2280A

Courtesy of FORD MOTOR CO.

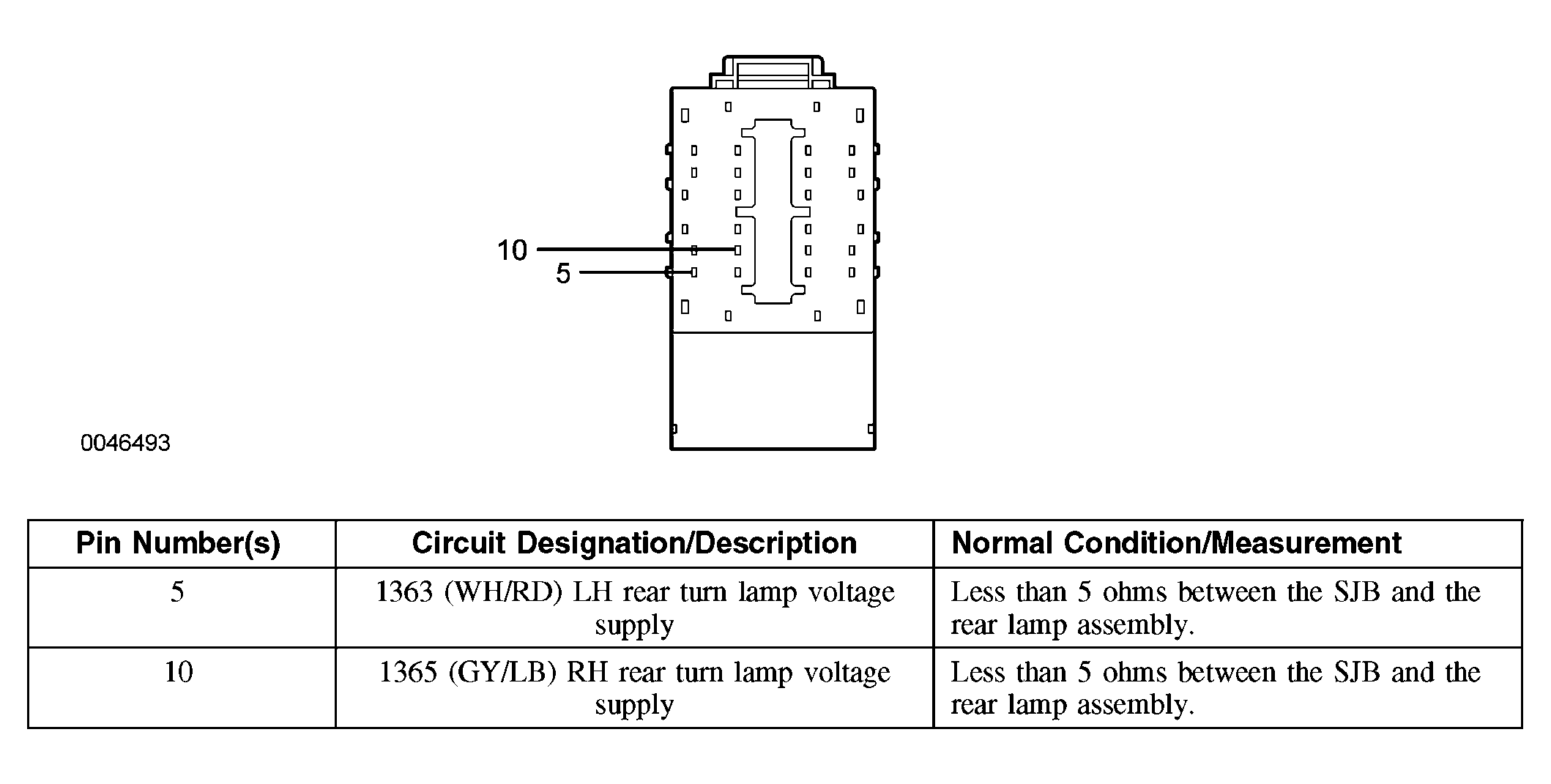

Fig 6: Connector Circuit Reference - SJB C2280D

Courtesy of FORD MOTOR CO.

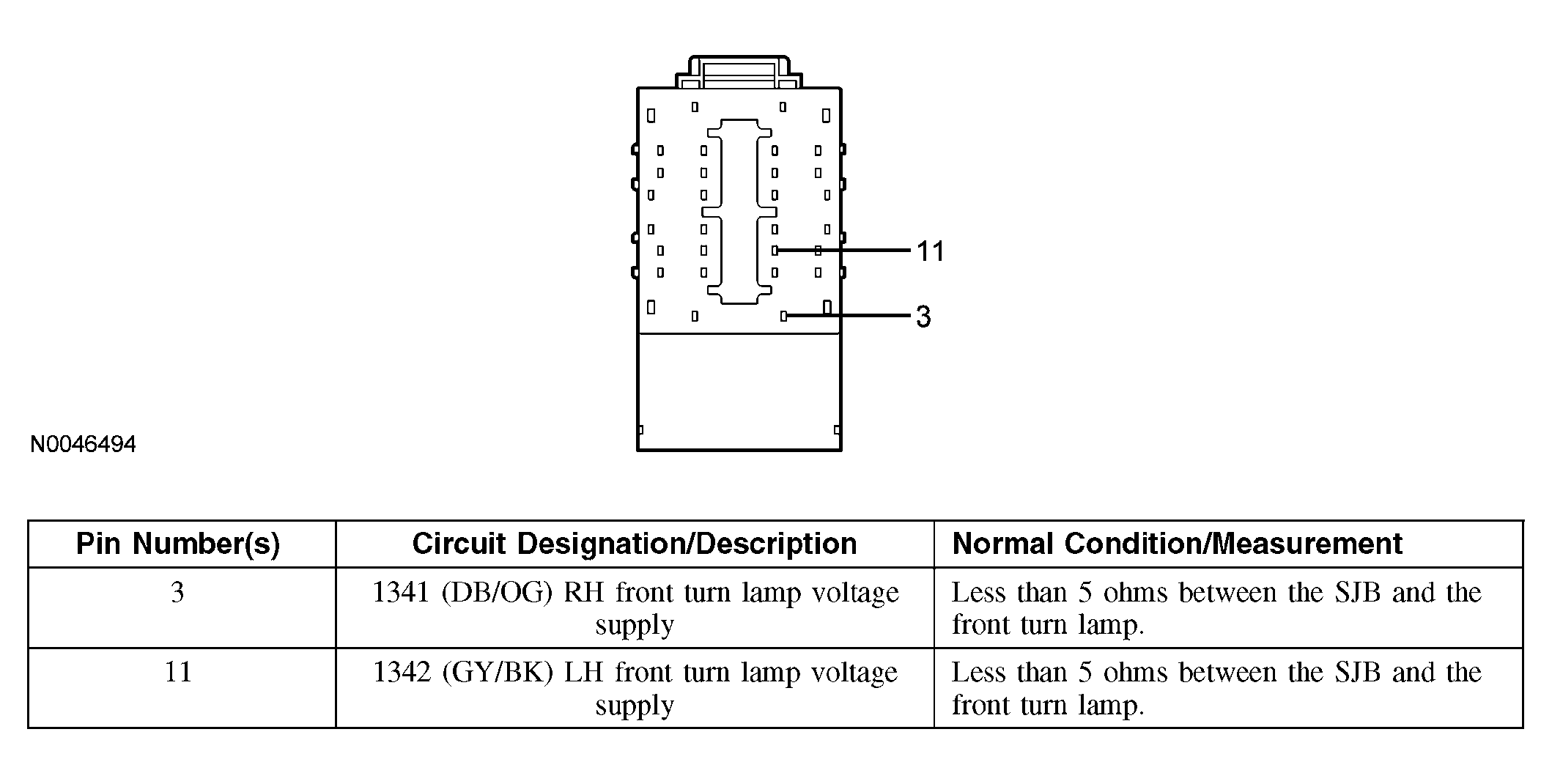

Fig 7: Connector Circuit Reference - SJB C2280E

Courtesy of FORD MOTOR CO.
