Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

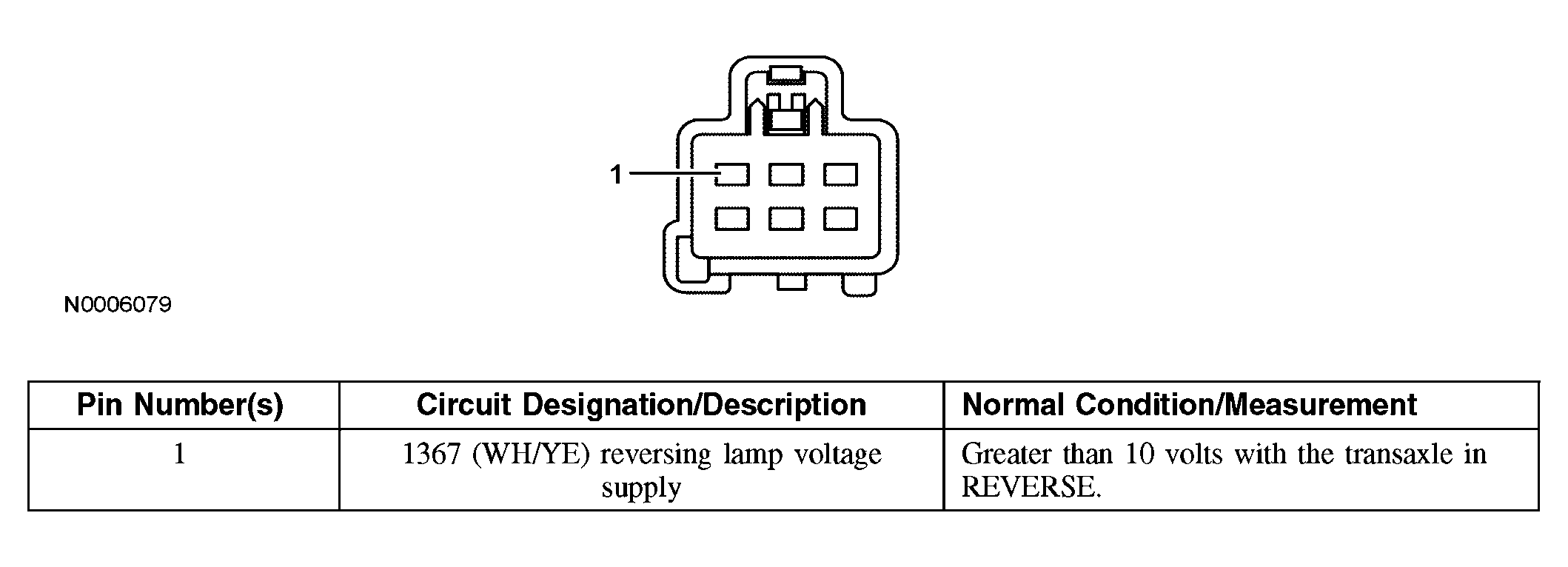

Fig 1: Connector Circuit Reference - LH Rear Lamp Assembly C414, RH Rear Lamp Assembly C417
G03992851Courtesy of FORD MOTOR CO.

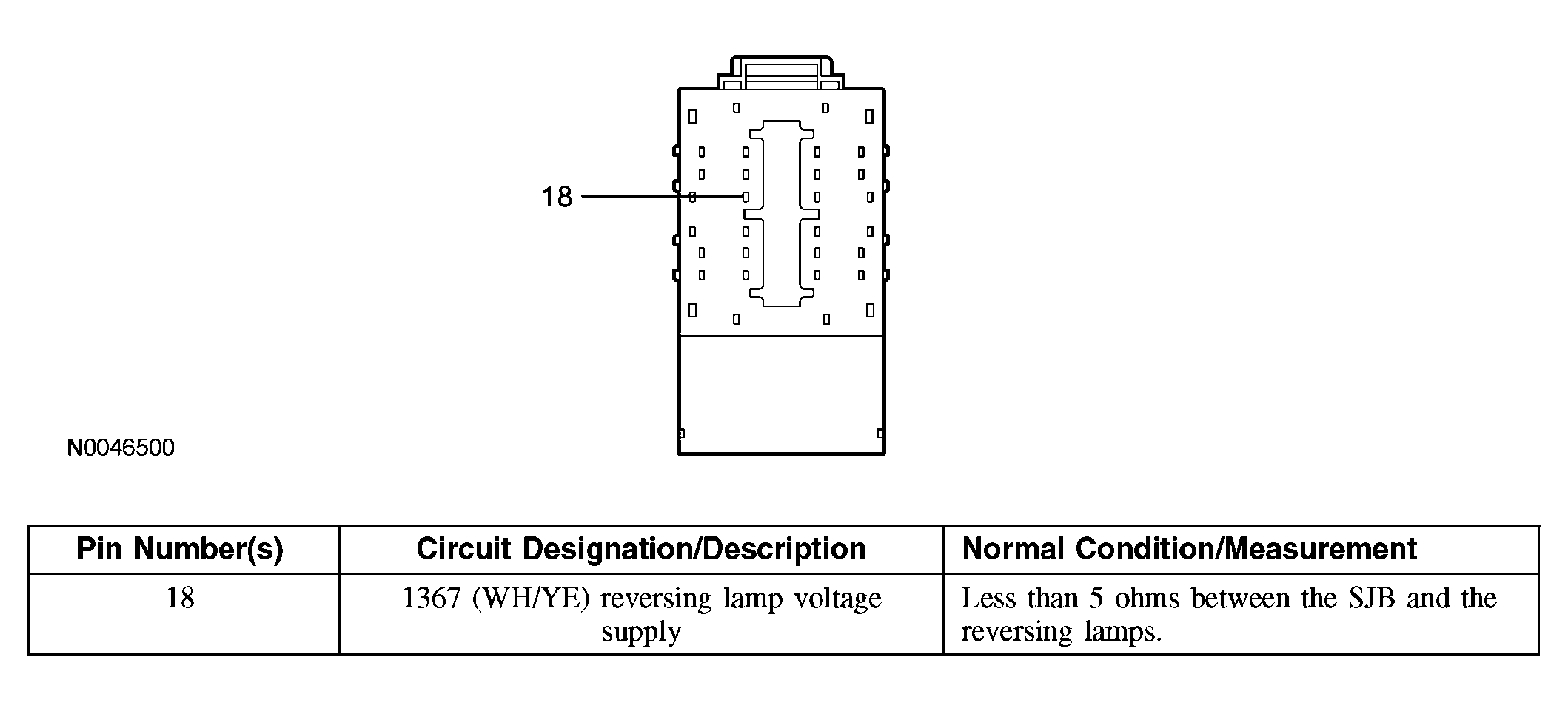

Fig 2: Connector Circuit Reference - Smart Junction Box (SJB) C2280E
G03992852Courtesy of FORD MOTOR CO.
