Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

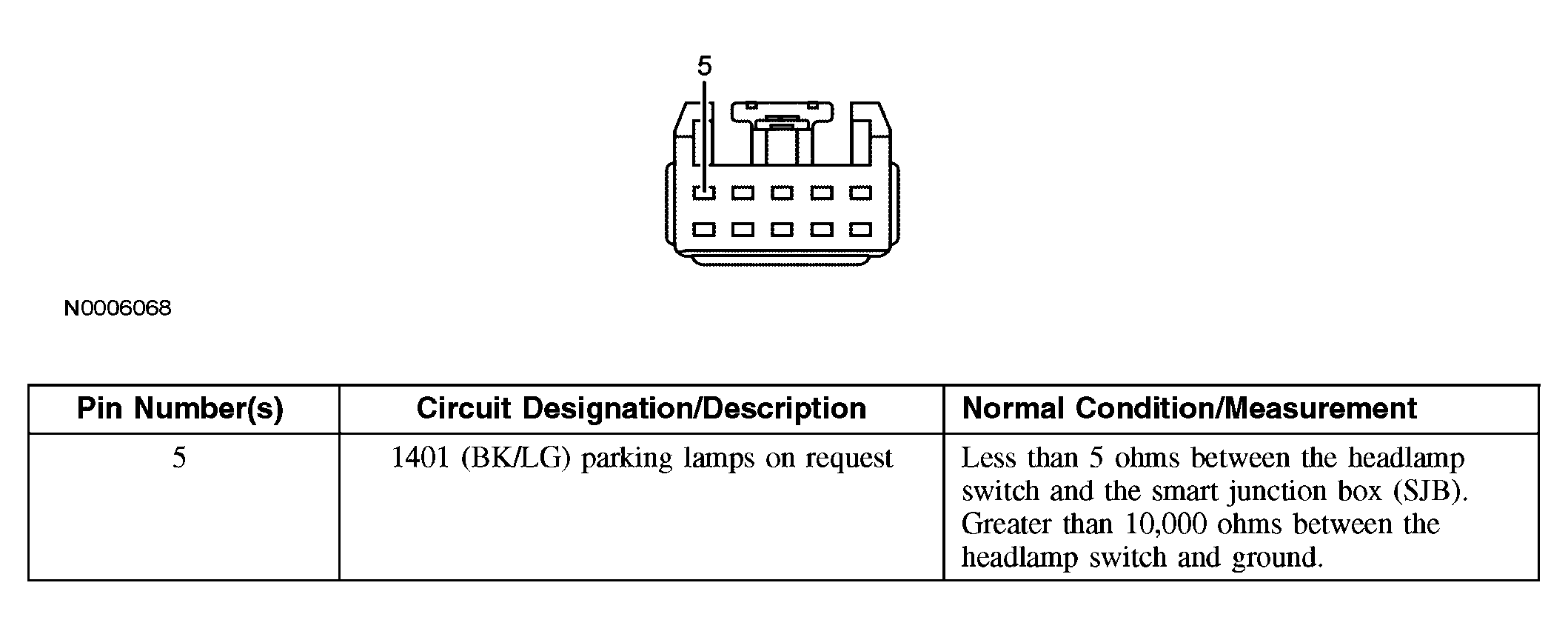

Fig 1: Connector Circuit Reference - Headlamp Switch C205

Courtesy of FORD MOTOR CO.

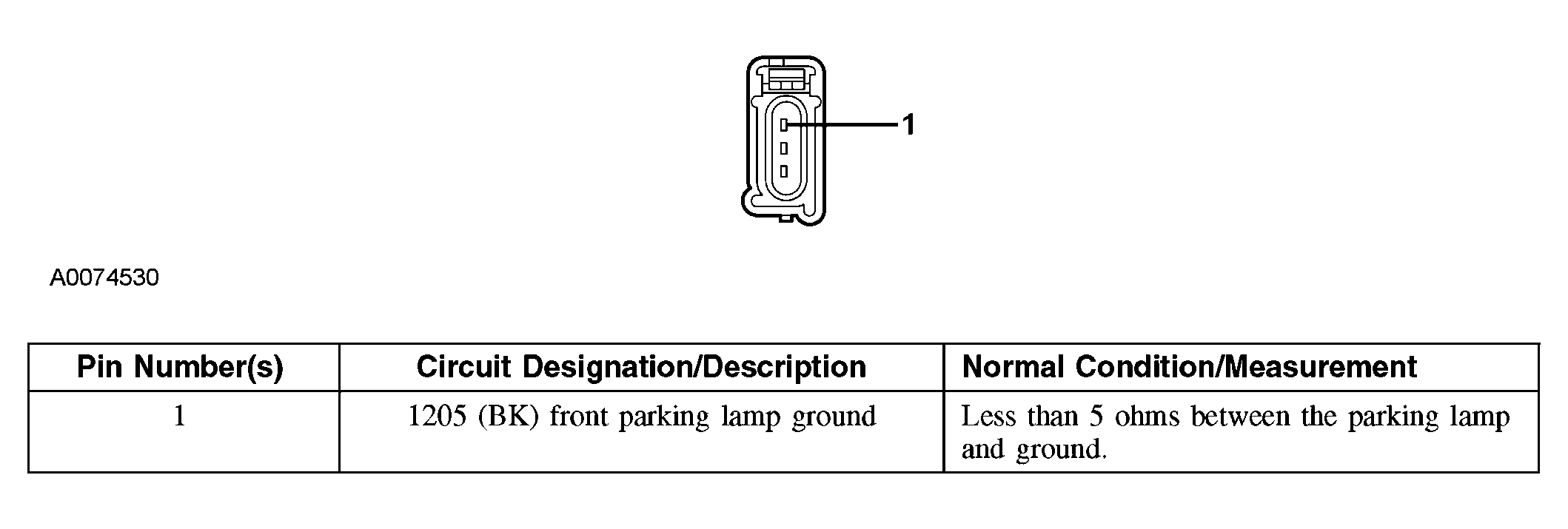

Fig 2: Connector Circuit Reference - LH Front Parking Lamp C1023, RH Front Parking Lamp C1043

Courtesy of FORD MOTOR CO.

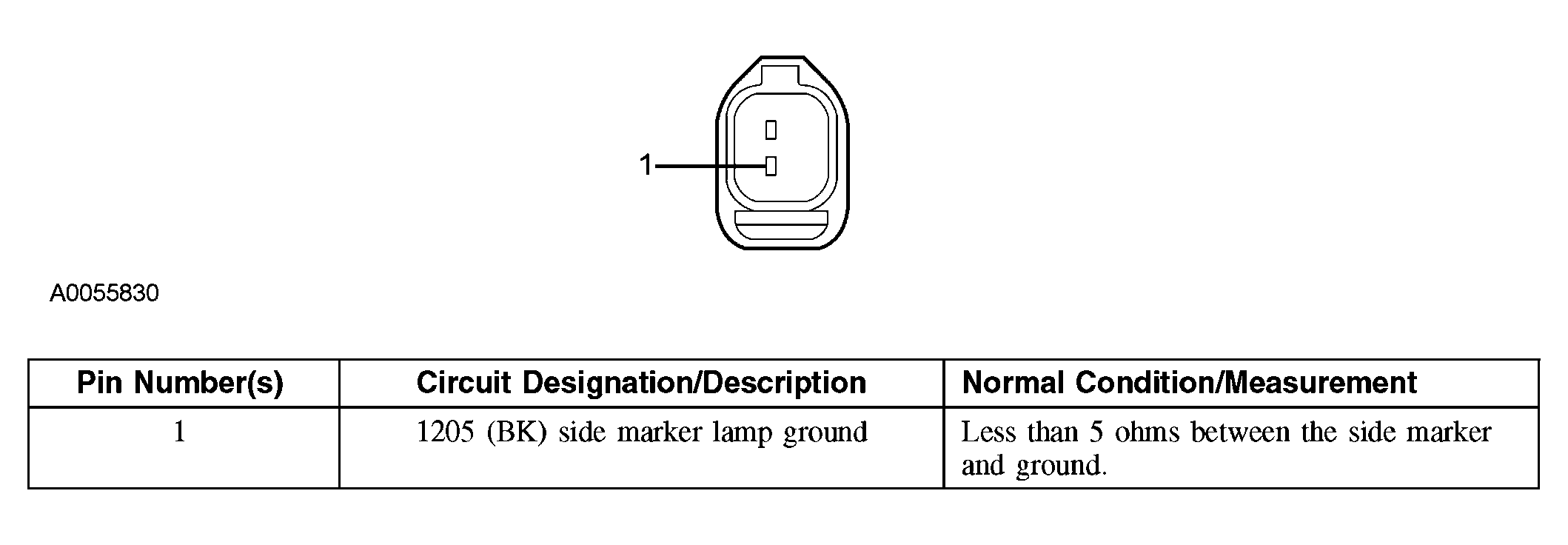

Fig 3: Connector Circuit Reference - LH Side Marker C1127, RH Side Marker C1126

Courtesy of FORD MOTOR CO.

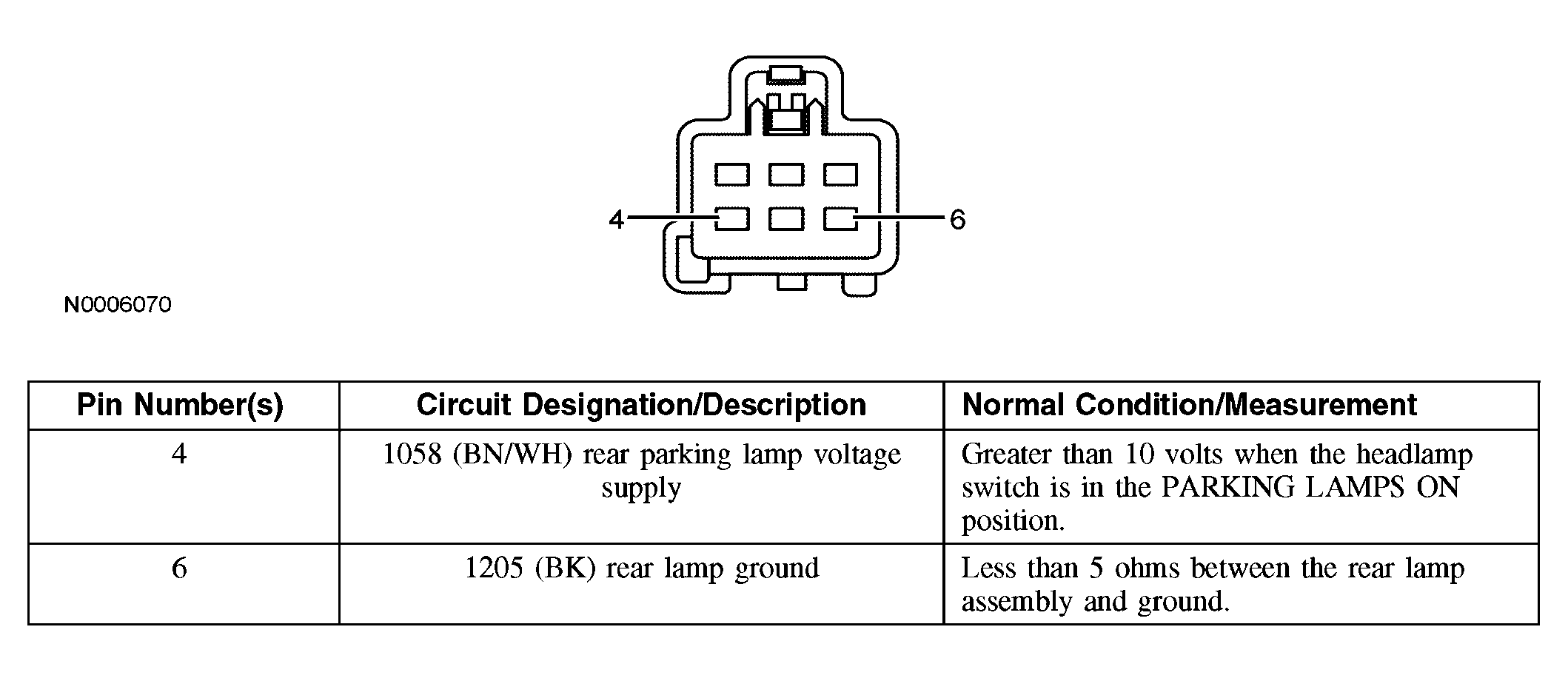

Fig 4: Connector Circuit Reference - LH Rear Lamp Assembly C414, RH Rear Lamp Assembly C417

Courtesy of FORD MOTOR CO.

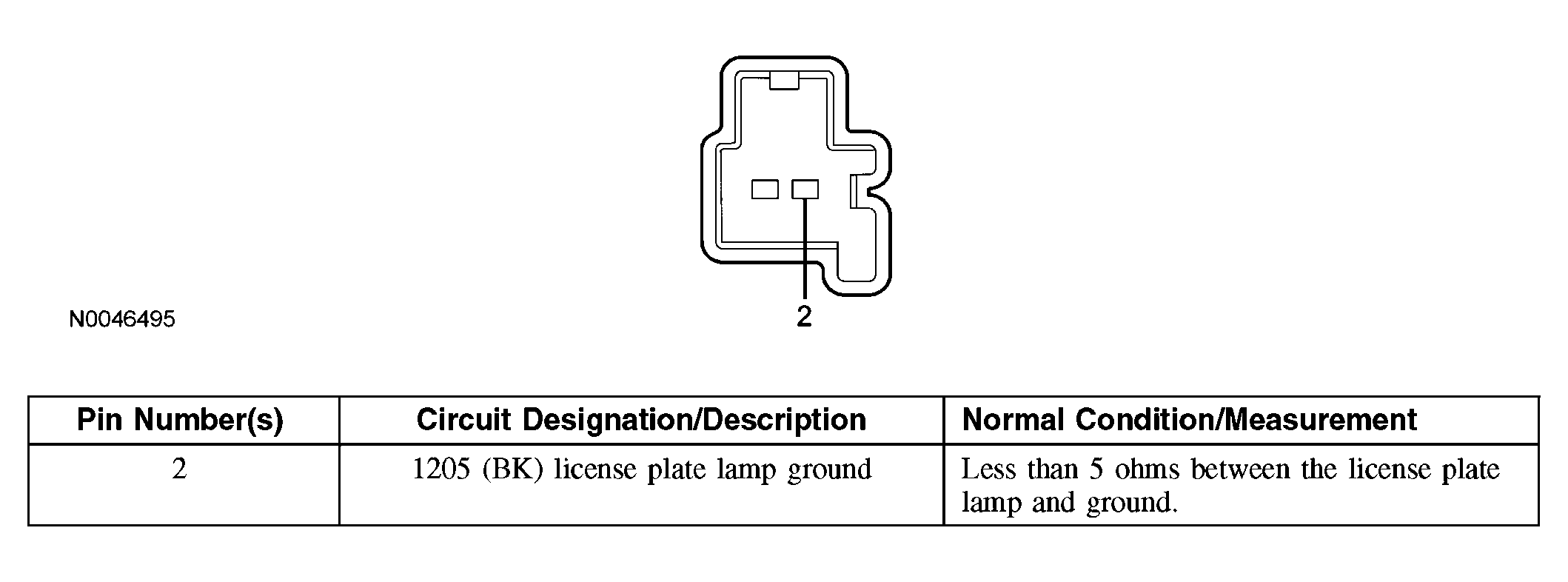

Fig 5: Connector Circuit Reference - LH License Plate Lamp C452, RH License Plate Lamp C462 (Five Hundred, Montego)

Courtesy of FORD MOTOR CO.

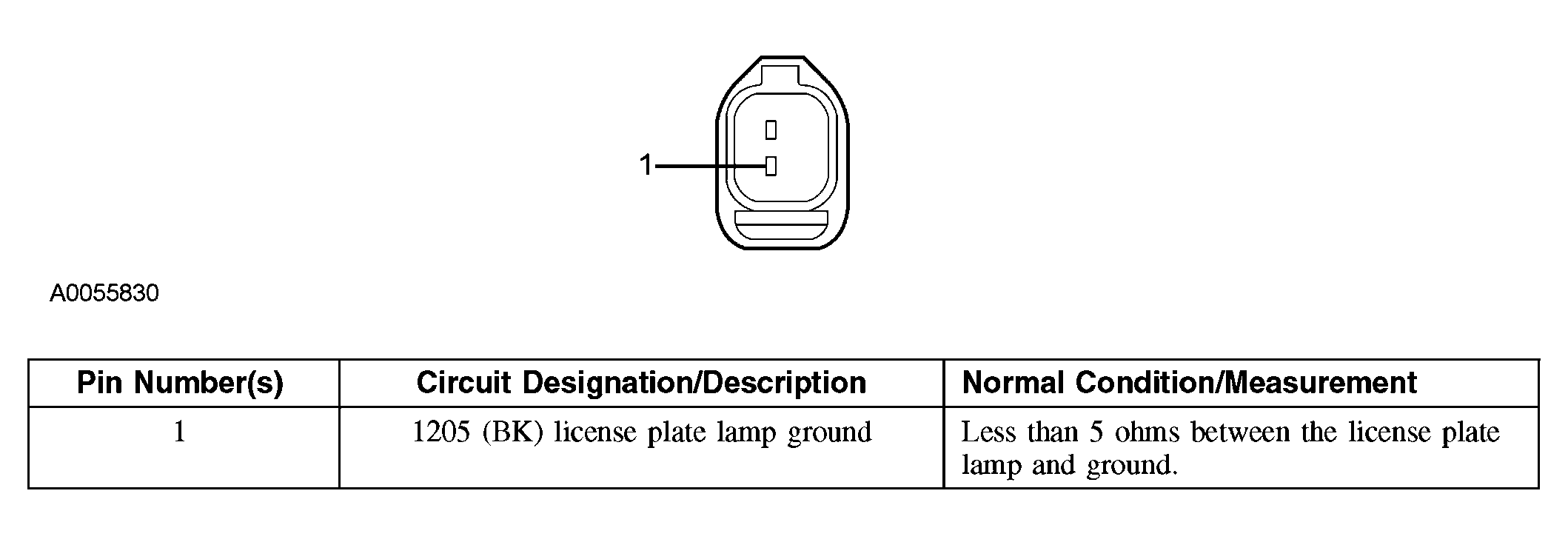

Fig 6: Connector Circuit Reference - License Plate Lamp C490 (Freestyle)

Courtesy of FORD MOTOR CO.

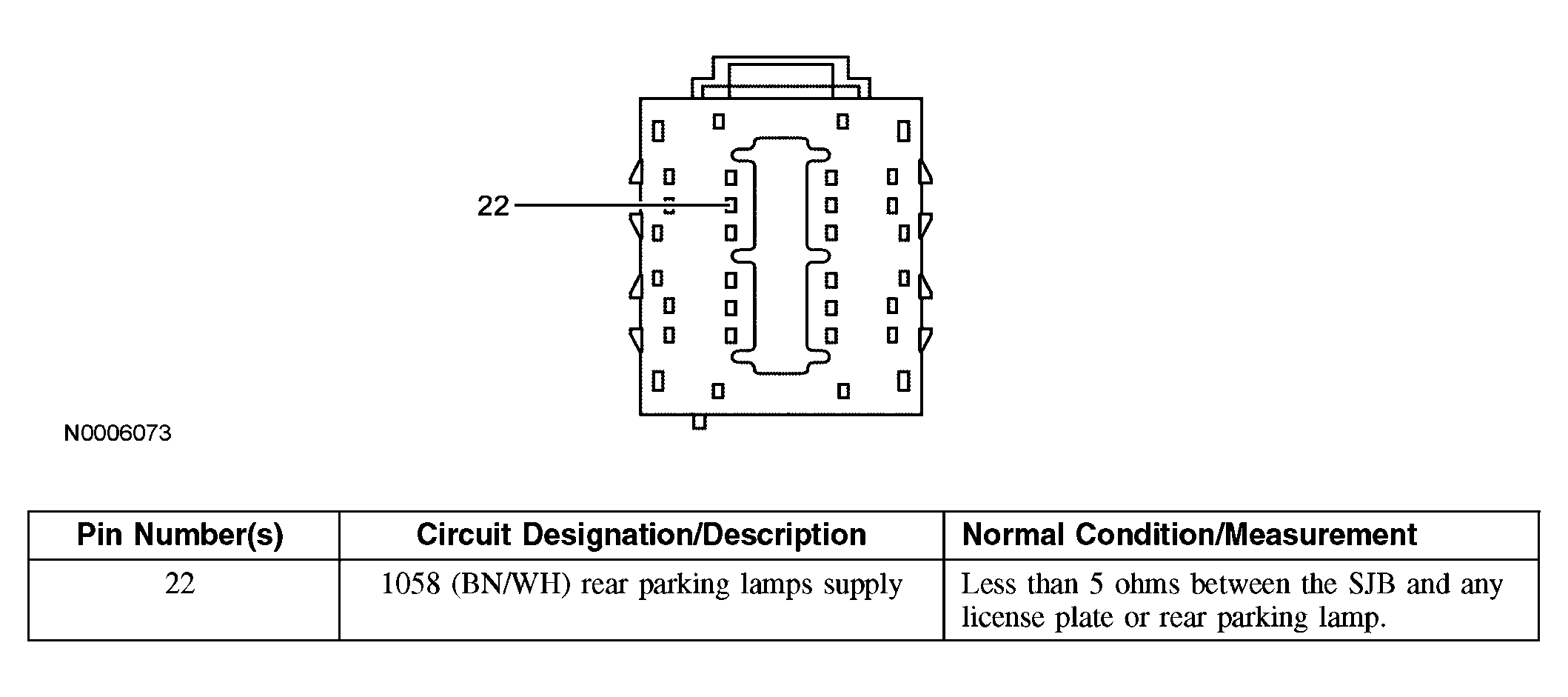

Fig 7: Connector Circuit Reference - SJB C2280A

Courtesy of FORD MOTOR CO.

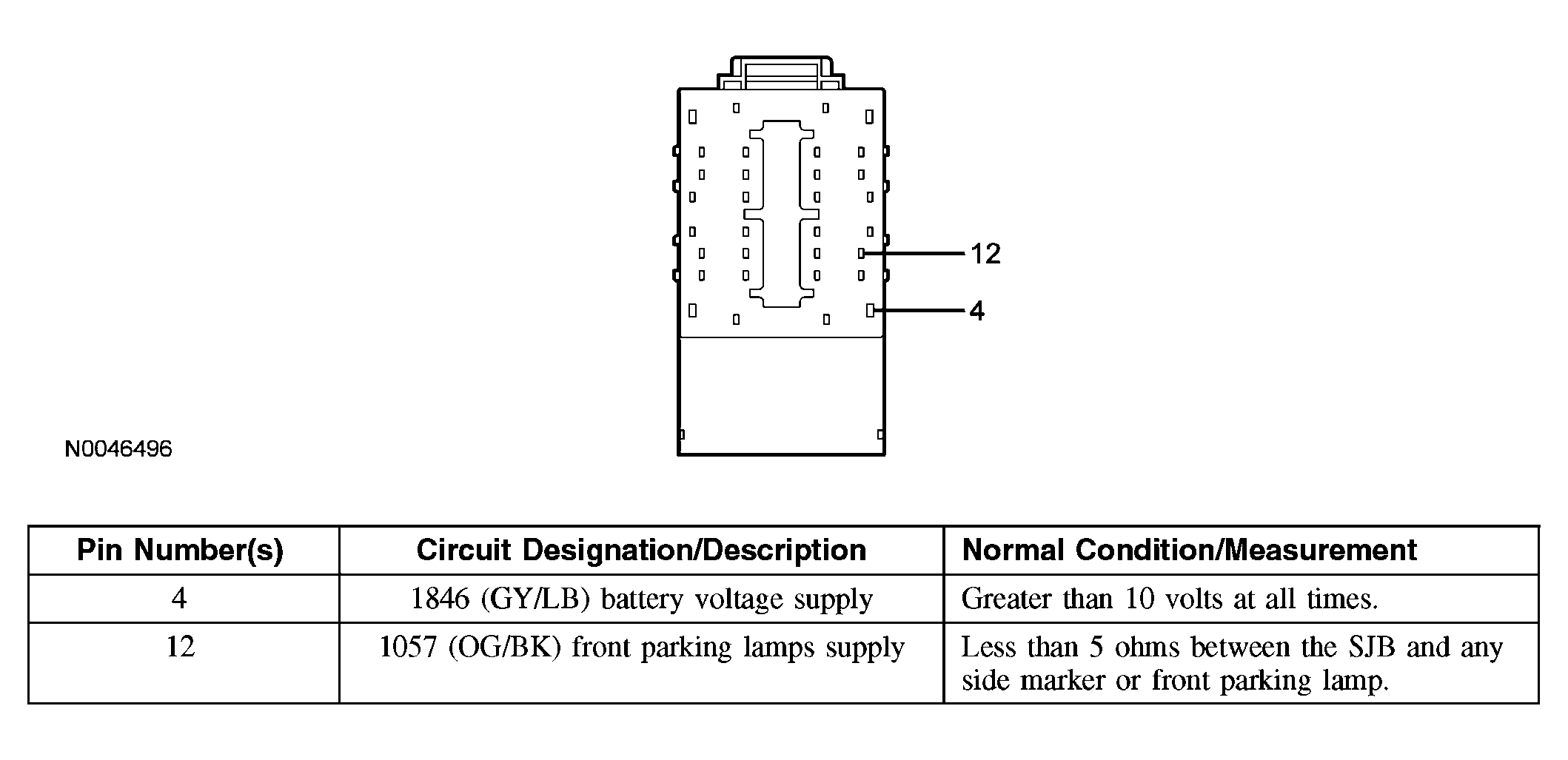

Fig 8: Connector Circuit Reference - SJB C2280E

Courtesy of FORD MOTOR CO.
