Brake Master Cylinder: Material

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION - BRAKE MASTER CYLINDER

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

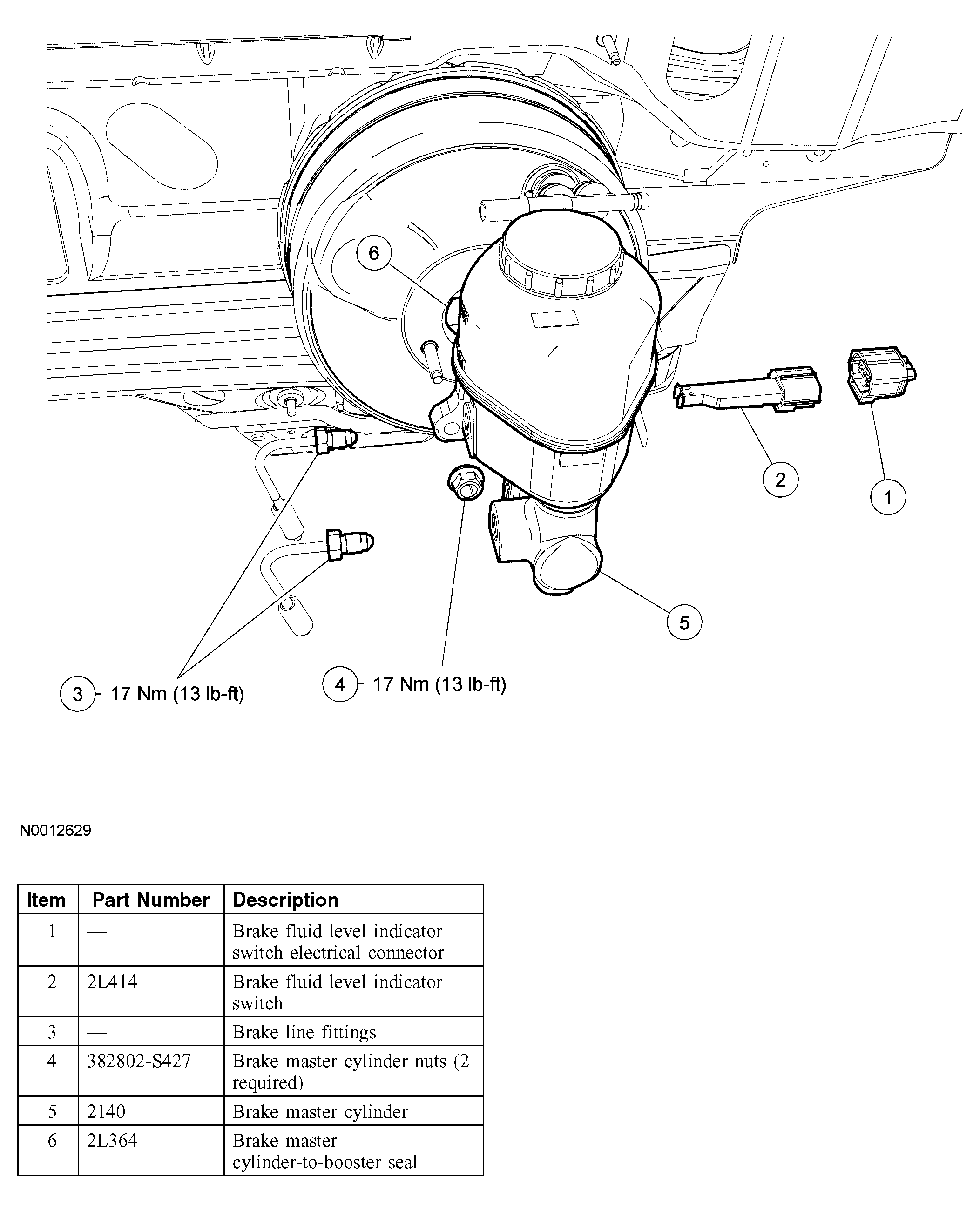

Fig 1: Identifying Components Of Brake Master Cylinder
G03988499Courtesy of FORD MOTOR CO.
