Passenger-Side Air Bag Module: Installation

WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse removal procedure. DO NOT activate air bag system at this time. Tighten passenger-side air bag module mounting bolts to specification. See TORQUE SPECIFICATIONS  . Remove air bag simulator from passenger-side air bag module harness connector and reconnect connectors.
  2. Connect negative battery cable. With air bag simulators installed at all remaining deployable air bag system devices, perform system operation check. See SYSTEM OPERATION CHECK  . Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

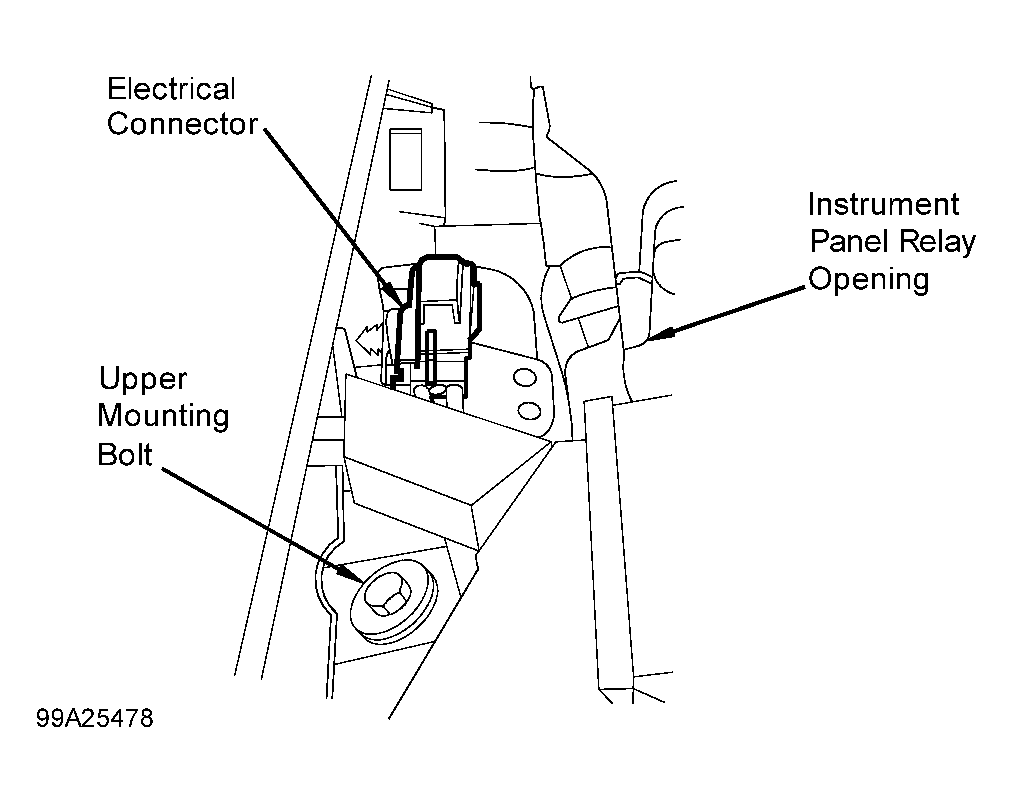

Fig 1: Identifying Passenger-side Air Bag Module Upper Mounting Bolt And Electrical Connector
G99A25478Courtesy of FORD MOTOR CO.
Fig 2: Identifying Passenger-side Air Bag Module
G97E04873Courtesy of FORD MOTOR CO.
