Removal (All Others)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2000 Mercury Villager, 2000 Mercury Mountaineer, 2000 Lincoln Navigator, 2000 Ford Windstar, and 2000 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove throttle body and upper intake manifold assembly. See UPPER INTAKE MANIFOLD . Disconnect fuel supply and return lines.

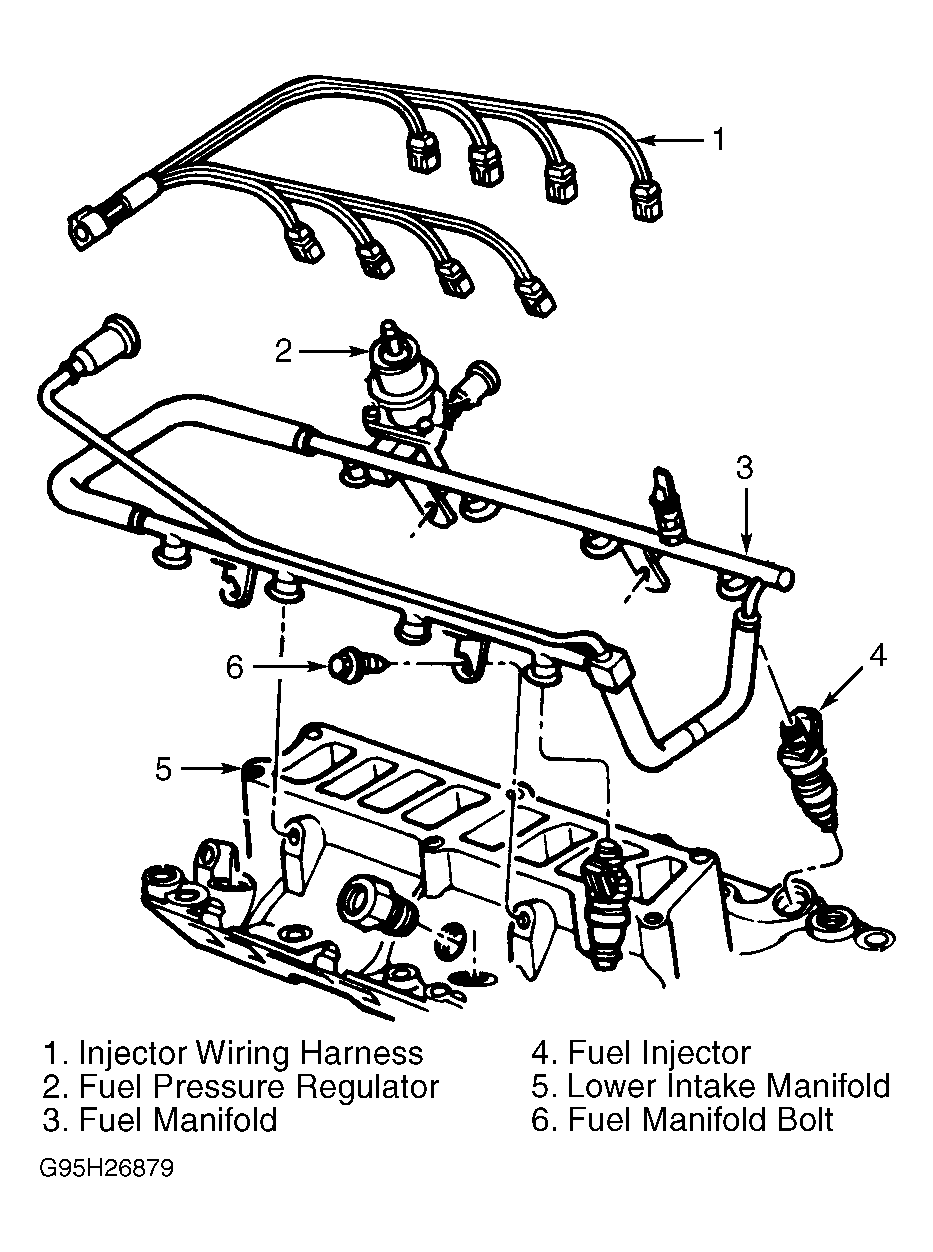

  2. Disconnect wiring harness at fuel injectors. Disconnect vacuum hose from fuel pressure regulator. Remove fuel rail bolts. Carefully disengage fuel injectors by lifting and gently rocking rail. See Figure.
  3. Remove injectors from fuel rail, using a slight lifting/rocking motion. Place removed components in a clean container to avoid dirt or other contamination.
