Installation (4.2L)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2000 Mercury Villager, 2000 Mercury Mountaineer, 2000 Lincoln Navigator, 2000 Ford Windstar, and 2000 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Synchro Positioning Tool (T96T-12200-A) MUST be used during installation of synchronizer assembly. Failure to follow this procedure could cause fuel system control to be out of time. This could possibly cause engine damage.
- Install Synchro Positioning Tool (T96T-12200-A) on camshaft synchronizer by rotating tool until it engages notch in camshaft synchronizer housing. See Fig 1.

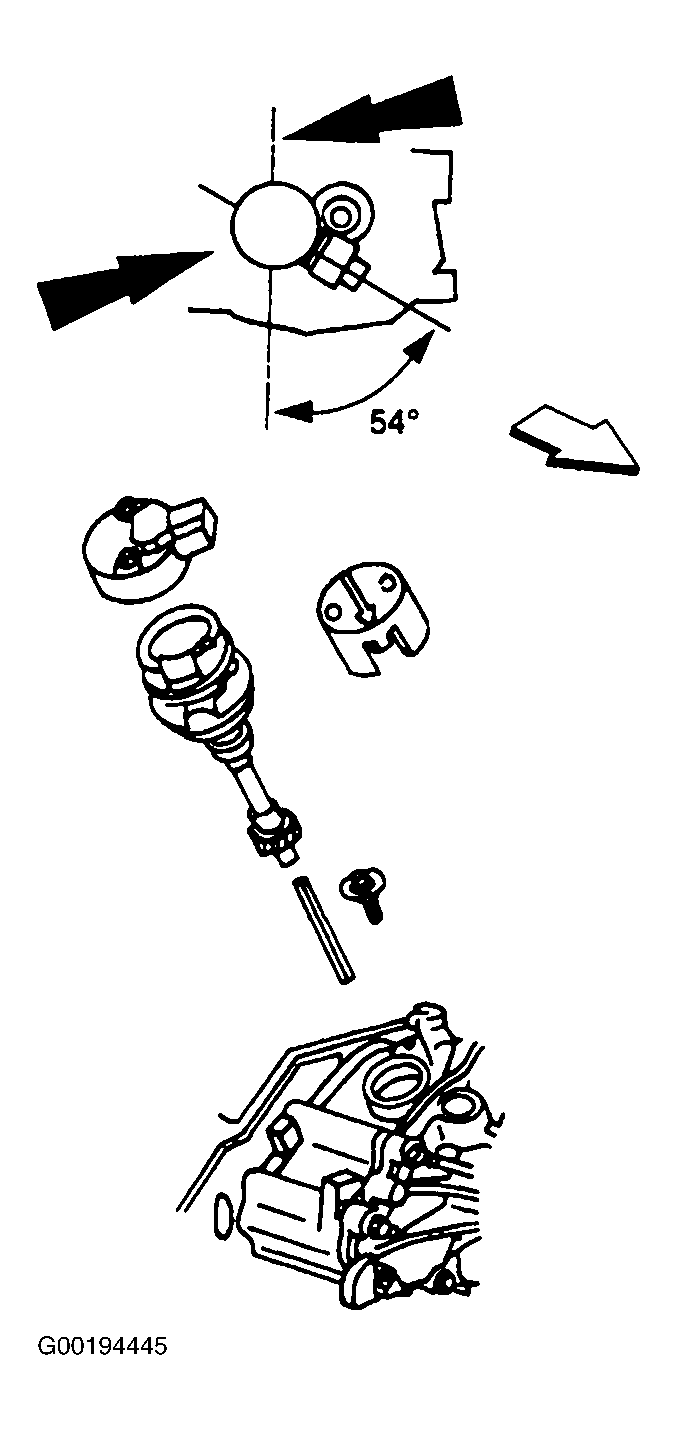

- With No. 1 cylinder at TDC of compression stroke, install camshaft synchronizer housing assembly so the arrow on the Synchro Positioning Tool (T96T-12200-A) is 54 degrees from centerline of engine. See Fig 2.
- Install and tighten the synchronizer hold down bolt. See TORQUE SPECIFICATIONS.
- Install EGR valve and adapter gasket. Install bolts and nut and tighten to 89 INCH lbs. (10 N.m). Install EGR valve tube upper fitting. Tighten fitting to 25-35 ft. lbs. (34-47 N.m). Install EGR vacuum hose.
- Remove Synchro Positioning Tool (T96T-12200-A). Install CMP sensor. See REMOVAL & INSTALLATION (4.2L) under CAMSHAFT POSITION (CMP) SENSOR.
NOTE:
During installation, arrow on Synchro Positioning Tool (T96T-12200-A) will rotate clockwise as the gears engage.
