Manual Control Lever Shaft Seal: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Position the new seal in place.

Fig 1: Positioning New Manual Control Lever Seal
Courtesy of FORD MOTOR CO.

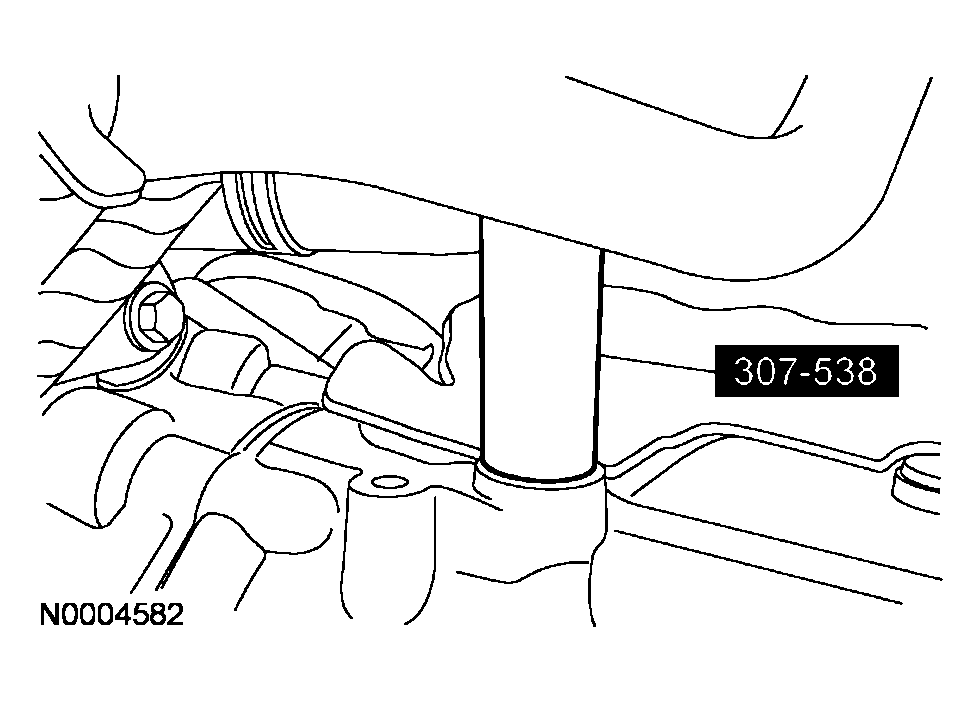

Using the special tool, install a new selector shaft seal.

Fig 2: Installing Selector Shaft Seal
Courtesy of FORD MOTOR CO.

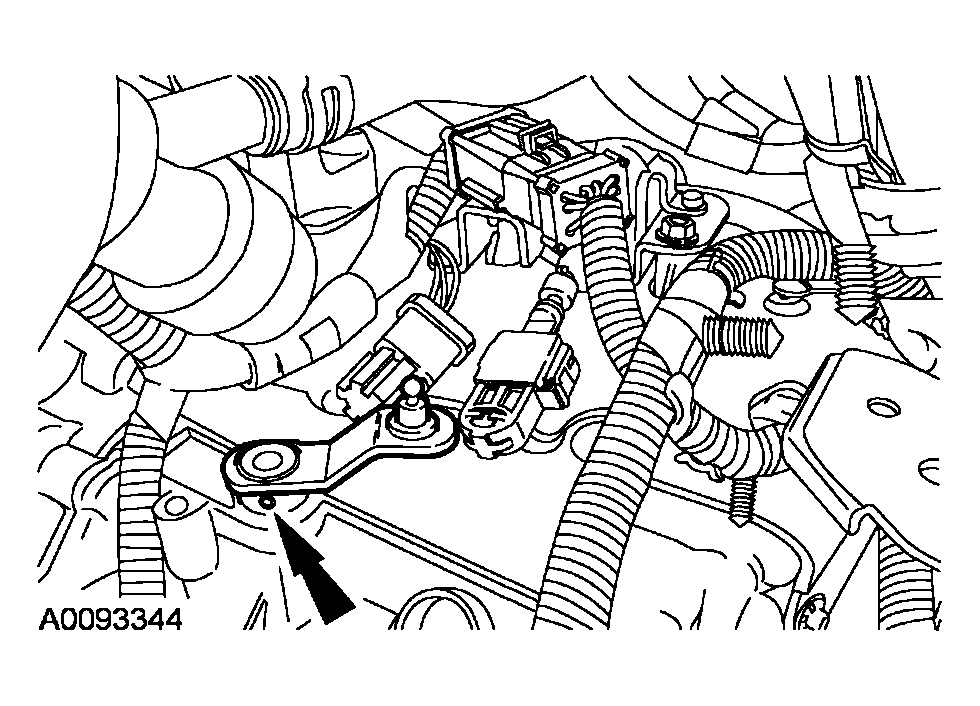

Position the manual lever in place and install the roll pin.

Fig 3: Installing Roll Pin
Courtesy of FORD MOTOR CO.
Connect the shift cable end.

Fig 4: Disconnecting Shift Cable End
Courtesy of FORD MOTOR CO.
Install the battery tray and battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
If required, top off the transaxle with clean continuously variable transaxle (CVT) transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK AND SETTING .
