Drive Pinion Flange and Drive Pinion Seal: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install a new drive pinion seal.

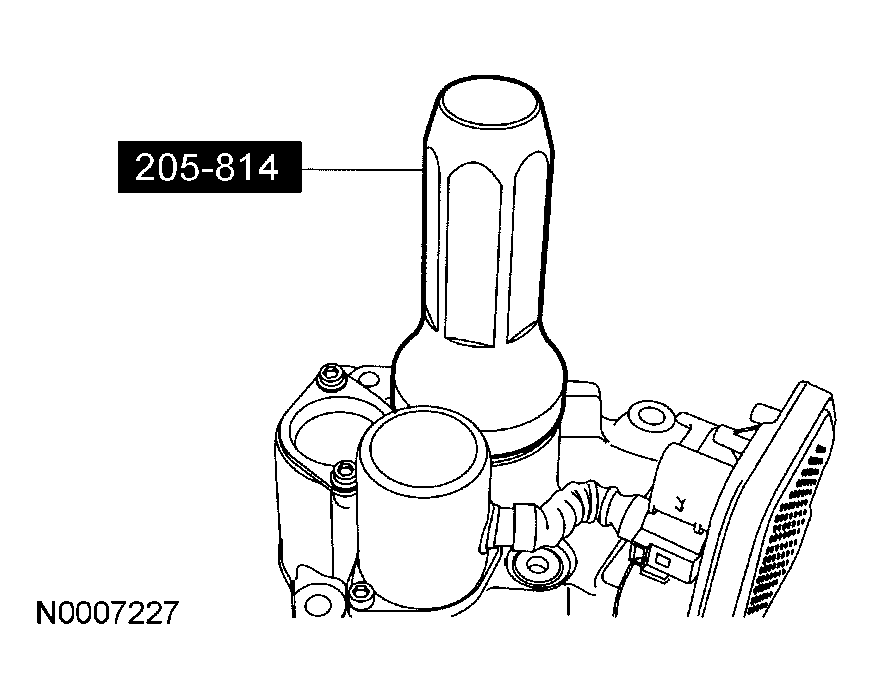

    Fig 1: Installing New Drive Pinion Seal
    G03988394Courtesy of FORD MOTOR CO.
  2. Install the drive pinion flange.
    Fig 2: Installing Drive Pinion Flange
    G03988395Courtesy of FORD MOTOR CO.
  3. Install a new drive pinion flange nut.
    • Tighten to 100 Nm (74 lb-ft).

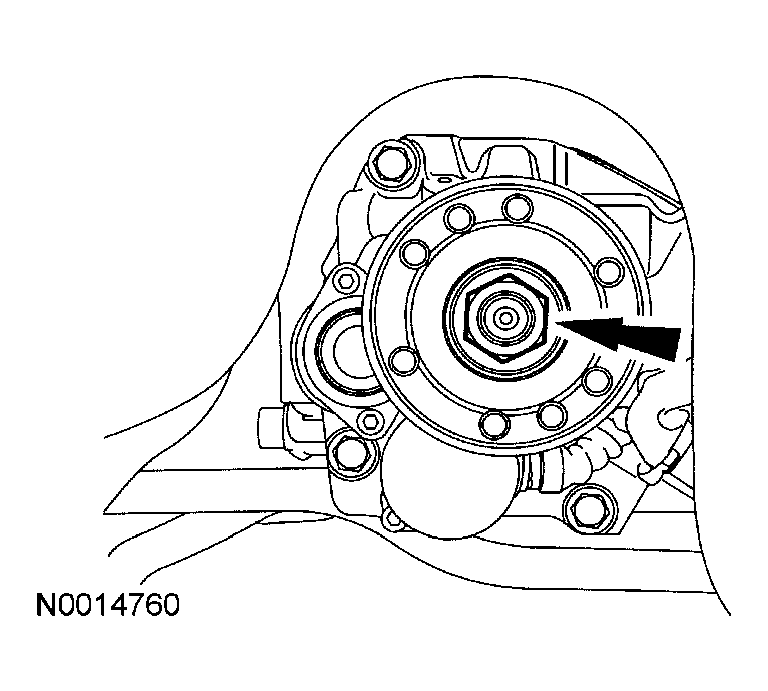

      Fig 3: Installing New Drive Pinion Flange Nut
      G03988391Courtesy of FORD MOTOR CO.
  4. Install the driveshaft assembly. For additional information, refer to DRIVESHAFT .
