Power Transfer Unit (PTU) Seal - RH: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  2. Remove and discard the power transfer unit (PTU) dust seal.
  3. Remove and discard the PTU oil seal.

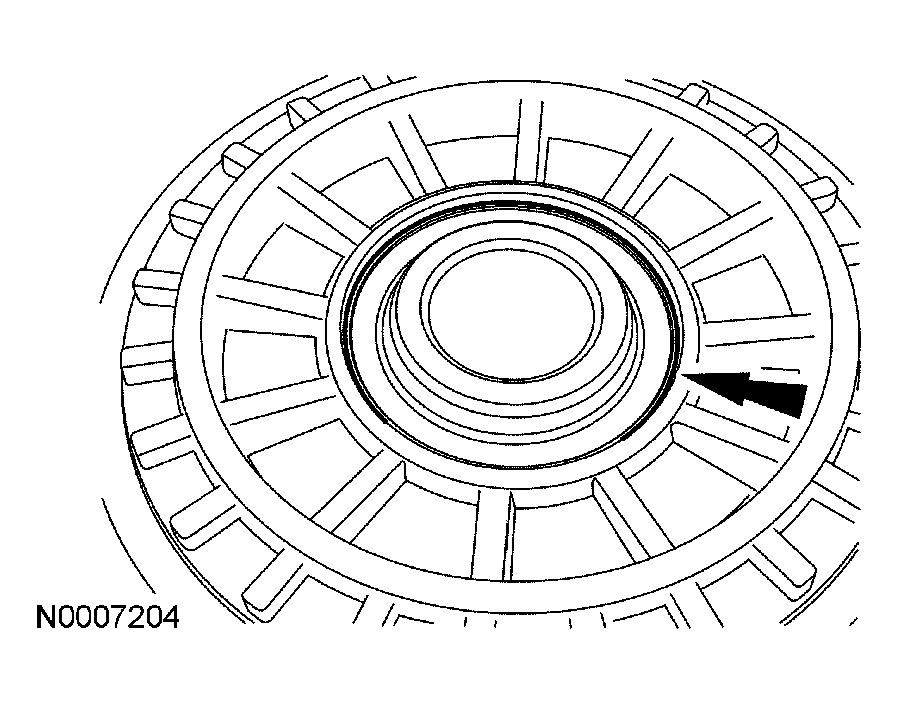

    Fig 1: Removing PTU Oil Seal
    G03992045Courtesy of FORD MOTOR CO.
