Subframe Bushings: Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the special tools to the front subframe with the new subframe bushing.
    Fig 1: Assembling Special Tools To Front Subframe With New Subframe Bushing
    G03990024Courtesy of FORD MOTOR CO.

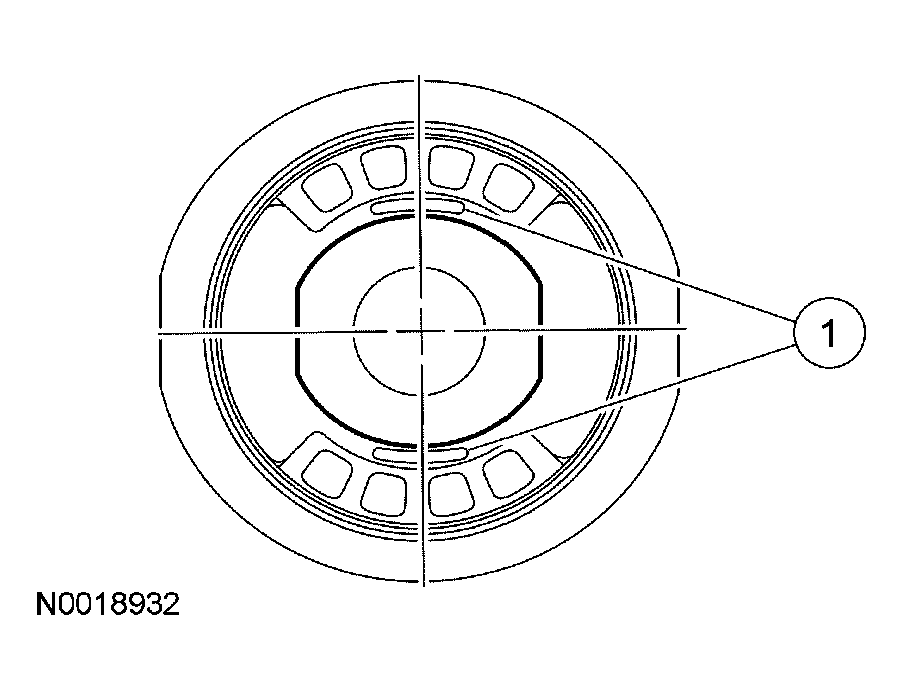

  2. Align the subframe bushing to the front subframe.
    1. Align the subframe bushing so that the voids are oriented in the fore-aft position.
      Fig 2: Aligning Subframe Bushing To Front Subframe
      G03990025Courtesy of FORD MOTOR CO.
  3. Press the new subframe bushing into the front subframe.
  4. Install the front subframe. For additional information, refer to SUBFRAME - FRONT .
