Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the PRNDL trim ring.

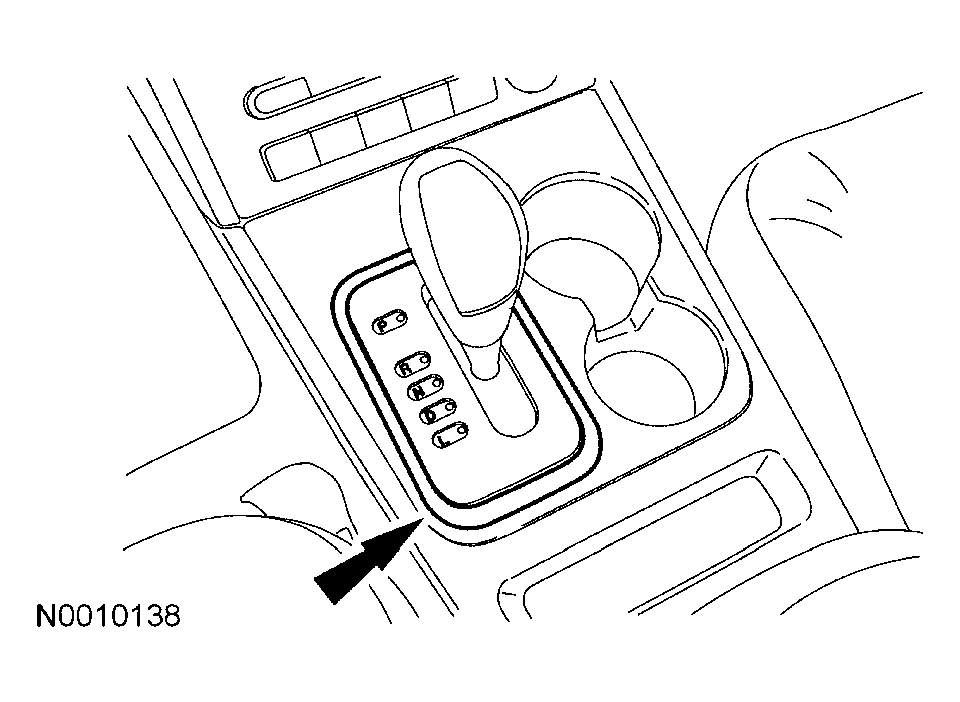

Fig 1: Removing PRNDL Trim Ring
Courtesy of FORD MOTOR CO.
Remove the upper console panel.

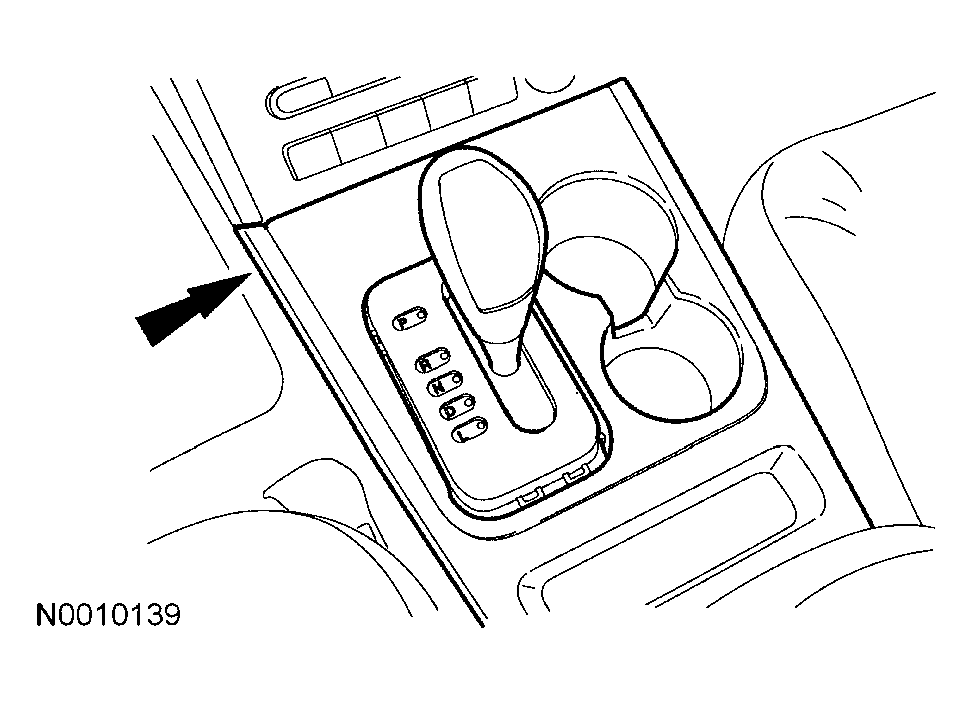

Fig 2: Removing Upper Console Panel
Courtesy of FORD MOTOR CO.
Slide the lower shift knob bezel downward.

Fig 3: Sliding Lower Shift Knob Bezel Downward
Courtesy of FORD MOTOR CO.
Remove the bolt and lift up on the shift knob to remove.

Fig 4: Removing Shift Knob Bolt
Courtesy of FORD MOTOR CO.
Remove the lower shift knob bezel.

Fig 5: Removing Lower Shift Knob Bezel
Courtesy of FORD MOTOR CO.
Disconnect the light bulb from the PRNDL bezel.

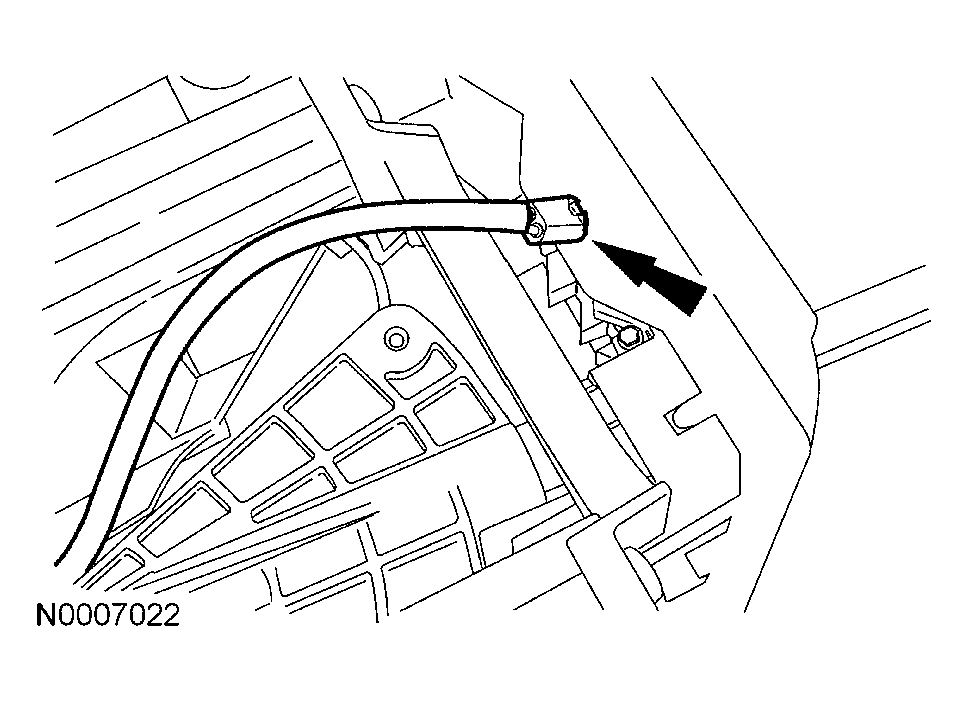

Fig 6: Disconnecting Light Bulb From PRNDL Bezel
Courtesy of FORD MOTOR CO.
Release the 4 locking tabs and remove the PRNDL bezel assembly.

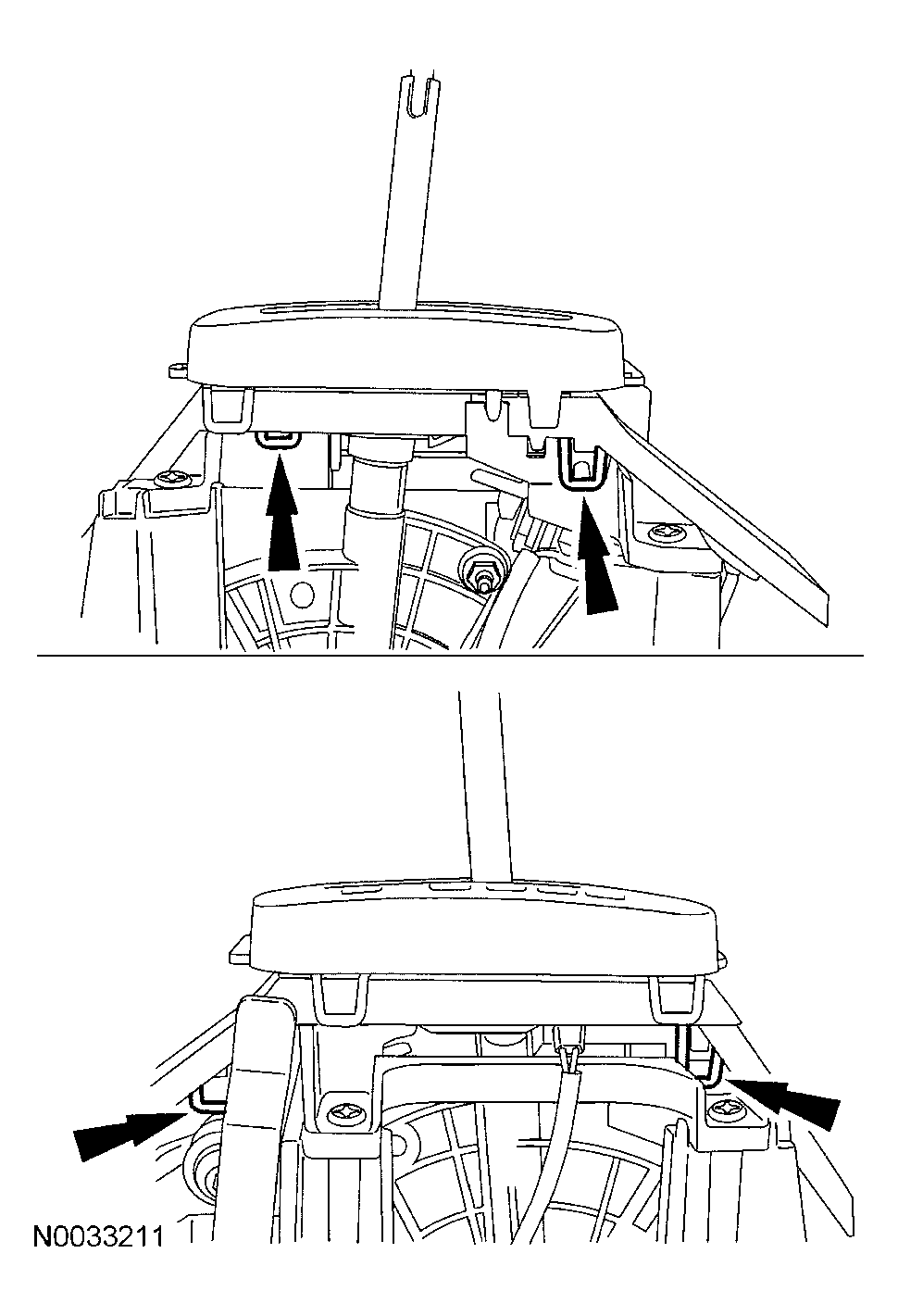

Fig 7: Removing PRNDL Bezel Assembly Locking Tabs
Courtesy of FORD MOTOR CO.
