Wheel Studs: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Suspension fasteners are critical parts because they affect performance of vital parts and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear brake disc. For additional information, refer to REAR DISC BRAKE .
  3. Using the special tool, remove and discard the wheel stud.

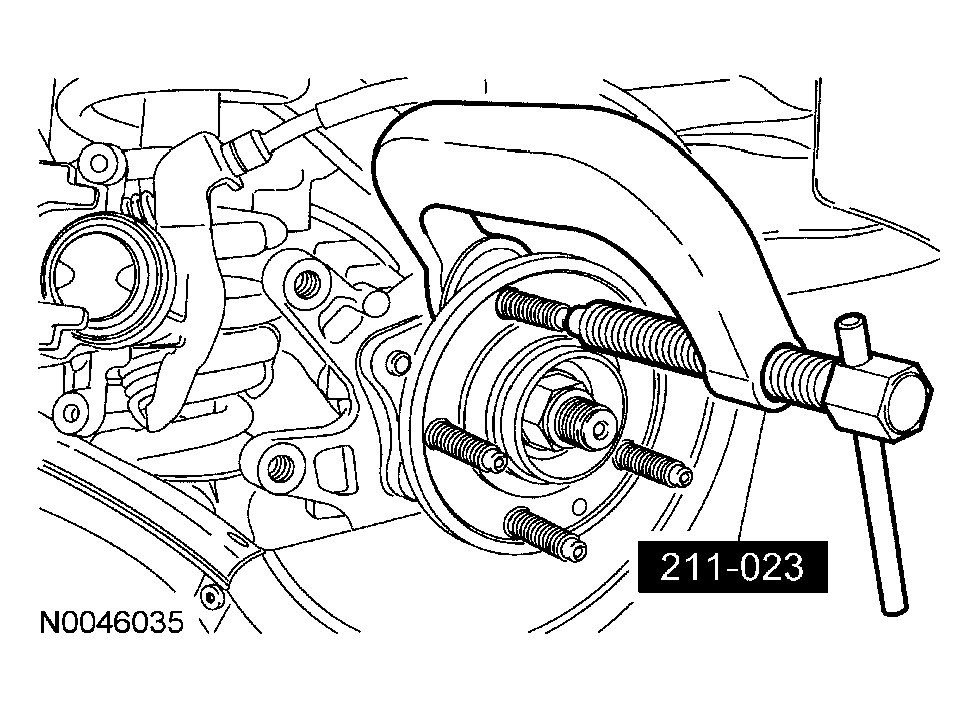

    Fig 1: Removing Wheel Stud
    G03988323Courtesy of FORD MOTOR CO.
