Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation is necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified to make sure of correct retention of these parts.
  1. Remove the underbody catalytic converter, muffler and resonator as an assembly. For additional information, refer to EXHAUST SYSTEM .
  2. Using a suitable jack stand, support the front of the vehicle.
    3. CAUTION: Do not allow the calipers to hang suspended from the brake hoses or damage to the hoses can occur.
  3. Remove the LH rear brake caliper anchor plate bolts and position the LH brake caliper assembly aside.
    • To install, tighten to 100 Nm (74 lb-ft).
    • Support the caliper using mechanic's wire.
  4. Remove and discard the LH rear axle shaft nut.
    • To install, tighten to 350 Nm (2588 lb-ft).
  5. Using the special tool, press the LH axle shaft out of the hub.

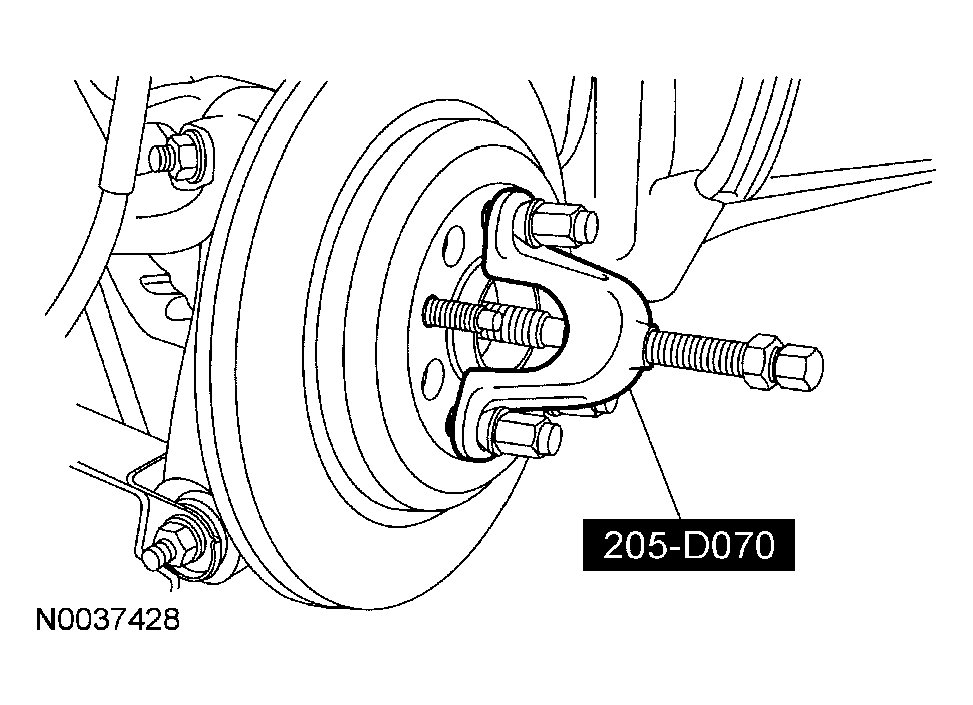

    Fig 1: Pressing LH Axle Shaft Out Of Hub
    G03988347Courtesy of FORD MOTOR CO.
  6. Remove and discard the LH wheel knuckle ball joint nut.
    • To install, tighten to 110 Nm (81 lb-ft).
  7. Using the special tool, disconnect the LH wheel knuckle from the upper arm.
    Fig 2: Disconnecting LH Wheel Knuckle From Upper Arm
    G03988332Courtesy of FORD MOTOR CO.
  8. Position a V-topped transmission jack under the LH lower control arm at the shock and spring assembly attachment point, then raise the jack enough to compress the shock absorber and spring assembly.
  9. Remove and discard the LH trailing arm-to-knuckle bolt, then loosen the trailing arm-to-subframe bolt.
    • To install, tighten to 110 Nm (81 lb-ft).
  10. Loosen the LH lower arm-to-knuckle bolt.
    • To install, tighten to 160 Nm (118 lb-ft).
  11. Remove and discard the LH toe link-to-knuckle nut and bolt and allow the LH wheel knuckle to hang in a downward position.
    • Tighten to 100 Nm (74 lb-ft).
  12. Loosen but do not remove the LH lower shock absorber and spring assembly bolt, then carefully lower the V-topped transmission jack until the spring is near it's full extension.
  13. Remove and discard the LH shock absorber lower bolt and disconnect the shock absorber from the lower arm.
    • To install, tighten to 110 Nm (81 lb-ft).
  14. Remove and discard the stabilizer bar link lower nuts.
    • To install, tighten to 55 Nm (41 lb-ft).
  15. Remove and discard the stabilizer bar bracket bolts.
    • To install, tighten to 58 Nm (43 lb-ft).
  16. Remove the stabilizer bar from the LH side of the vehicle.
  17. To install, reverse the removal procedure.
