Glass, Frames and Mechanisms - Exploded View, Rear Door

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Ford Five Hundred and Montego shown, Freestyle similar.

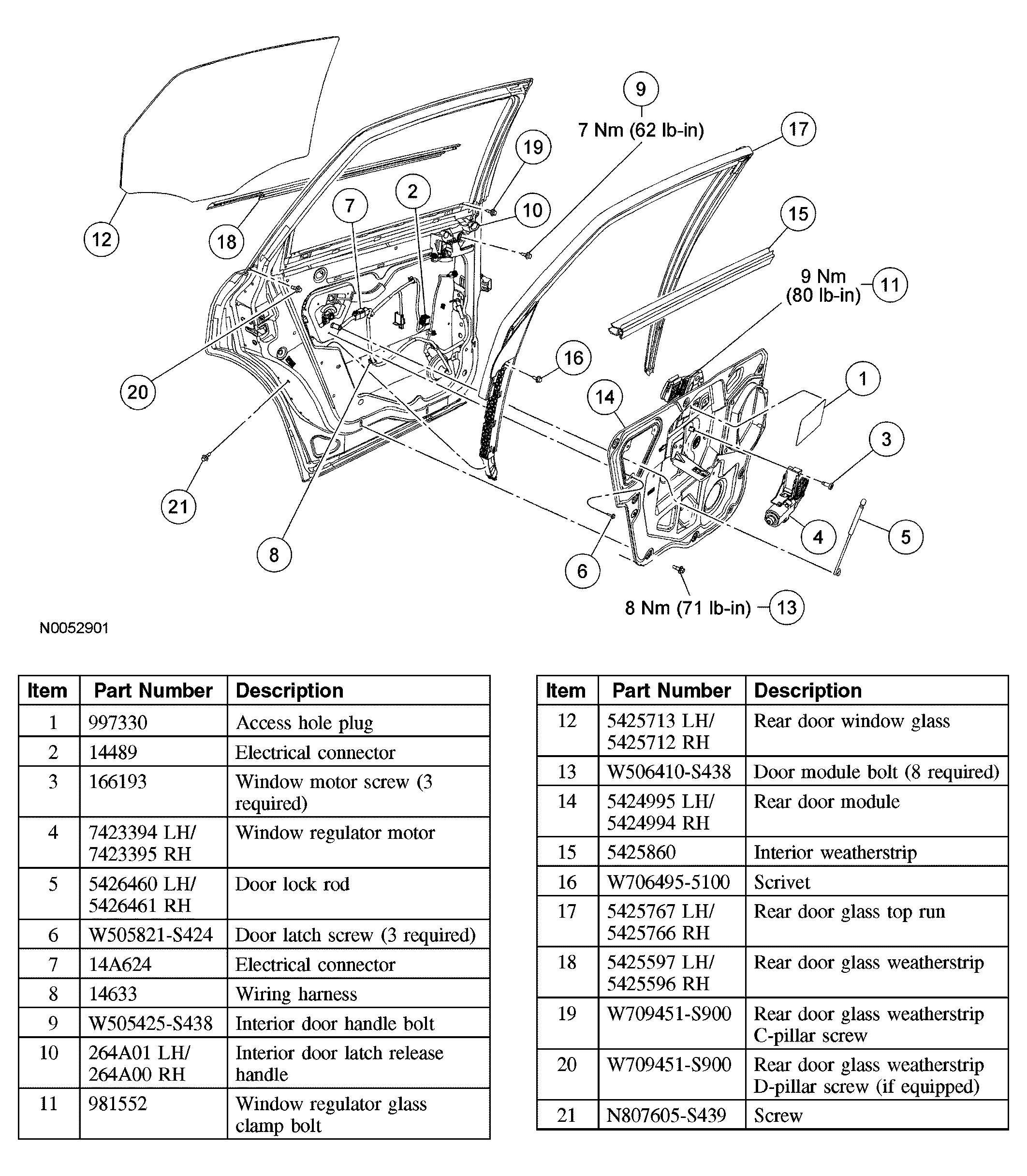

Fig 1: Removing/Installing Glass, Frames And Mechanisms - Rear Door (Ford Five Hundred And Montego Shown, Freestyle Similar)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
