WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

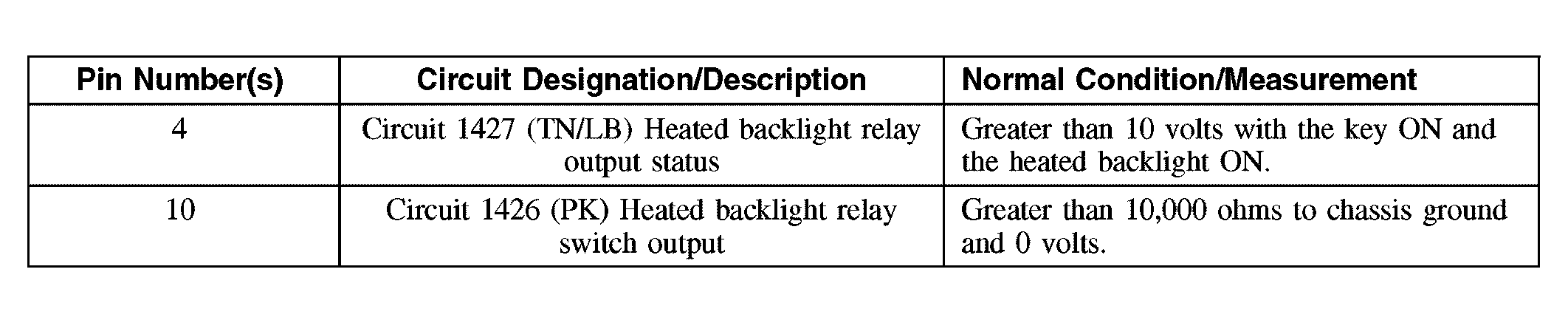

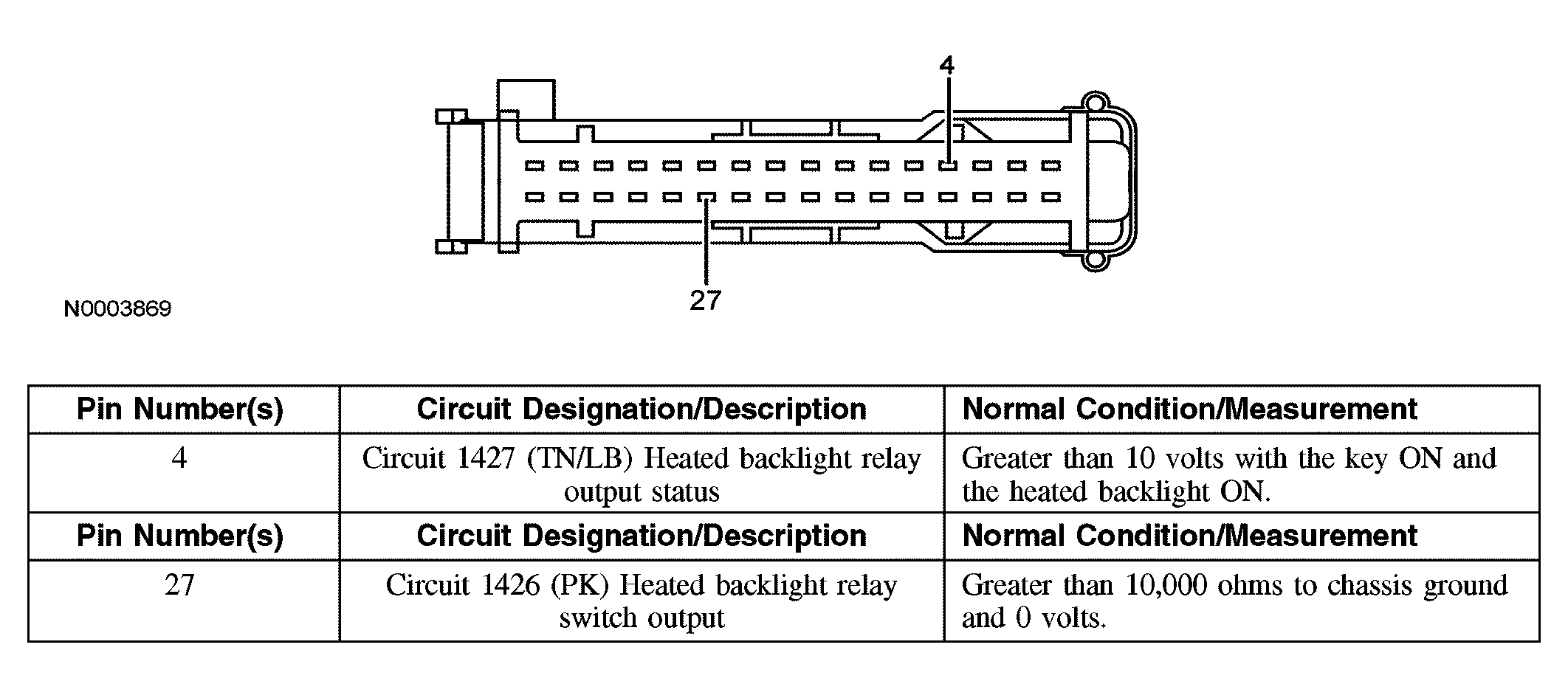

Fig 1: Identifying Electronic Manual Temperature Control (EMTC) Module C294a Pins
Courtesy of FORD MOTOR CO.

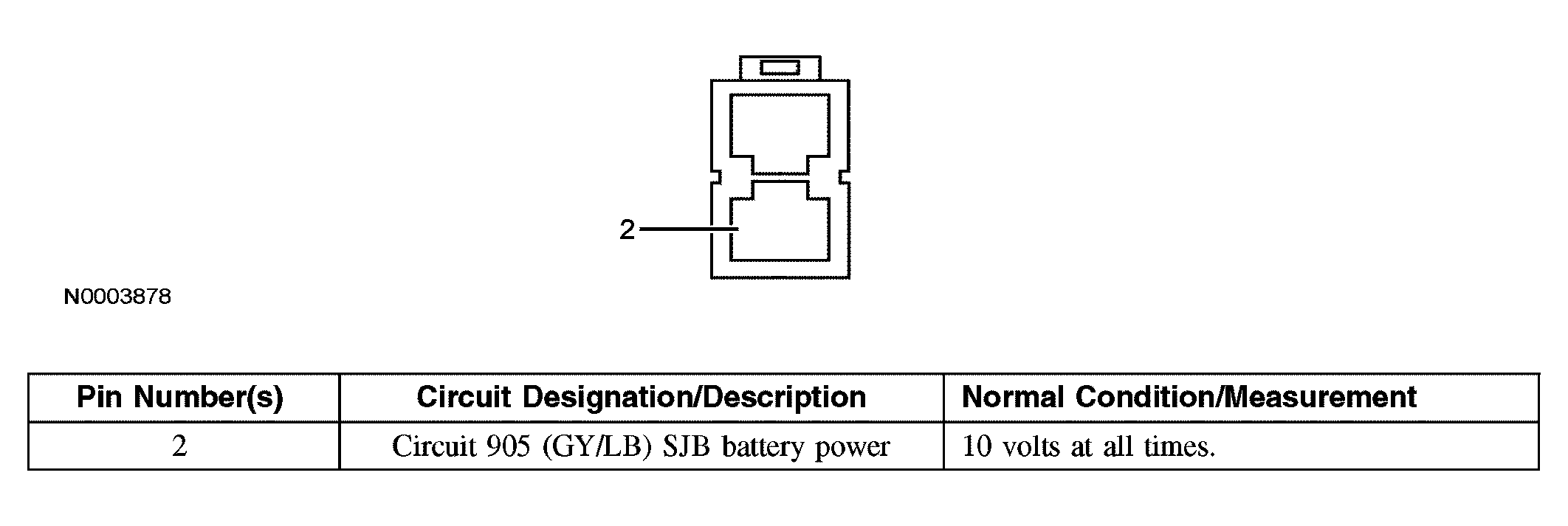

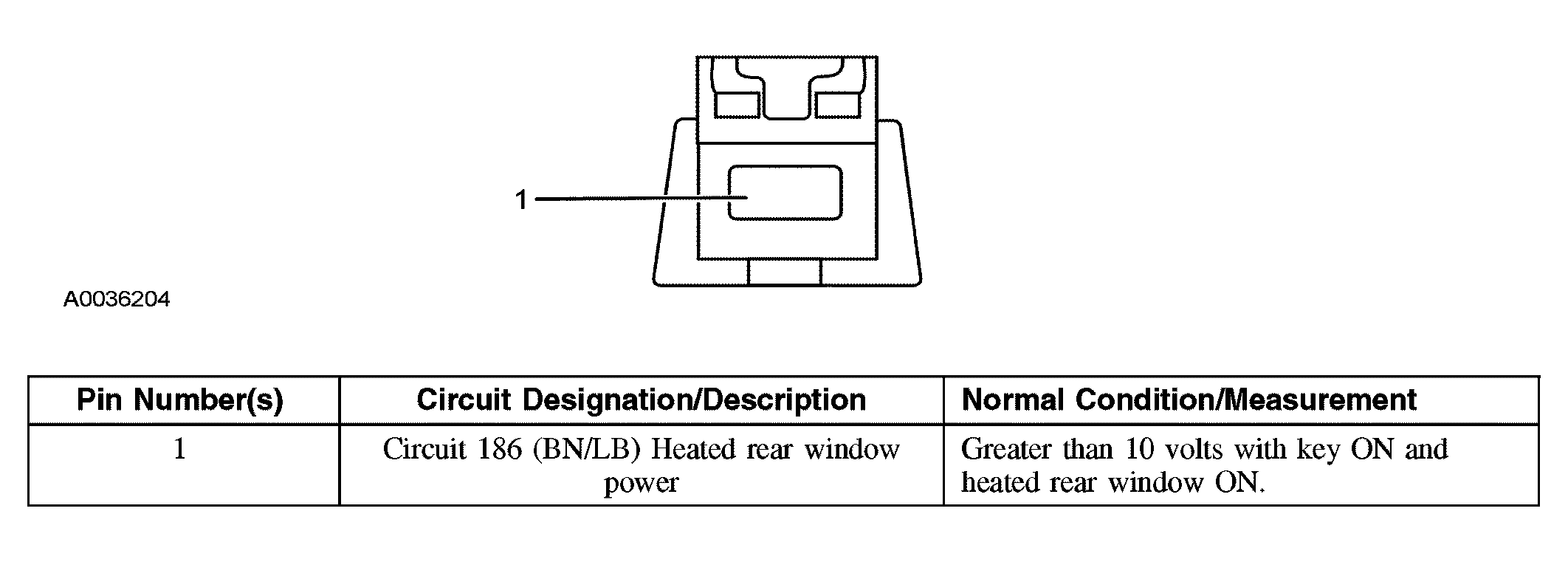

Fig 2: Identifying Rear Defrost C396 Pins
Courtesy of FORD MOTOR CO.

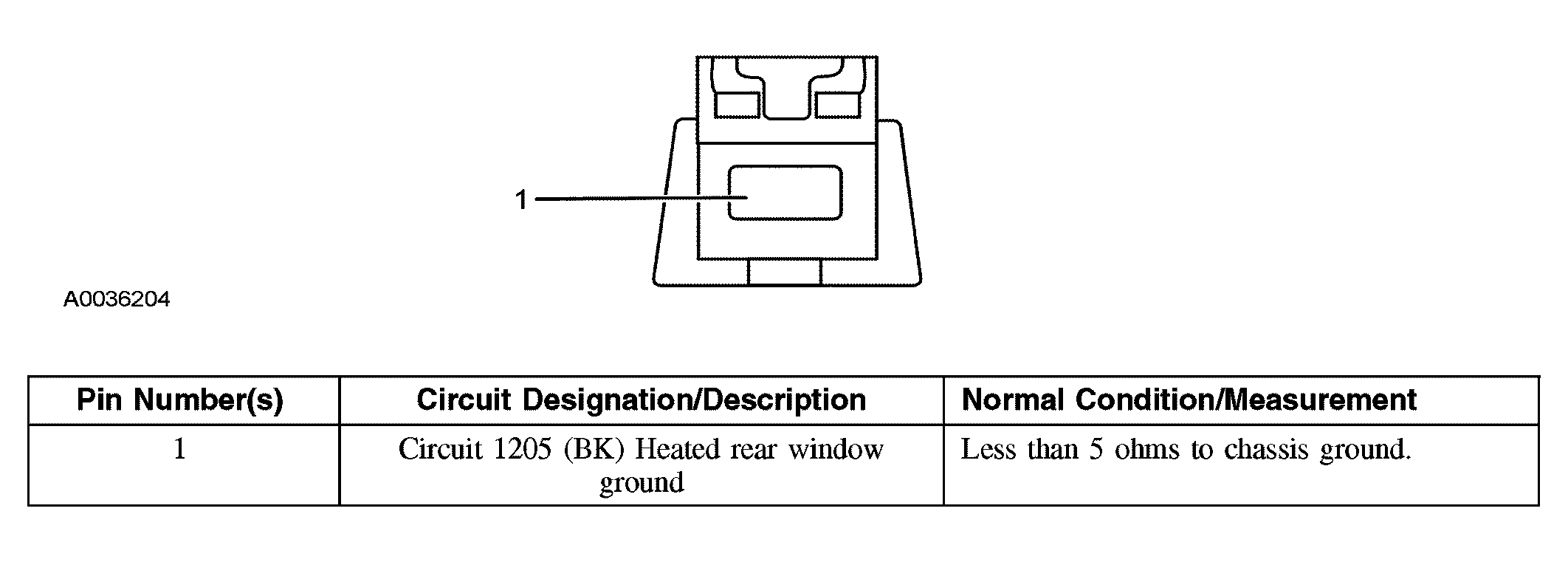

Fig 3: Identifying Rear Defrost C397 Pins
Courtesy of FORD MOTOR CO.

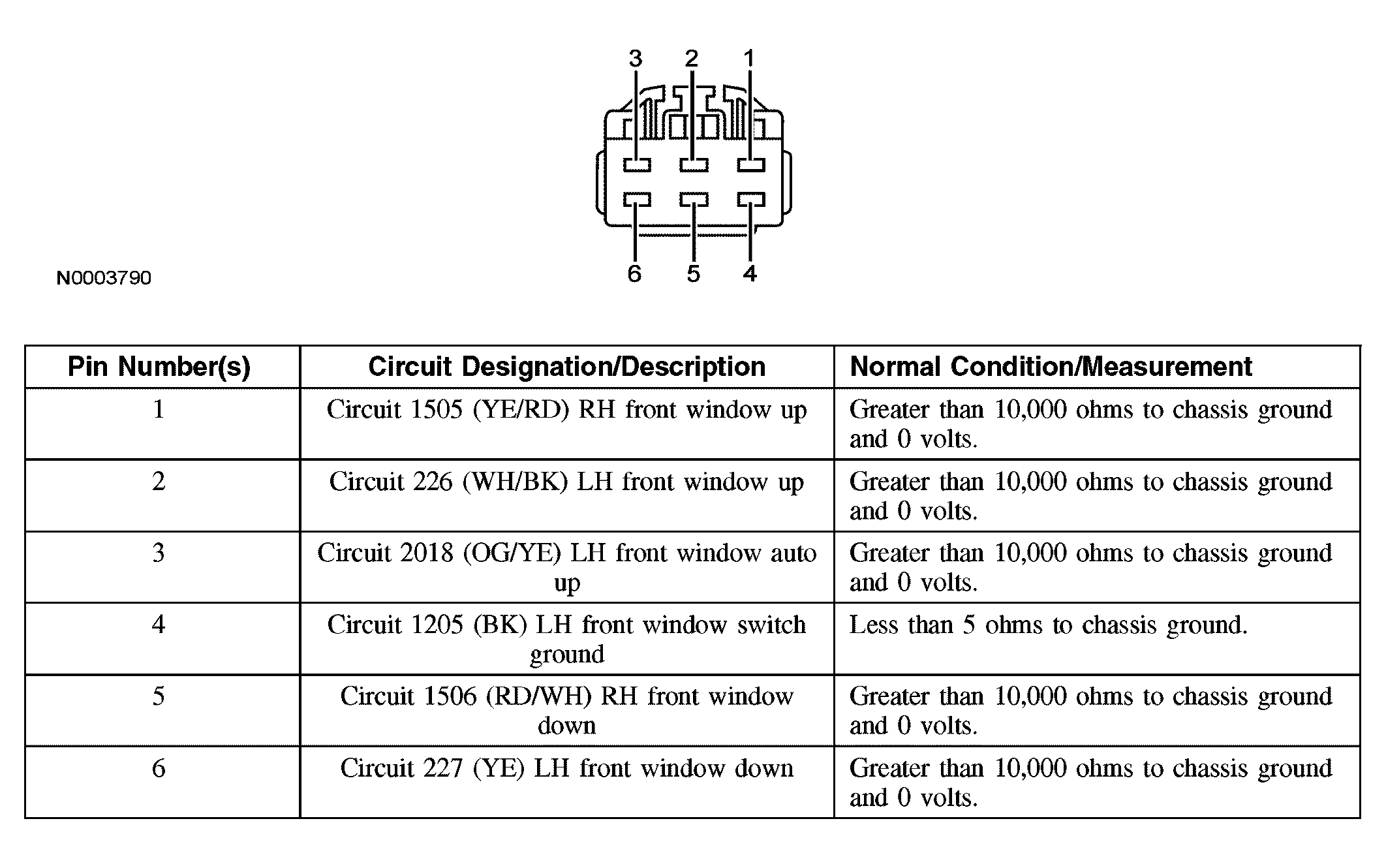

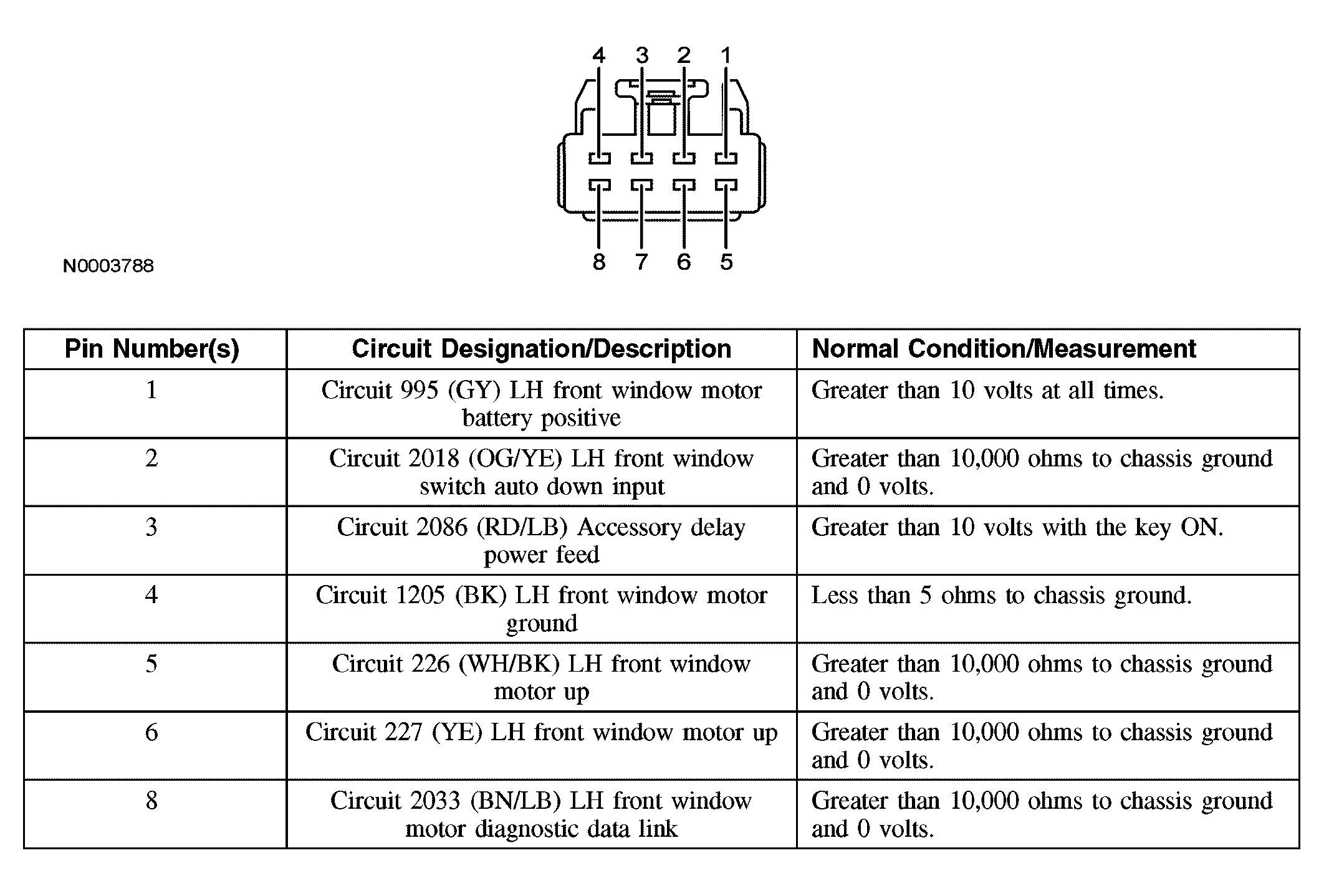

Fig 4: Identifying LH Front Window Control Switch C504a Pins
Courtesy of FORD MOTOR CO.
Fig 5: Identifying LH Front Window Control Switch C504b Pins
Courtesy of FORD MOTOR CO.
Fig 6: Identifying LH Front Window Motor C524 Pins
Courtesy of FORD MOTOR CO.

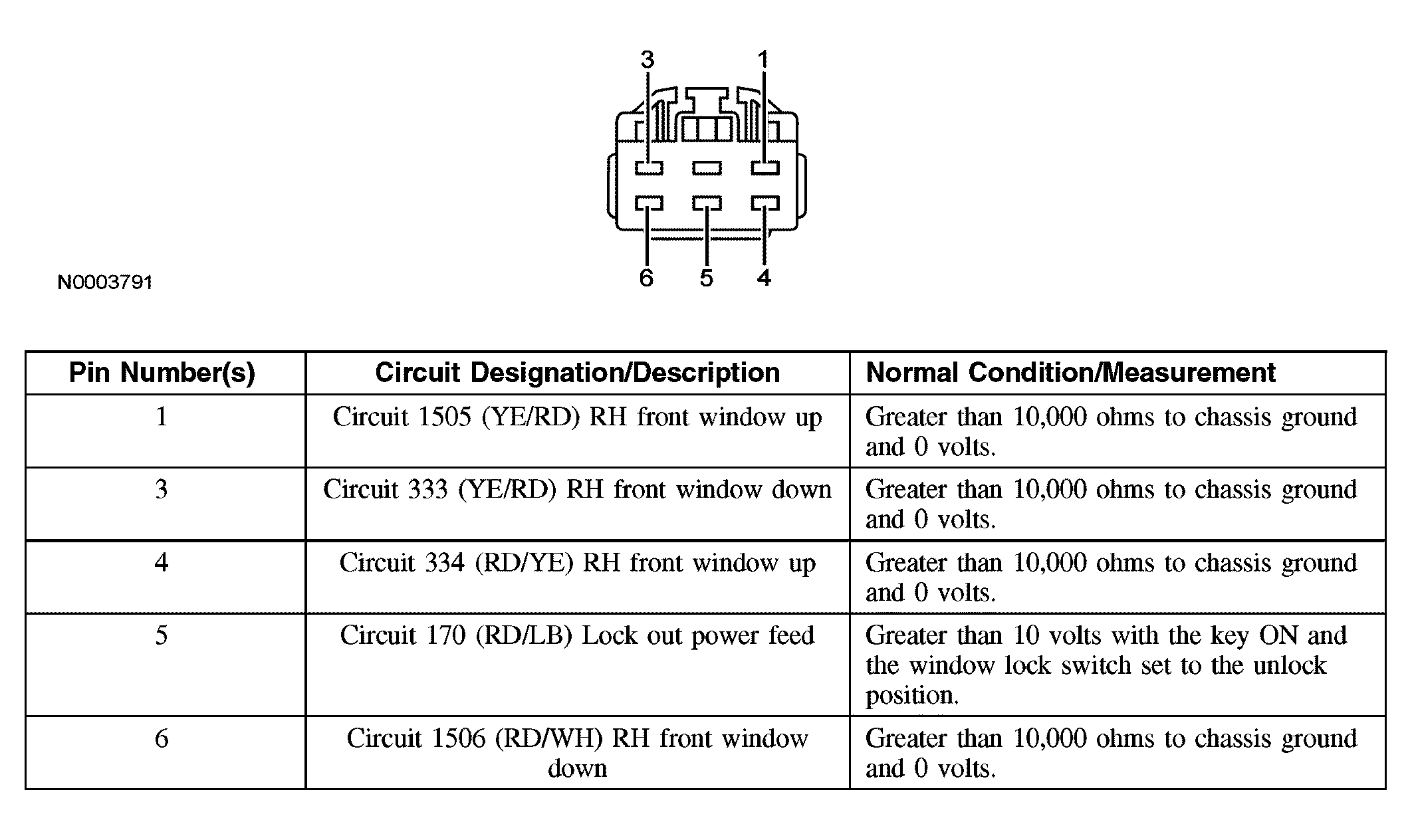

Fig 7: Identifying RH Front Window Control Switch C604 Pins
Courtesy of FORD MOTOR CO.

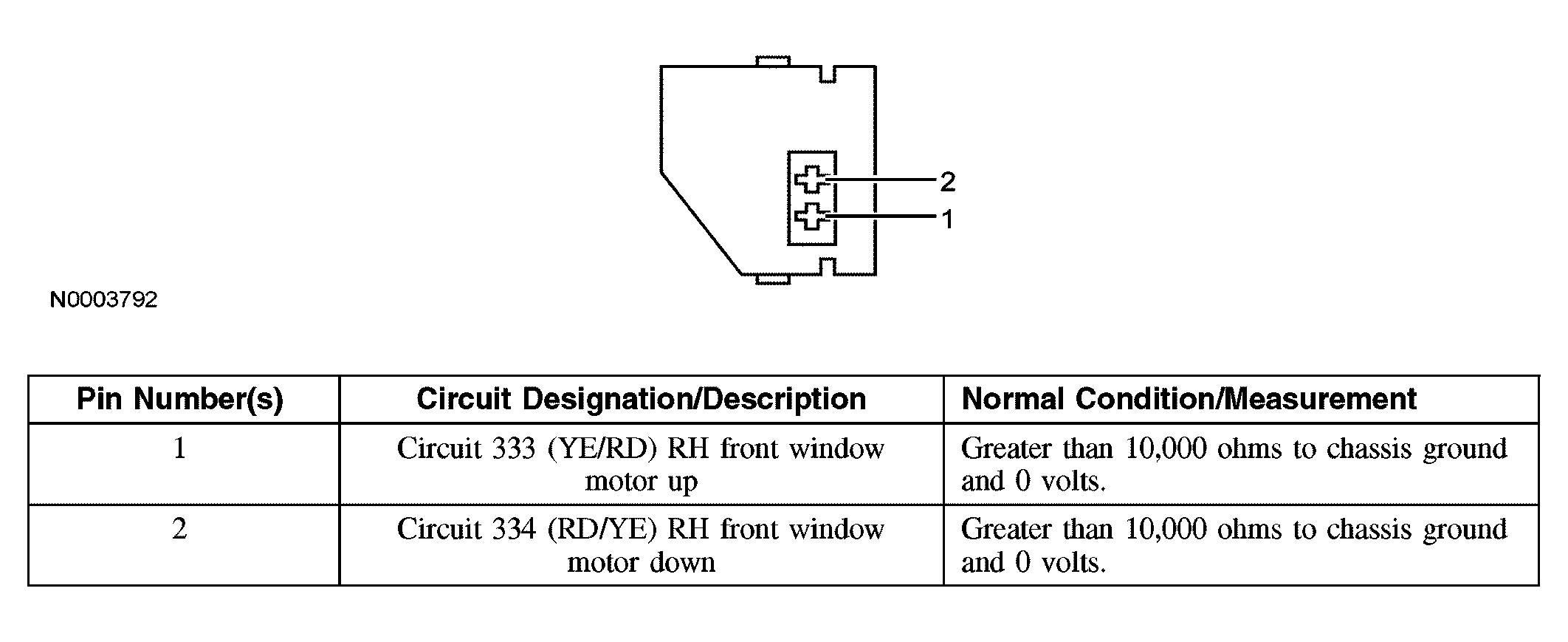

Fig 8: Identifying RH Front Window Motor C608 Pins
Courtesy of FORD MOTOR CO.

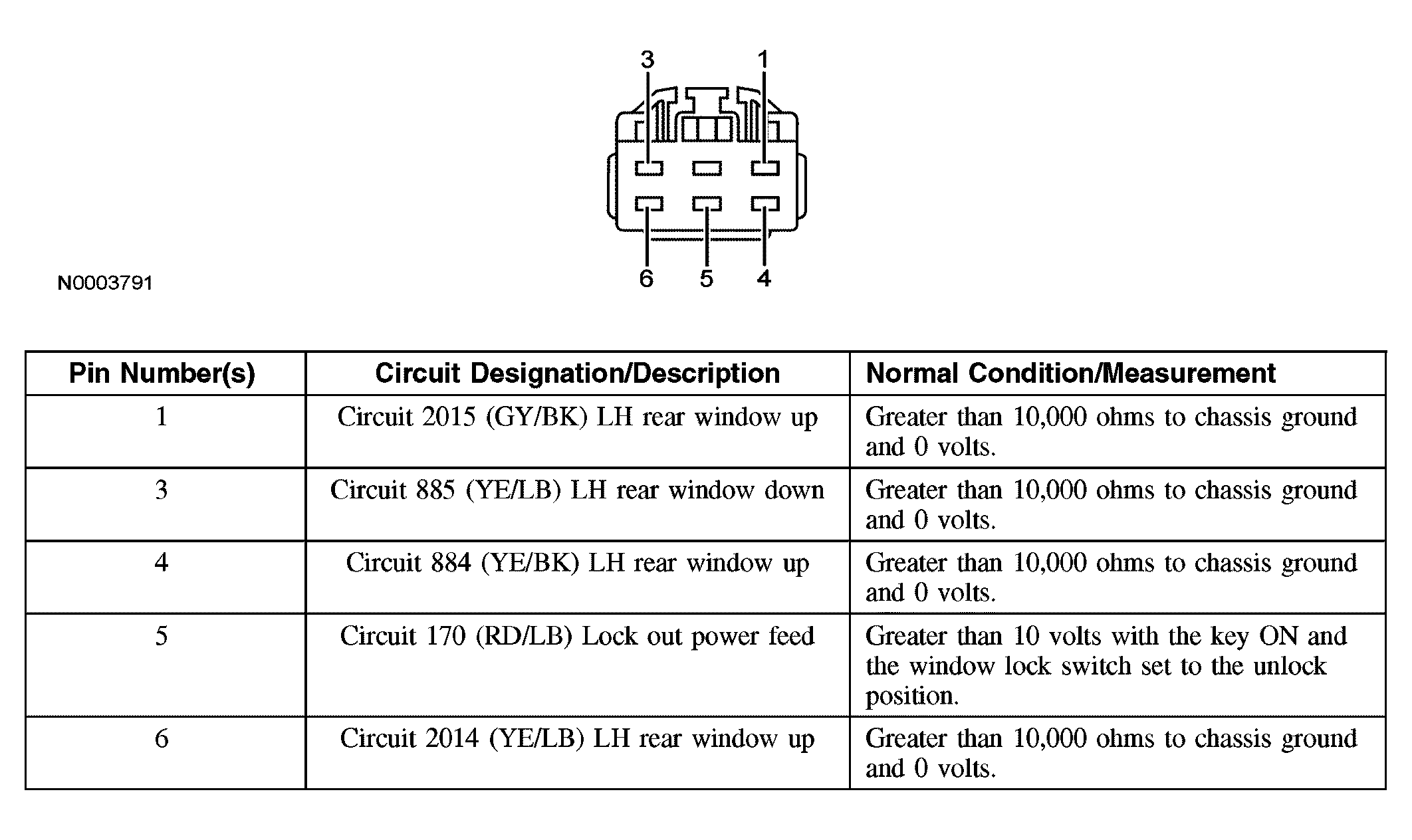

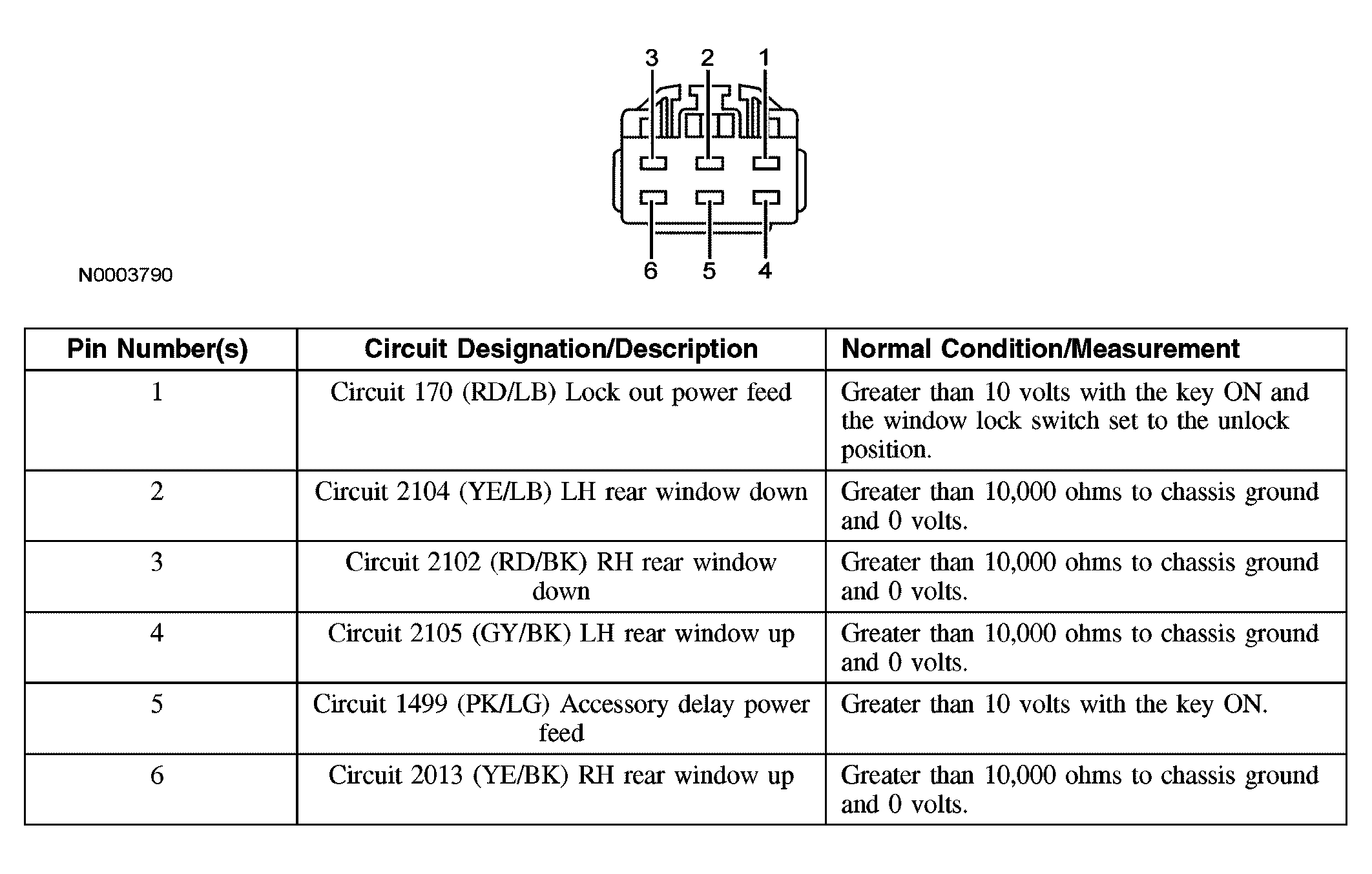

Fig 9: Identifying LH Rear Window Control Switch C701 Pins
Courtesy of FORD MOTOR CO.

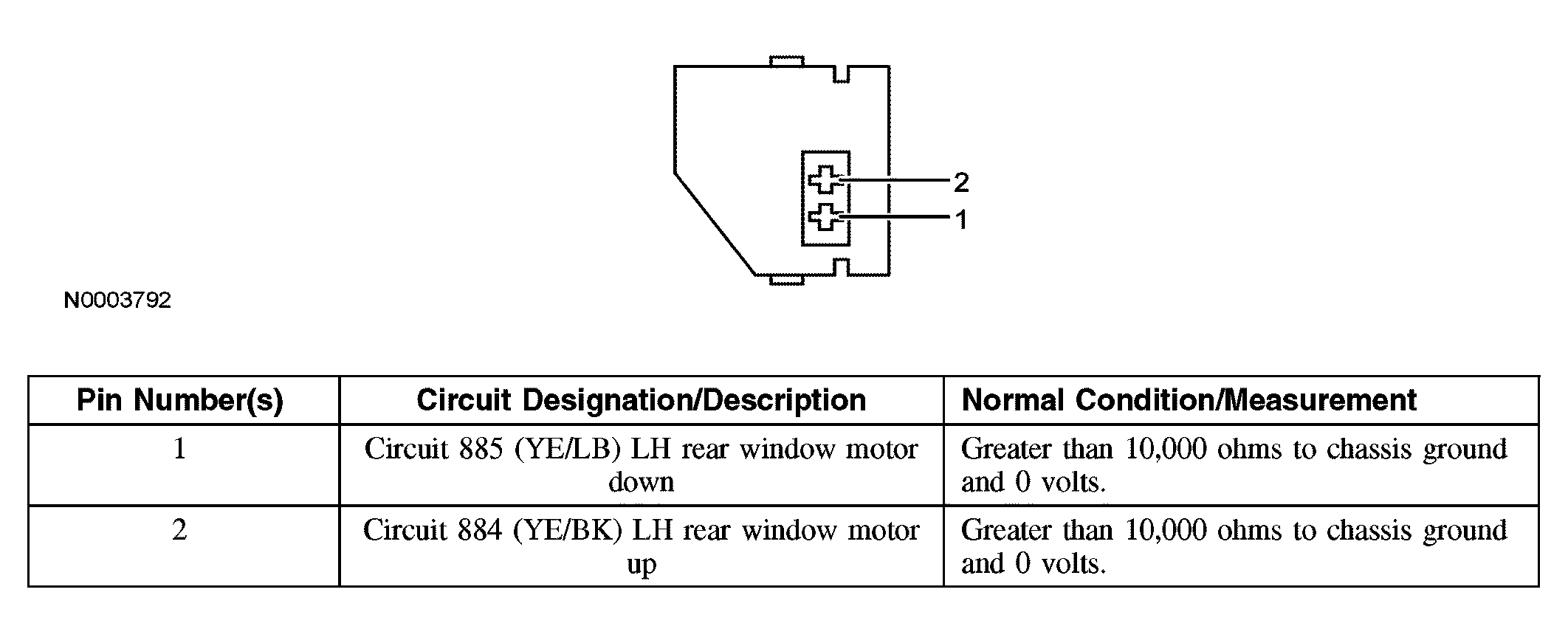

Fig 10: Identifying LH Rear Window Motor C703 Pins
Courtesy of FORD MOTOR CO.
Fig 11: Identifying RH Rear Window Control Switch C801 Pins
Courtesy of FORD MOTOR CO.
Fig 12: Identifying RH Rear Window Motor C803 Pins
Courtesy of FORD MOTOR CO.

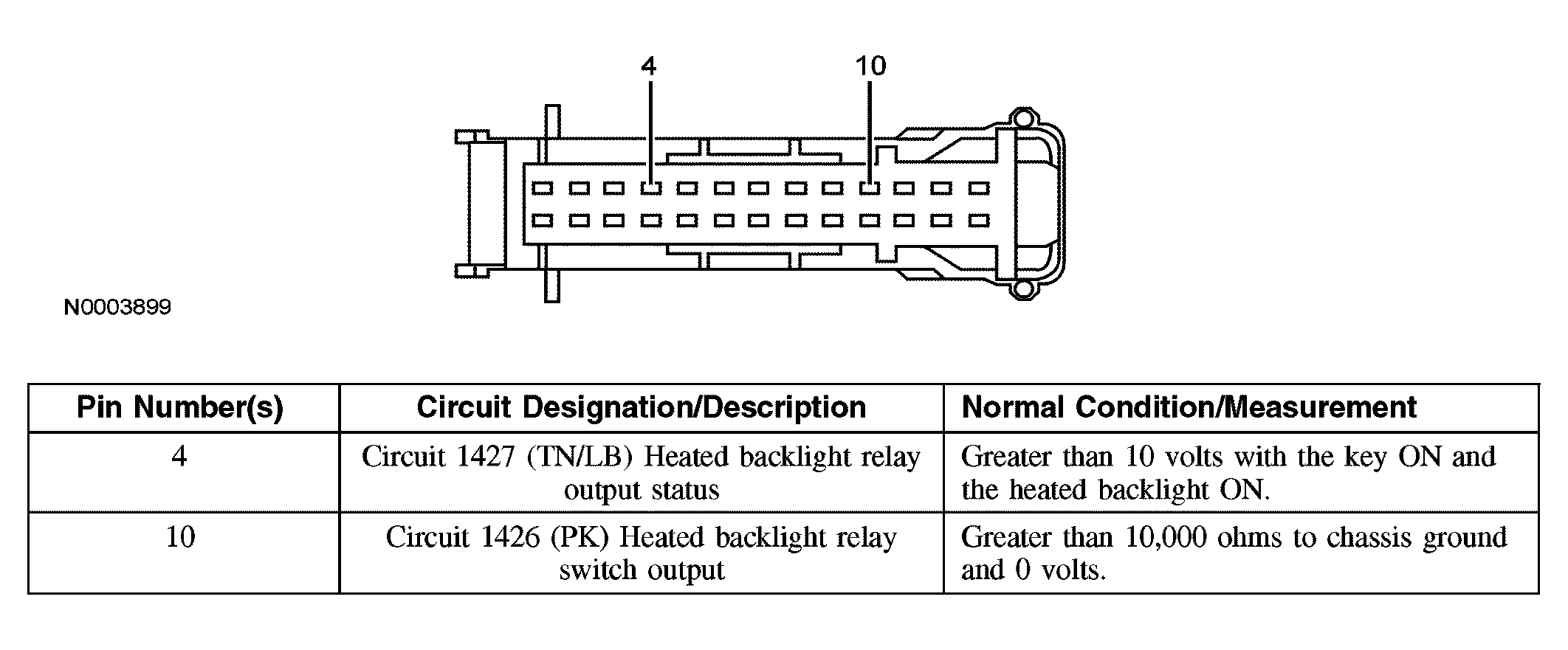

Fig 13: Electronic Automatic Temperature Control (EATC) Module C228a Pins
