Differential Seals - LH: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: MERCON®, MERCON®V, MERCON®SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.
  1. Remove the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
    2. CAUTION: Be careful not to damage the case while removing the seal.

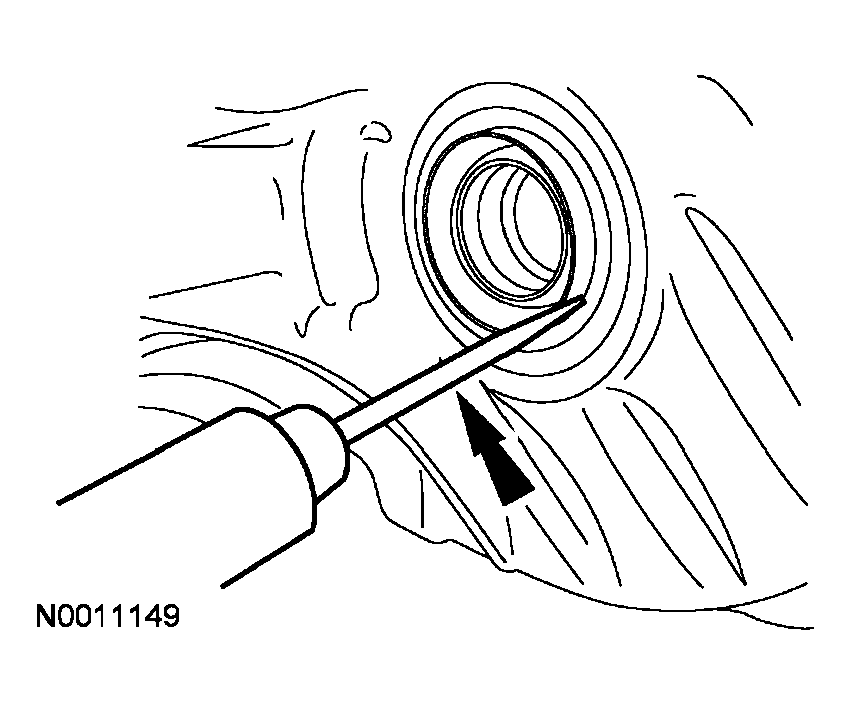

    Fig 1: Poking Small Hole In Seal
    G03991712Courtesy of FORD MOTOR CO.
  2. Using a suitable awl, poke a small hole in the seal.
  3. Using a suitable dent puller and slide hammer, remove the LH differential fluid seal.
