Torque Converter Hub Seal: Disassembly

WARNING: This page is about a different car, the 2005 Mercury Montego and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. For additional information, refer to TRANSAXLE .
  2. Remove the torque converter.

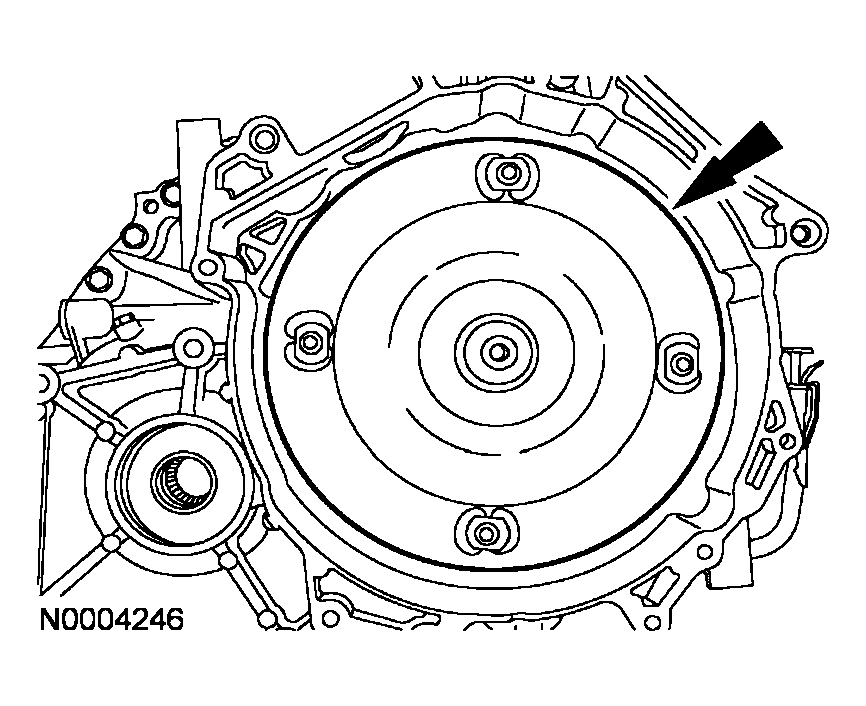

    Fig 1: Removing Torque Converter
    G03991828Courtesy of FORD MOTOR CO.
  3. Using the special tools, remove the torque converter hub seal.

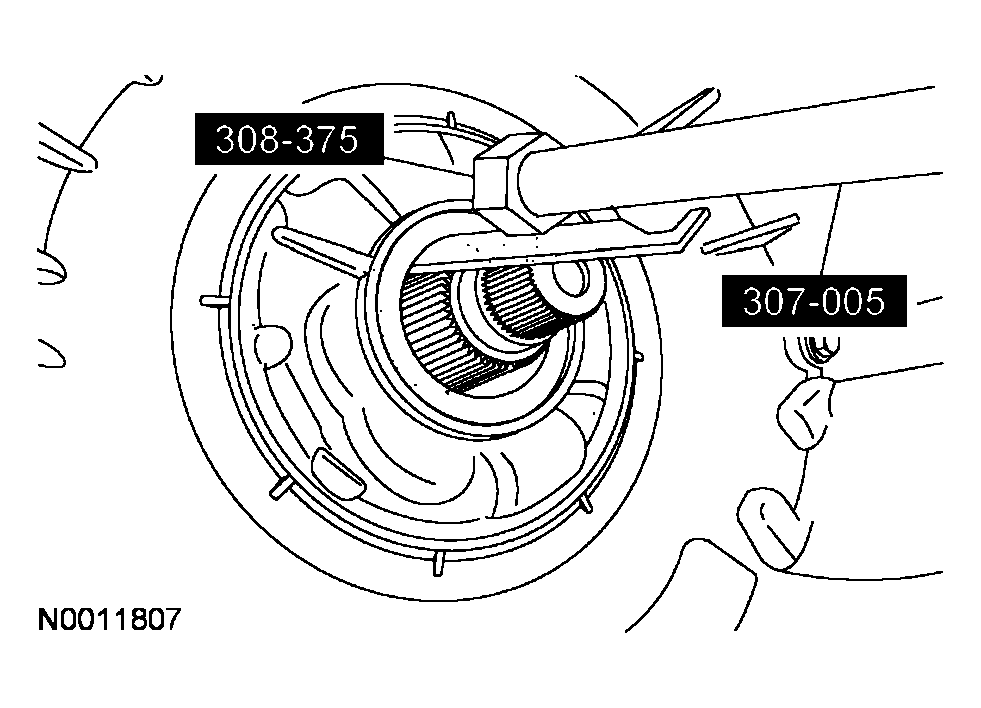

    Fig 2: Removing Torque Converter Hub Seal
    G03991829Courtesy of FORD MOTOR CO.
