Shift Control Solenoids (SSC, SSD, SSE, SSF)
WARNING: This page is about a different car, the 2005 Mercury Montego and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

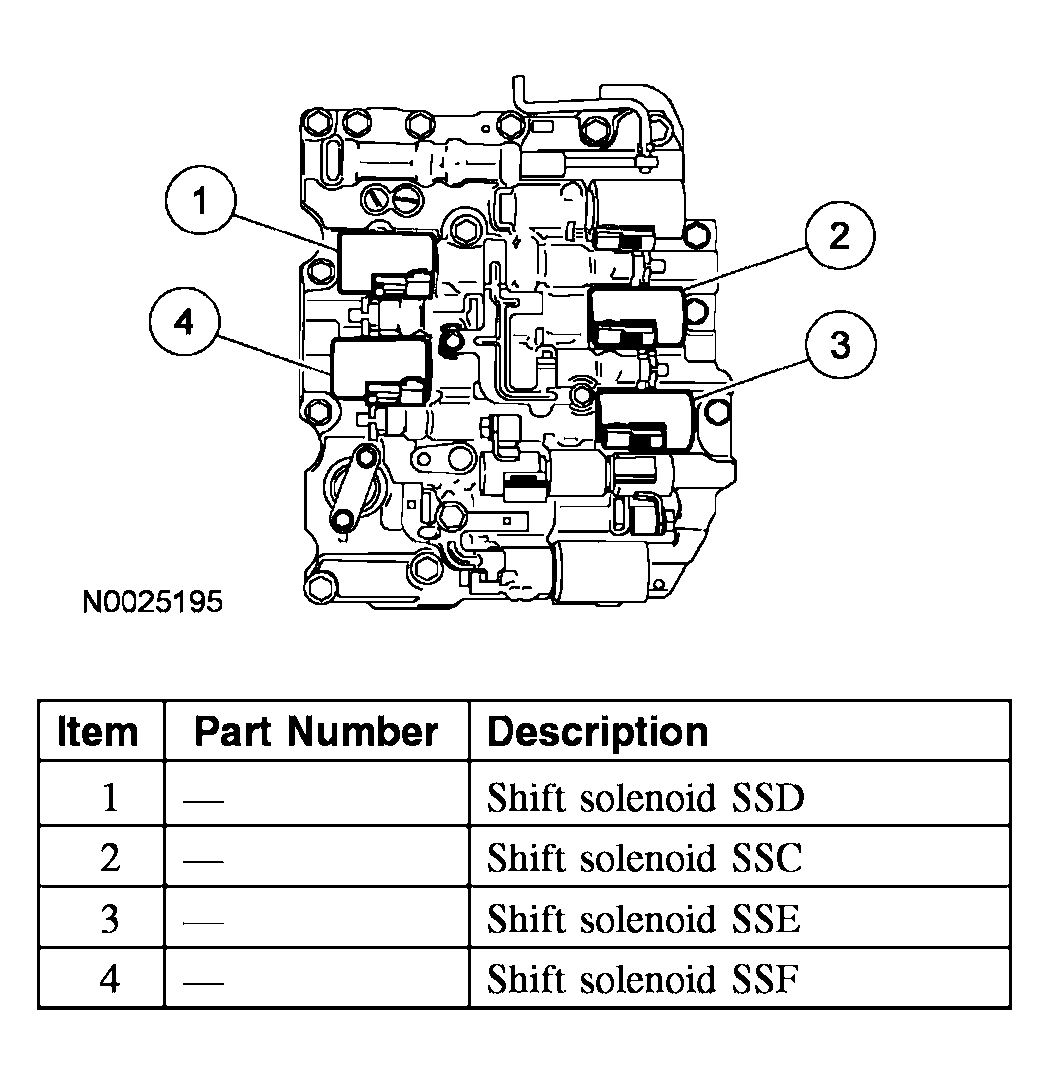

The shift control solenoid assembly (SSC, SSD, SSE, SSF) is installed on the front valve body. The solenoids linearly control hydraulic pressure in response to signals, output from the TCM. Through this, it controls hydraulic pressure to the clutch (C1, C2, C3) and brakes (B1) for smooth shifting. According to the combination of ON or OFF status of the shift control solenoid assembly, the transmission shifts from 1st gear into 6th gear and vice versa. As a fail-safe function, if any shift control solenoid assembly abnormality occurs, the TCM will disable the current to the shift control solenoids.
