Removal and Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation of a new receiver/drier is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the receiver/drier.
- Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer JACKING & LIFTING .

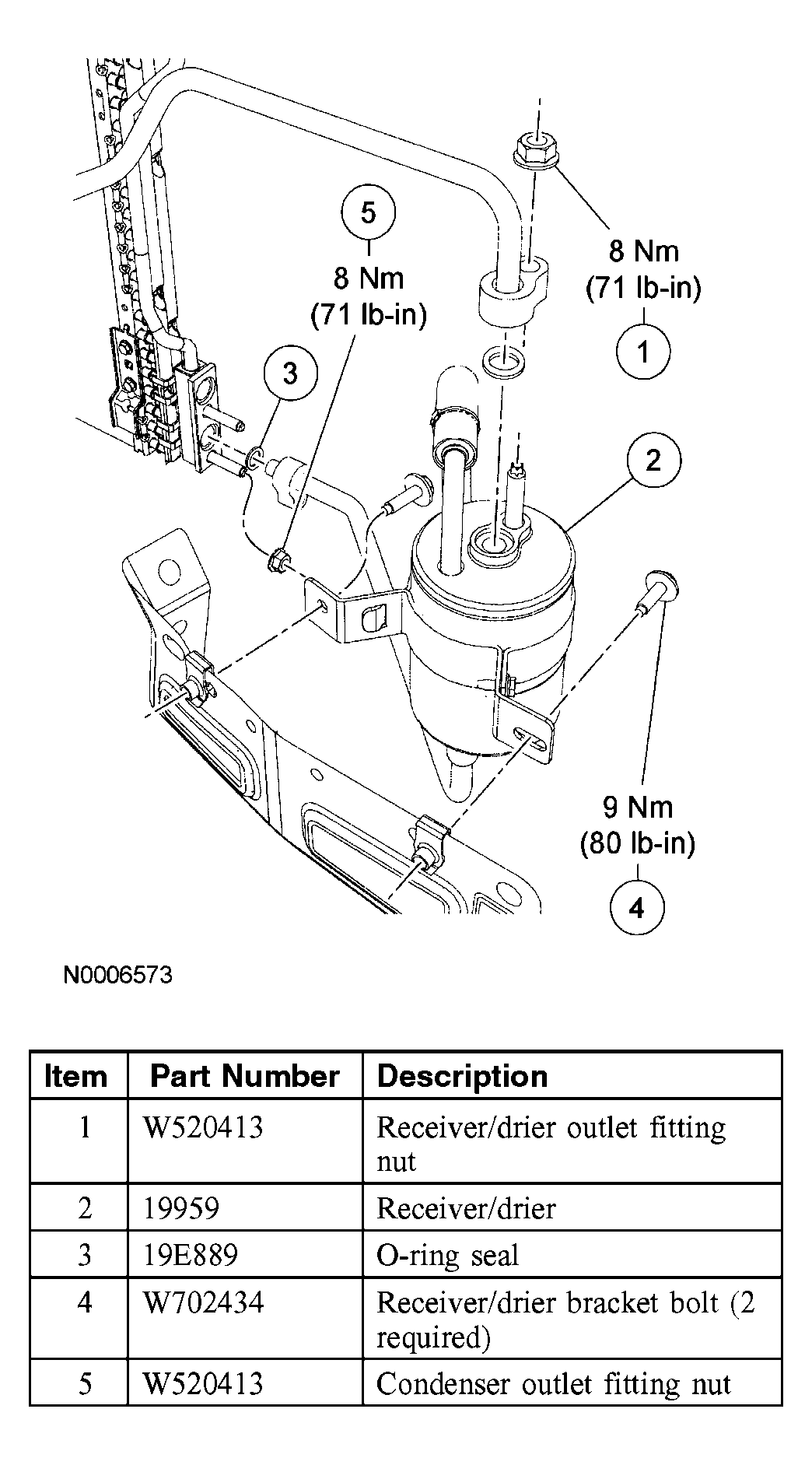

- Remove the condenser outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal.
- To install, tighten to 8 Nm (71 lb-in).
- Remove the receiver/drier outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal.
- To install, tighten to 8 Nm (71 lb-in).
- Remove the 2 receiver/drier bracket bolts.
- To install, tighten to 9 Nm (80 lb-in).
- Remove the receiver/drier.
- To install, reverse the removal procedure.
- Install new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
- Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
