Clutch and Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

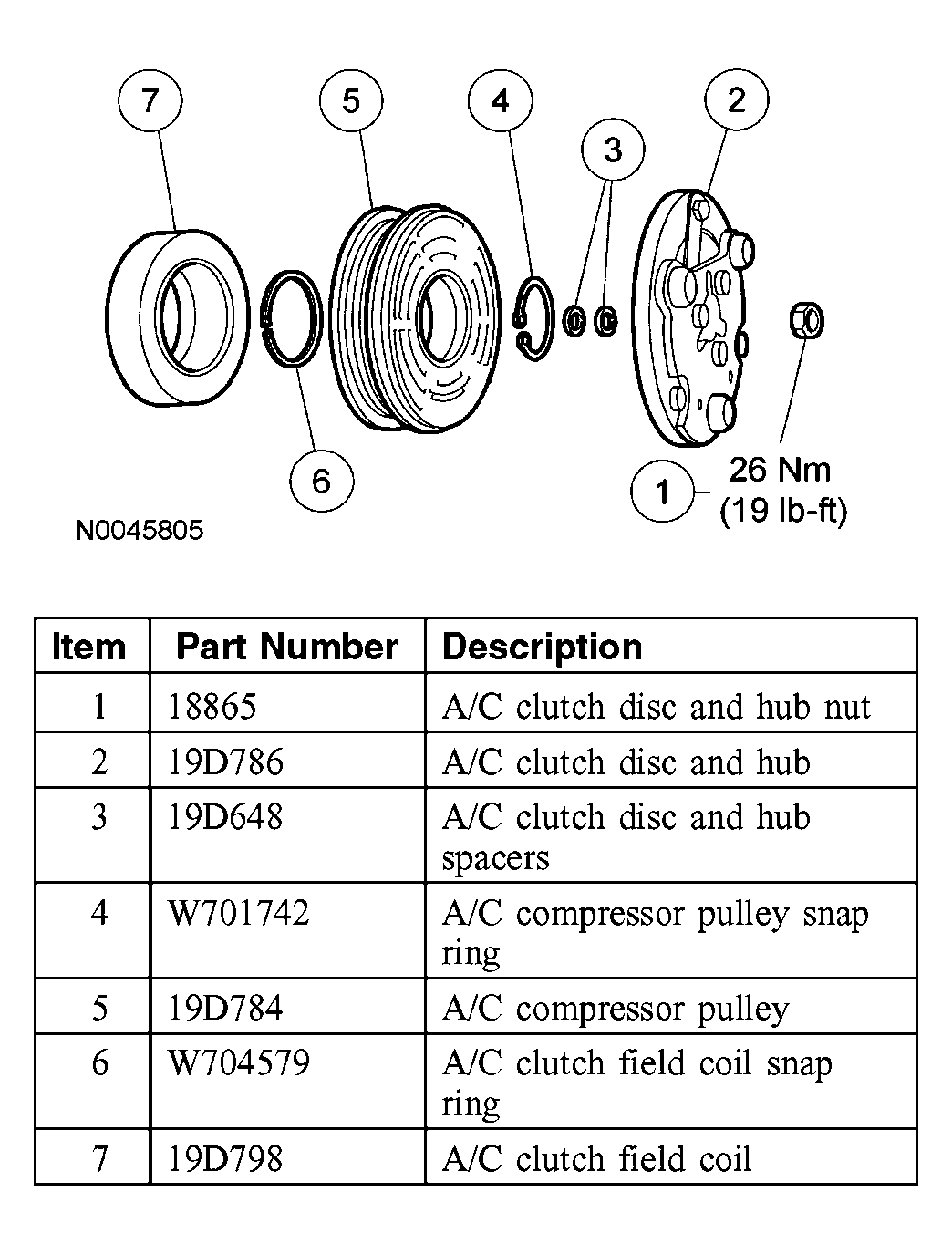

Fig 1: Removing/Installing Clutch And Clutch Field Coil
G03992446Courtesy of FORD MOTOR CO.
  1. Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR .
  2. Remove the A/C clutch disc and hub nut.
    1. Hold the A/C clutch disc and hub with the special tool.

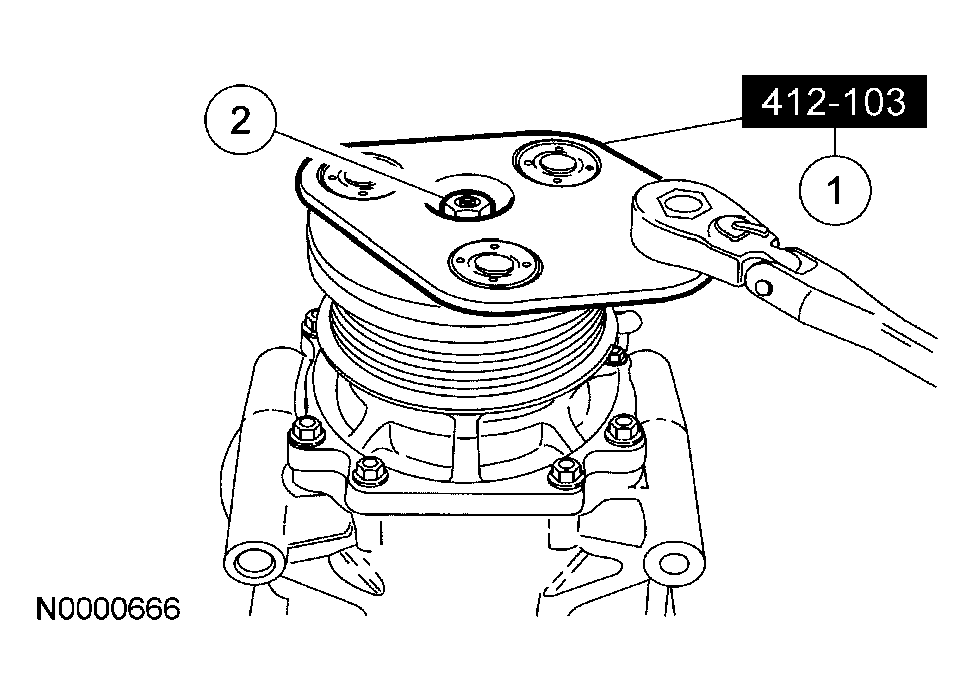

      Fig 2: Holding A/C Clutch Disc And Hub
      G03992447Courtesy of FORD MOTOR CO.
    2. Remove the nut.
  3. Remove the A/C clutch disc and hub.
  4. Remove the A/C compressor pulley snap ring.
    5. CAUTION: Do not use air tools. Damage to the A/C compressor pulley may result.
    Fig 3: Removing A/C Clutch Pulley Using Special Tool
    G03879387Courtesy of FORD MOTOR CO.
  5. Using the special tool, remove the A/C clutch pulley.
  6. Remove the A/C clutch field coil snap ring.
  7. Remove the A/C clutch field coil.
    1. Remove the bolt.
    2. Remove the thermal limiter and A/C clutch field coil.
      Fig 4: Removing A/C Clutch Field Coil
      G03992449Courtesy of FORD MOTOR CO.
