Special Tool(s)

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATION

G03950580
3-Bar Engine Support Kit 303-F072
G03956896
Lifting Brackets, Engine 134-00243 or equivalent

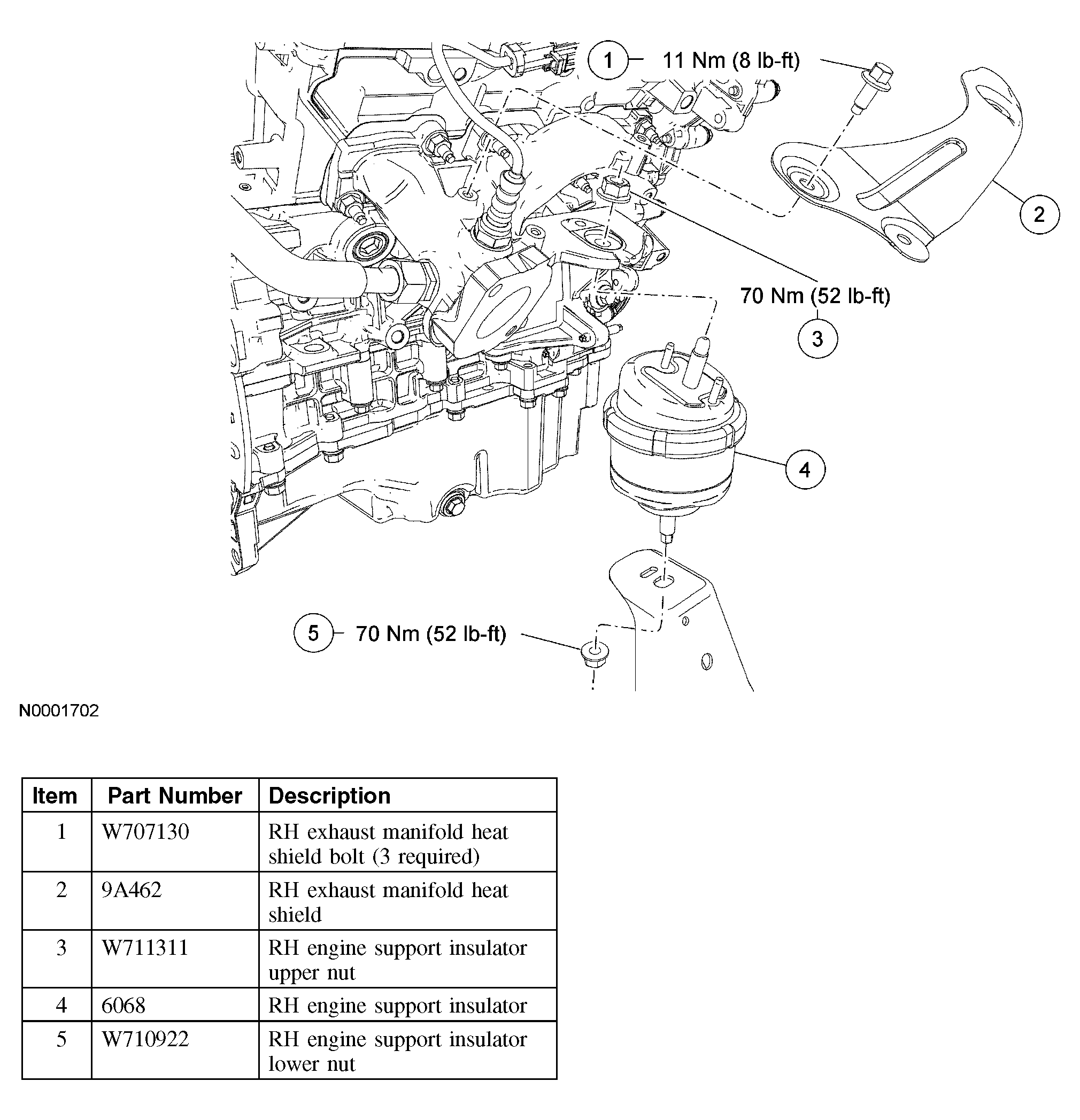

Fig 1: Identifying Engine Support Insulators - RH And Components
G03990201Courtesy of FORD MOTOR CO.
