Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Remove the pin-type retainers and the RH fender splash shield.
  4. Use the special tool to hold the crankshaft pulley and remove the crankshaft pulley bolt.

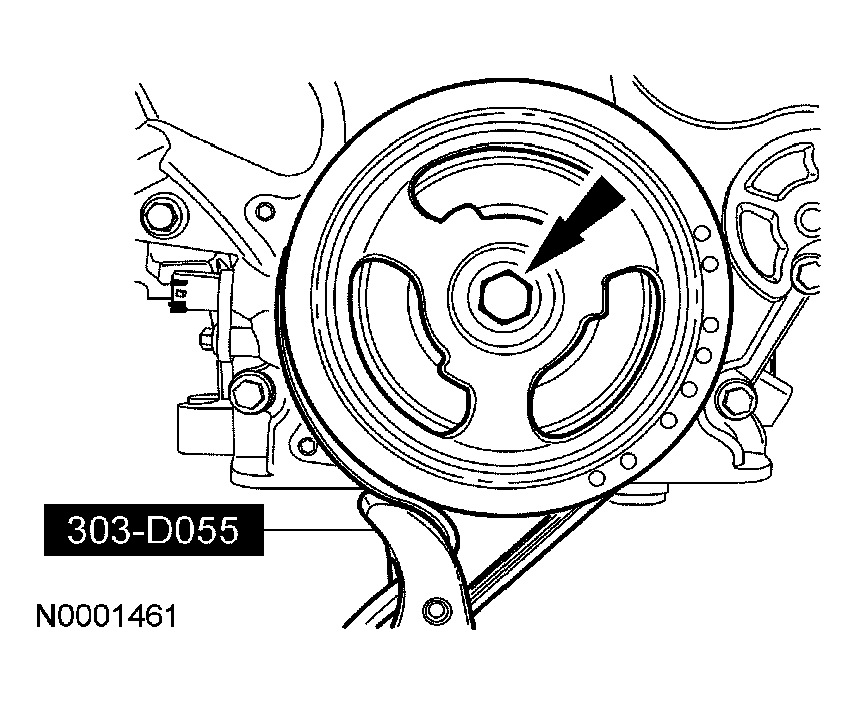

    Fig 1: Removing Crankshaft Pulley Bolt
    G03990098Courtesy of FORD MOTOR CO.
  5. Using the special tool, remove the crankshaft pulley.

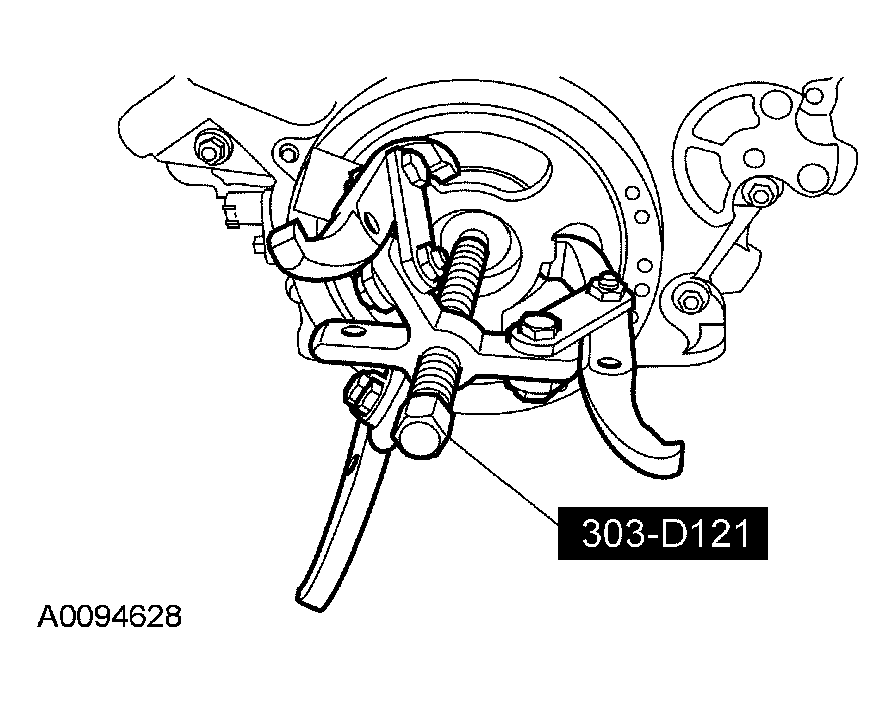

    Fig 2: Removing Crankshaft Pulley
    G03990099Courtesy of FORD MOTOR CO.
