Power Steering Pump Pulley: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the windshield washer motor electrical connector.
  2. Remove the 2 bolts and position aside the degas bottle.
    • Disconnect the fill sensor electrical connector.
  3. Release the 2 retainers and position aside the engine wiring harness.
    • Disconnect the 4 electrical connectors.

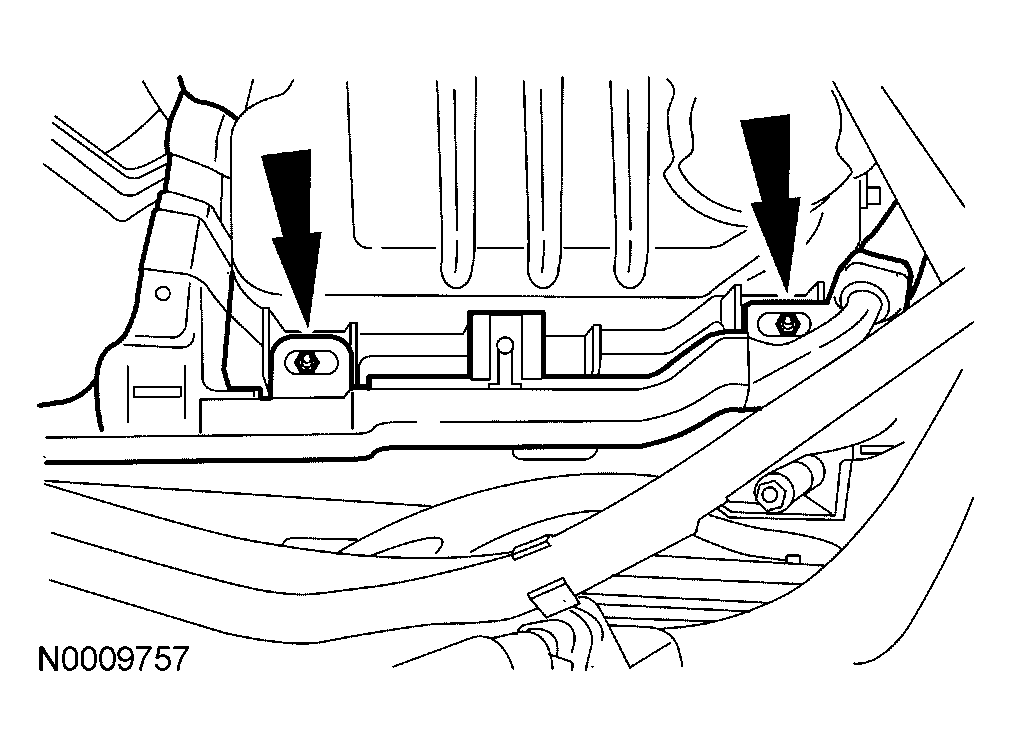

      Fig 1: Releasing Retainers And Positioning Aside Engine Wiring Harness
      G03988550Courtesy of FORD MOTOR CO.
  4. Remove the engine accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  5. Using the special tool, remove the power steering pump pulley.

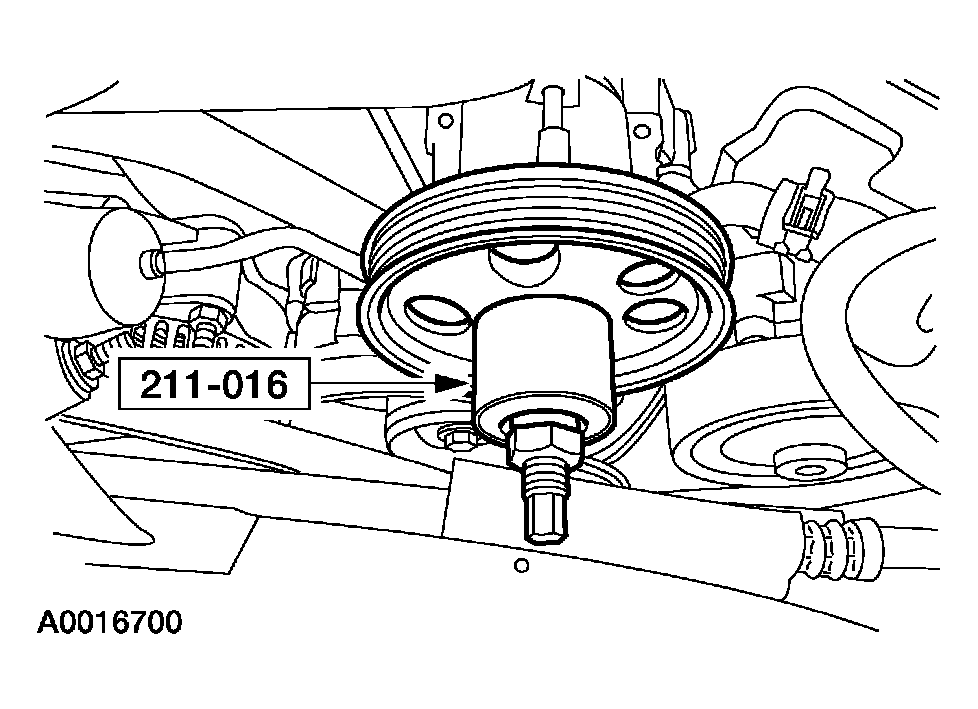

    Fig 2: Removing Power Steering Pump Pulley
    G03954661Courtesy of FORD MOTOR CO.
