Halfshaft - RH: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the front axle wheel end nut and washer. Discard the front axle wheel end nut.

Fig 1: Locating Front Axle Wheel End Nut And Washer
Courtesy of FORD MOTOR CO.

CAUTION: To prevent damage to the brake hose, do not allow the disc brake caliper and anchor assembly to hang suspended from the brake hose.

NOTE: Support the steering stop when removing the disc brake caliper anchor bolts.

Fig 2: Removing Disc Brake Caliper Anchor Bolts And Disc Brake Caliper And Anchor Assembly

Courtesy of FORD MOTOR CO.

Remove the disc brake caliper anchor bolts and the disc brake caliper and anchor assembly. Using mechanic's wire, position the disc brake caliper and anchor assembly aside.
Using the special tool, separate the halfshaft from the hub.

Fig 3: Separating Halfshaft From Hub
Courtesy of FORD MOTOR CO.

NOTE: Do not reuse the lower ball joint nut.

Fig 4: Removing And Discard Lower Ball Joint Nut

Courtesy of FORD MOTOR CO.

Remove and discard the lower ball joint nut, then disconnect the lower control arm.
Remove the 2 halfshaft bearing nuts.

Fig 5: Removing Halfshaft Bearing Nuts
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the halfshaft seal.

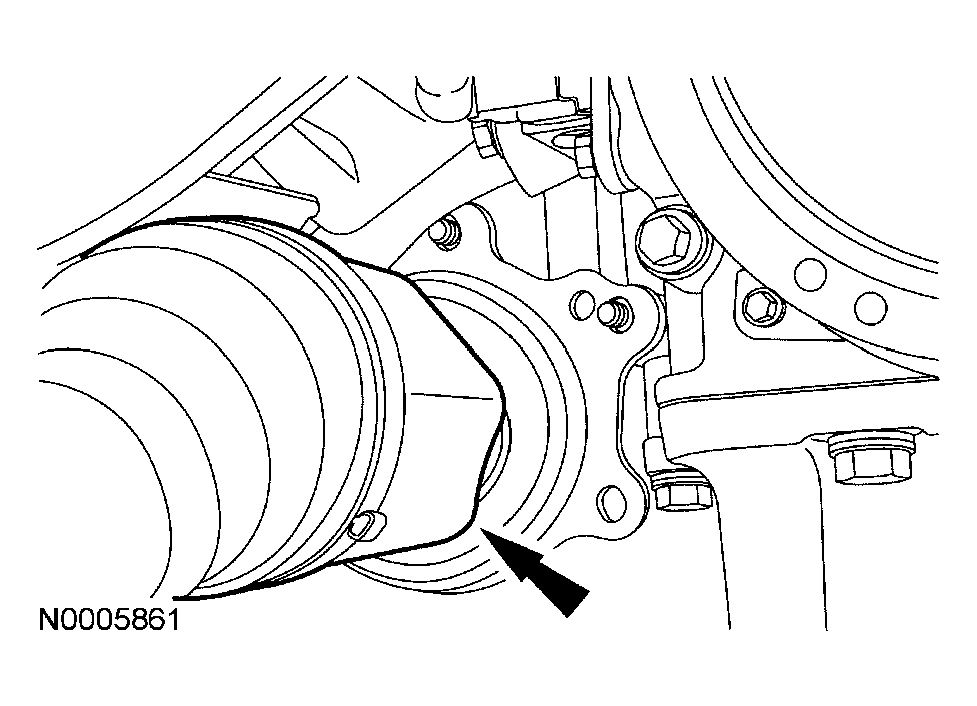

Fig 6: Removing Halfshaft

Courtesy of FORD MOTOR CO.

Remove the halfshaft.
Inspect the halfshaft seal. If necessary, install a new halfshaft seal. For additional information, refer to TRANSFER CASE - POWER TRANSFER UNIT (PTU) , AUTOMATIC TRANSAXLE/TRANSMISSION - CVT or AUTOMATIC TRANSAXLE - 6 SPEED .
