Lifting Points - Frame Contact Lift, Single-Post Lift, Two-Post Lift
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
All 4 hoist contact points must contact the designated vehicle lifting locations. Using other areas to lift the vehicle may cause damage to the vehicle or personal injury. Failure to follow these instructions may result in personal injury.
CAUTION:
Under no circumstances should the vehicle be lifted by the front control arms or rear control arms. Severe damage to the vehicle could result.
NOTE:
Adapters may be necessary to clear vehicle components to lift the vehicle safely. The adapters must be placed at the 4 designated contact points. Position the adapters so they are centered on the adapter contact area.

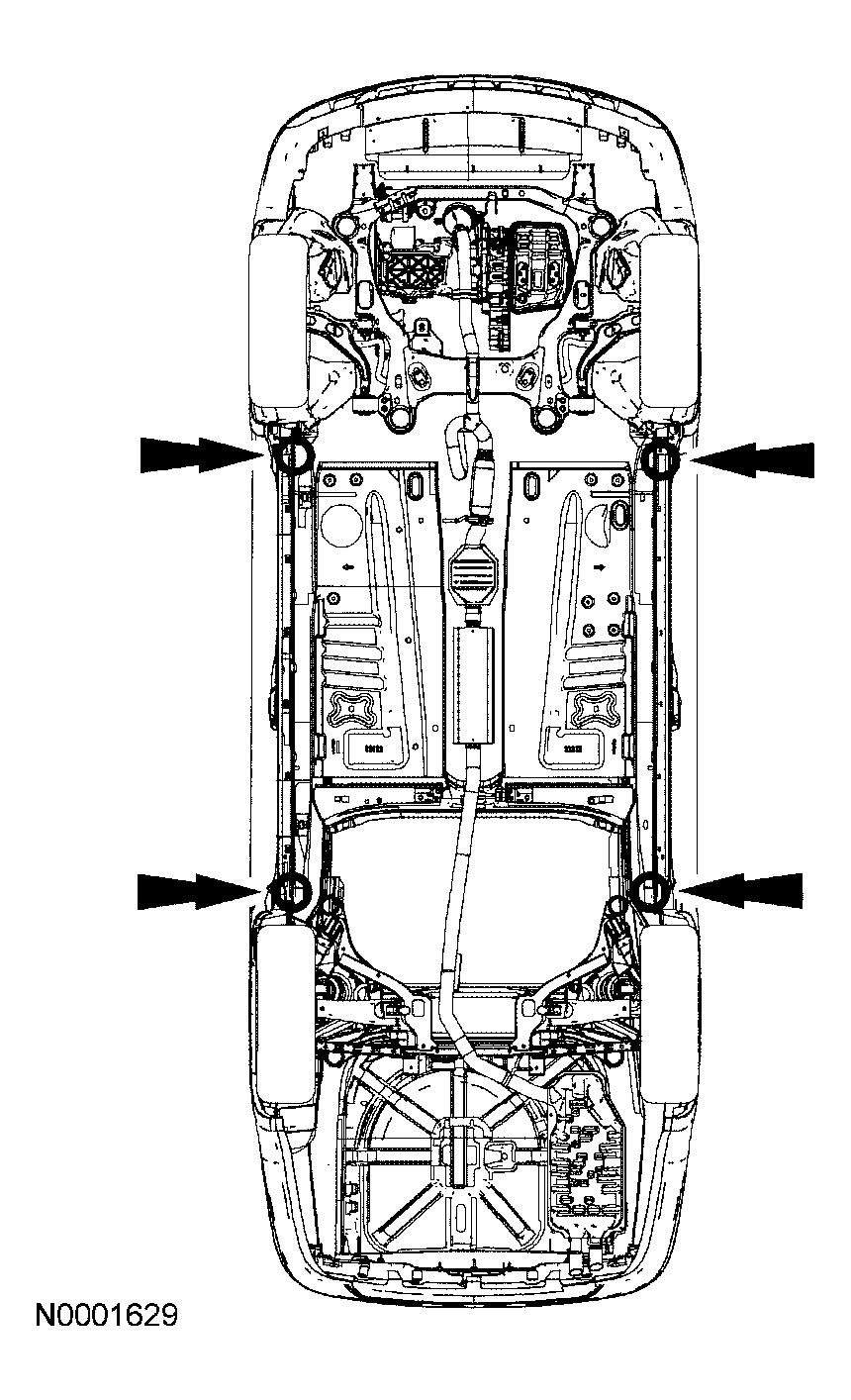

Lift the vehicle at the applicable lift points.
