Recommended Procedure:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Ford RV Cutaway, 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Open the drain valve on the fuel control module and fill a clear container until it is half full. Close the drain valve.

Observe the water in fuel indicator. If the indicator is illuminated, the fuel is probably contaminated with water.

Flow out of the drain should be a steady stream. Insufficient flow could indicate fuel supply or fuel system problems.

Inspect the fuel in the container. It should be clear, not cloudy. It also should be free of water and contaminants. Dyed red or blue fuel indicates off-highway fuel.

Some sediment and water may be present in the fuel sample if the fuel filter has not been replaced for a prolonged period of time and/or if the sediment and water have not been drained recently. If that is the case, a second sample may be required to determine fuel quality.

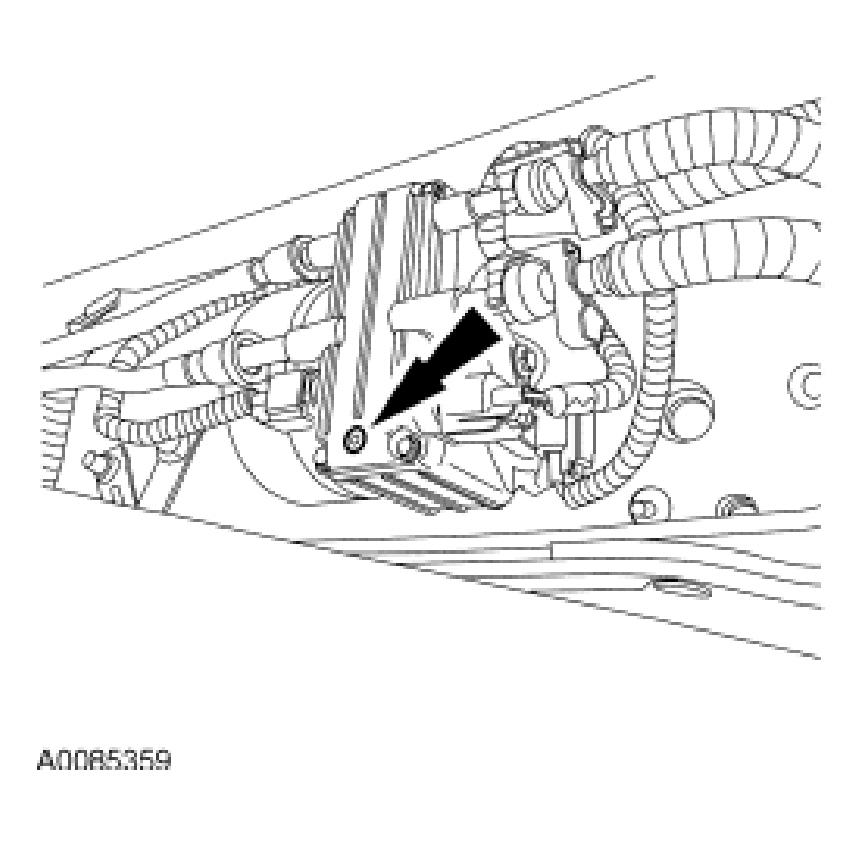

Fig 1: Locating F-Super Duty/Excursion Fuel Control Module Drain Valve
G03982215Courtesy of FORD MOTOR CO.
Fig 2: Locating E-Series Fuel Control Module Drain Valve
G03982216Courtesy of FORD MOTOR CO.
