Boost Pressure Gauge

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Ford RV Cutaway, 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

The boost pressure gauge is controlled by the instrument cluster. The PCM sends a message through the controller area network (CAN) to the instrument cluster indicating engine boost pressure.

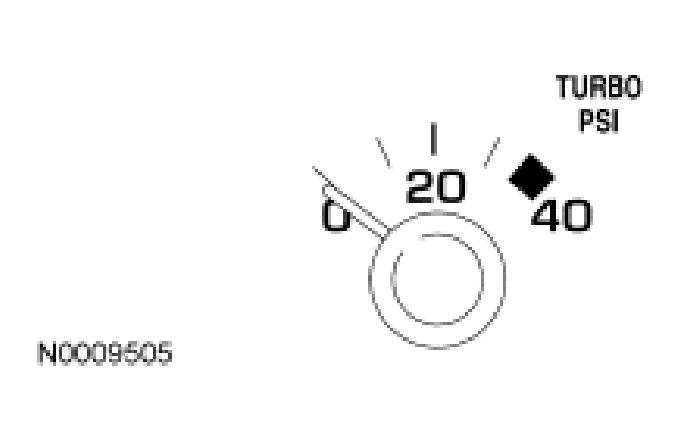

Fig 1: Identifying Boost Pressure Gauge
G03982190Courtesy of FORD MOTOR CO.
