Front Safety Belt - With Seat Integrated Restraints (SIR)

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver side shown, passenger side similar.

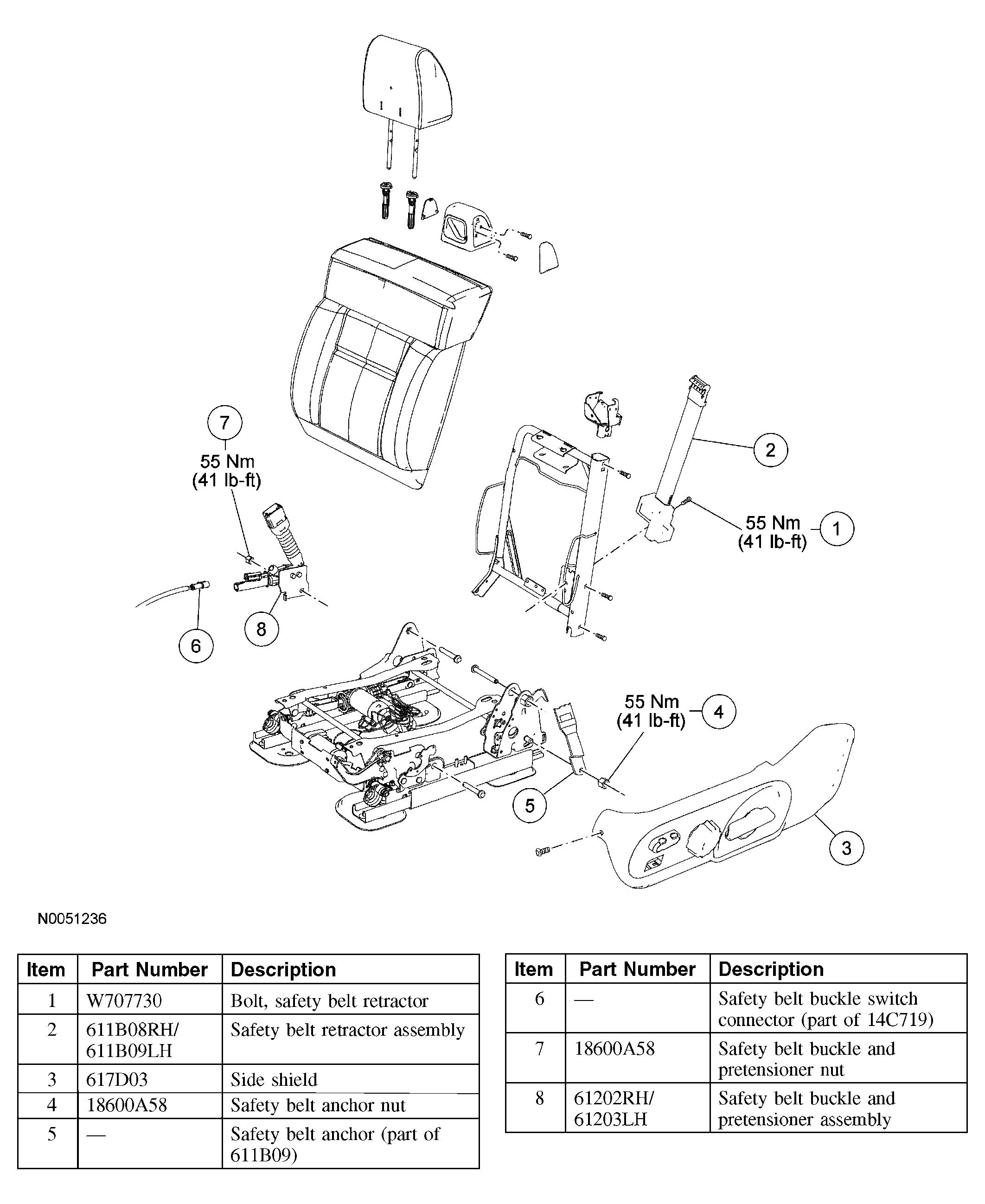

Fig 1: Exploded View Of Front Safety Belt - With Seat Integrated Restraints (SIR)
G03966535Courtesy of FORD MOTOR CO.
