Ignition Lock Cylinder: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS CHART

Item Specification
Multi-Purpose Grease Spray XL-5 ESB-M1C93-B

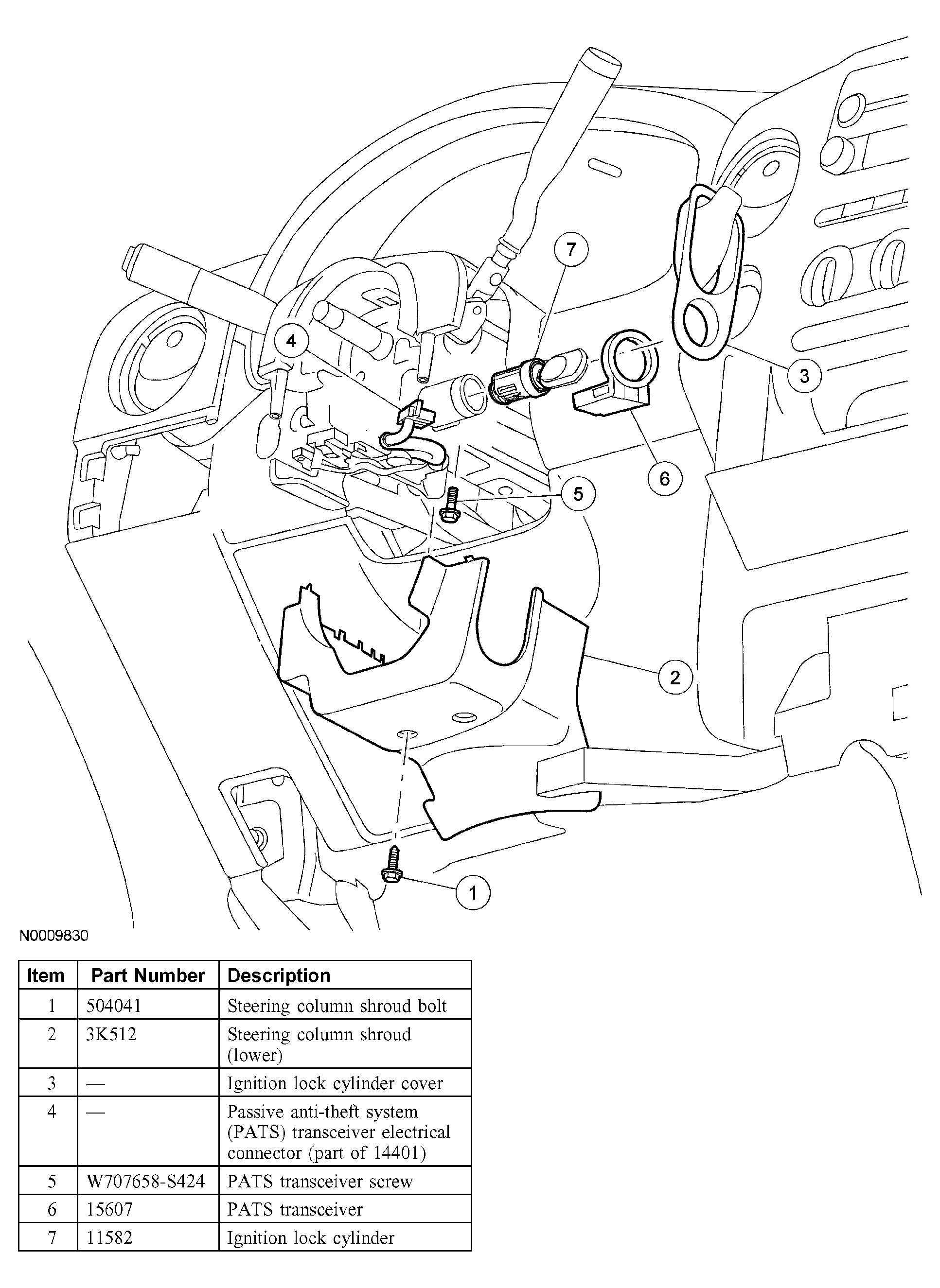

Fig 1: Identifying Ignition Lock Cylinder Components
G03966470Courtesy of FORD MOTOR CO.
