Remote Keyless Entry (RKE) Keypad C500

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

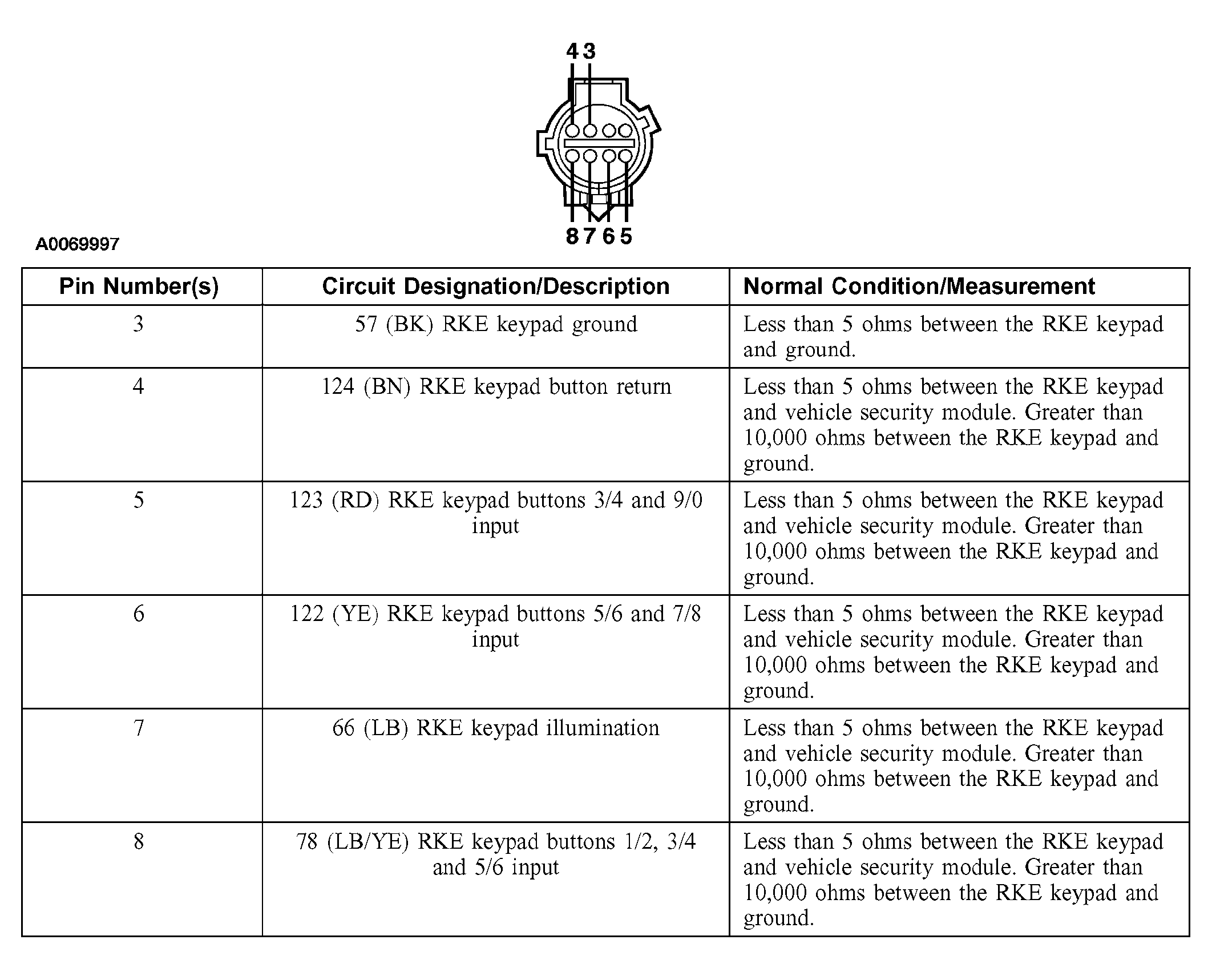

Fig 1: Identifying Remote Keyless Entry (RKE) Keypad C500 Connector
G03966423Courtesy of FORD MOTOR CO.
