Driver (C505) and Passenger (C605) Door Lock Control Switches

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

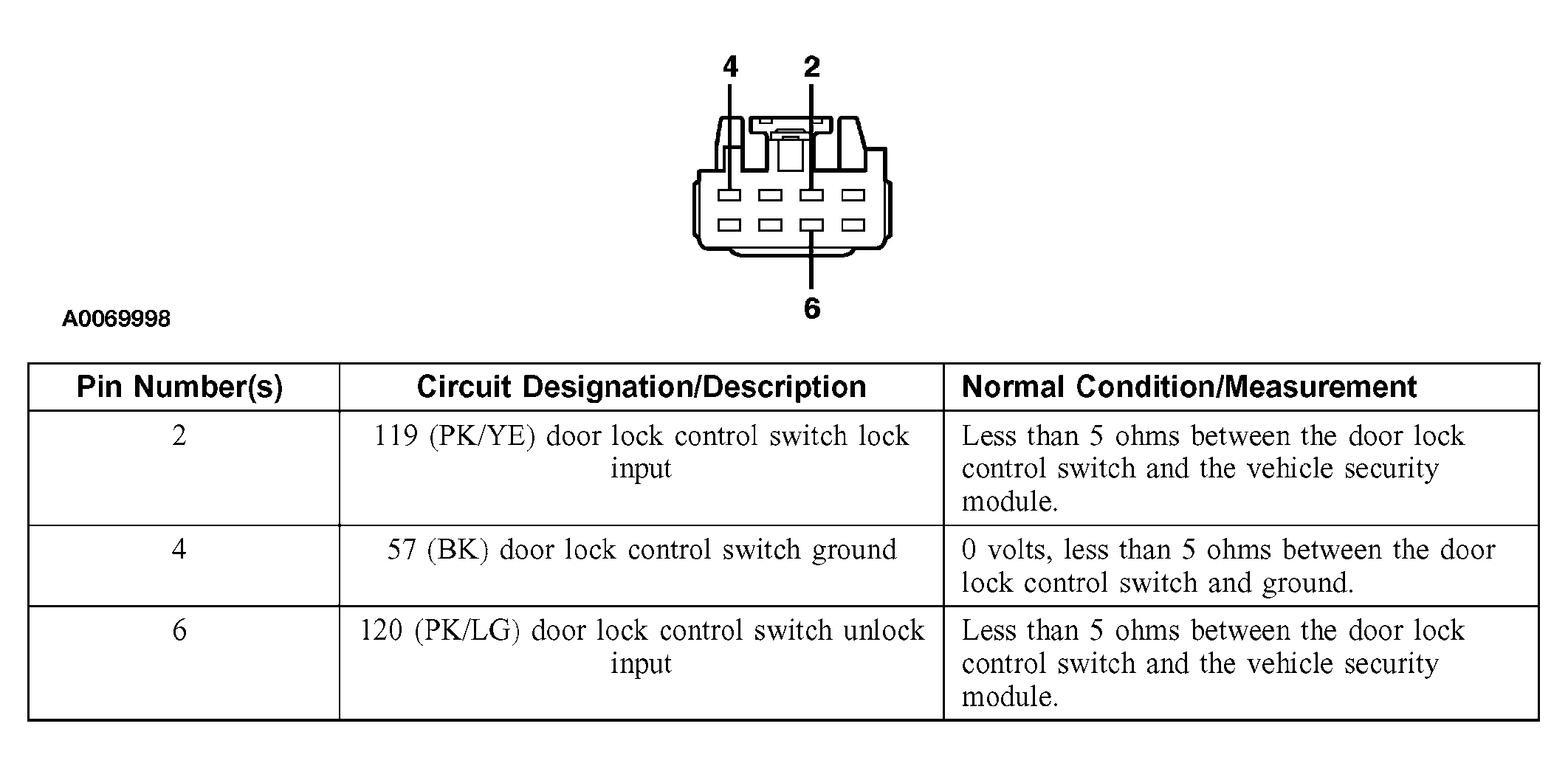

Fig 1: Identifying Driver (C505) And Passenger (C605) Door Lock Control Switches Connector
G03966424Courtesy of FORD MOTOR CO.
