Door Ajar Switches LH Front C526, RH Front C602, LH Rear C715, RH Rear C820

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

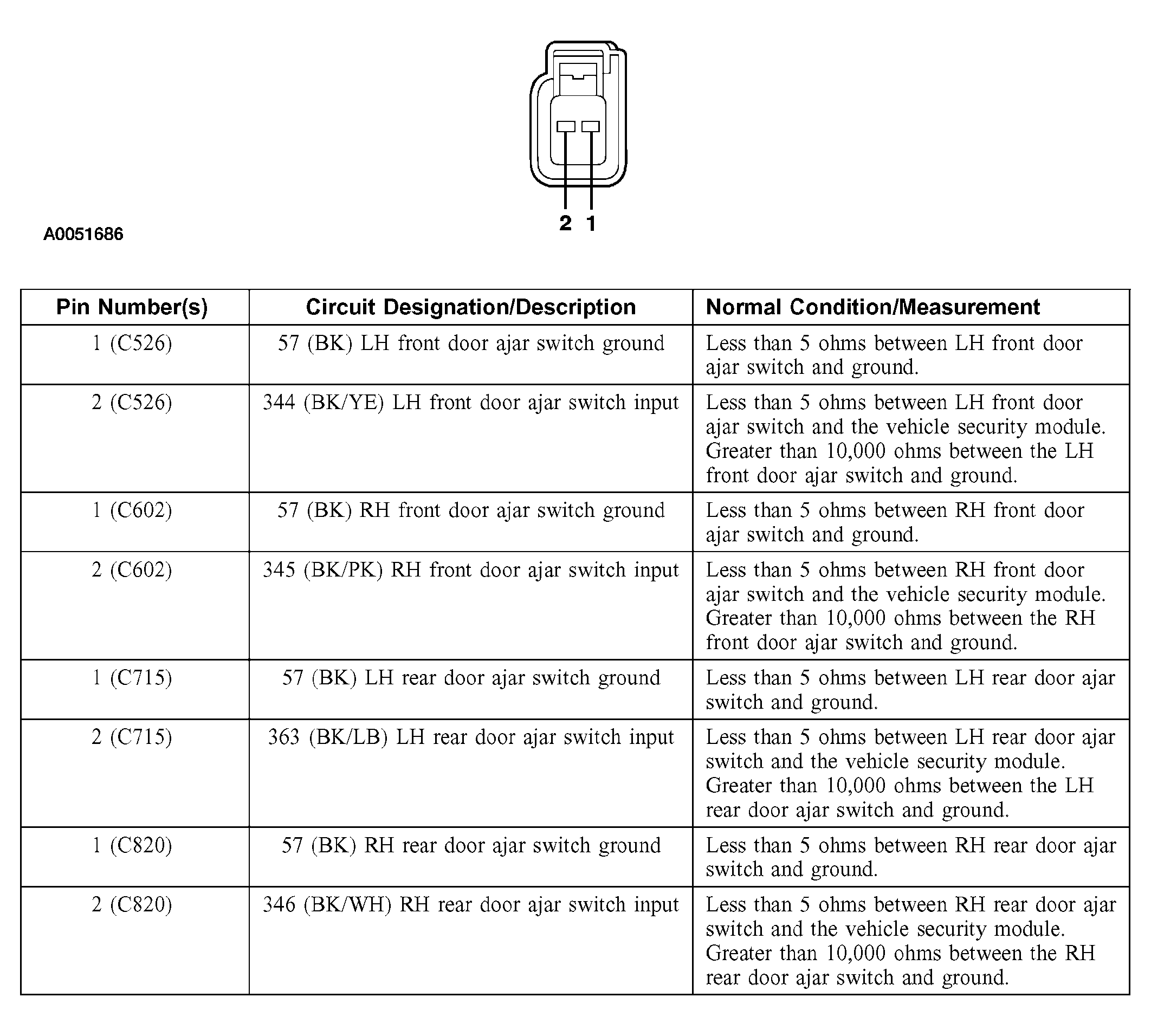

Fig 1: Identifying Door Ajar Switches LH Front C526, RH Front C602, LH Rear C715, RH Rear C820 Connector
G03966425Courtesy of FORD MOTOR CO.
