Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

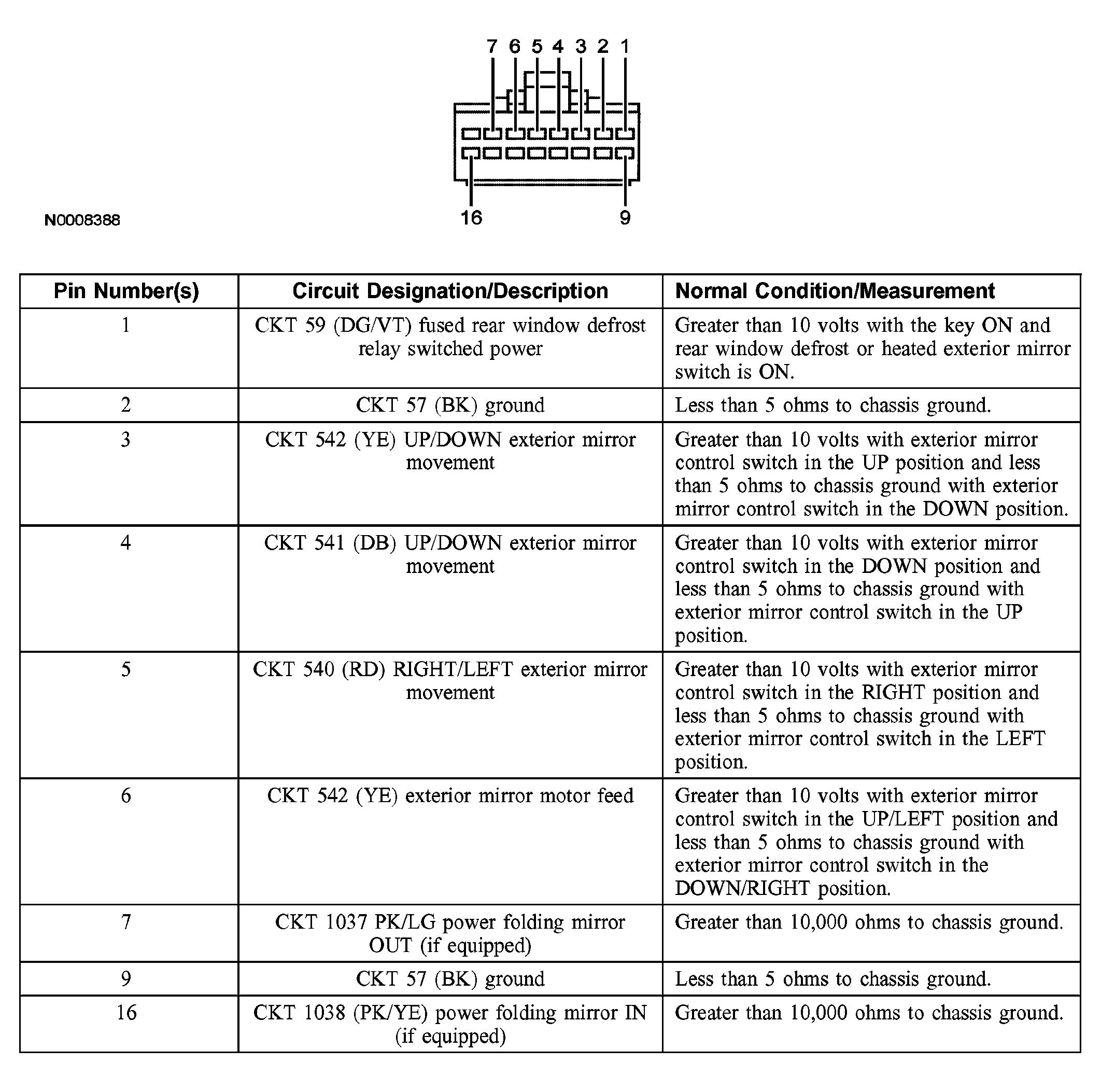

Fig 1: Identifying LH Exterior Mirror C521 Connector Pins

Courtesy of FORD MOTOR CO.

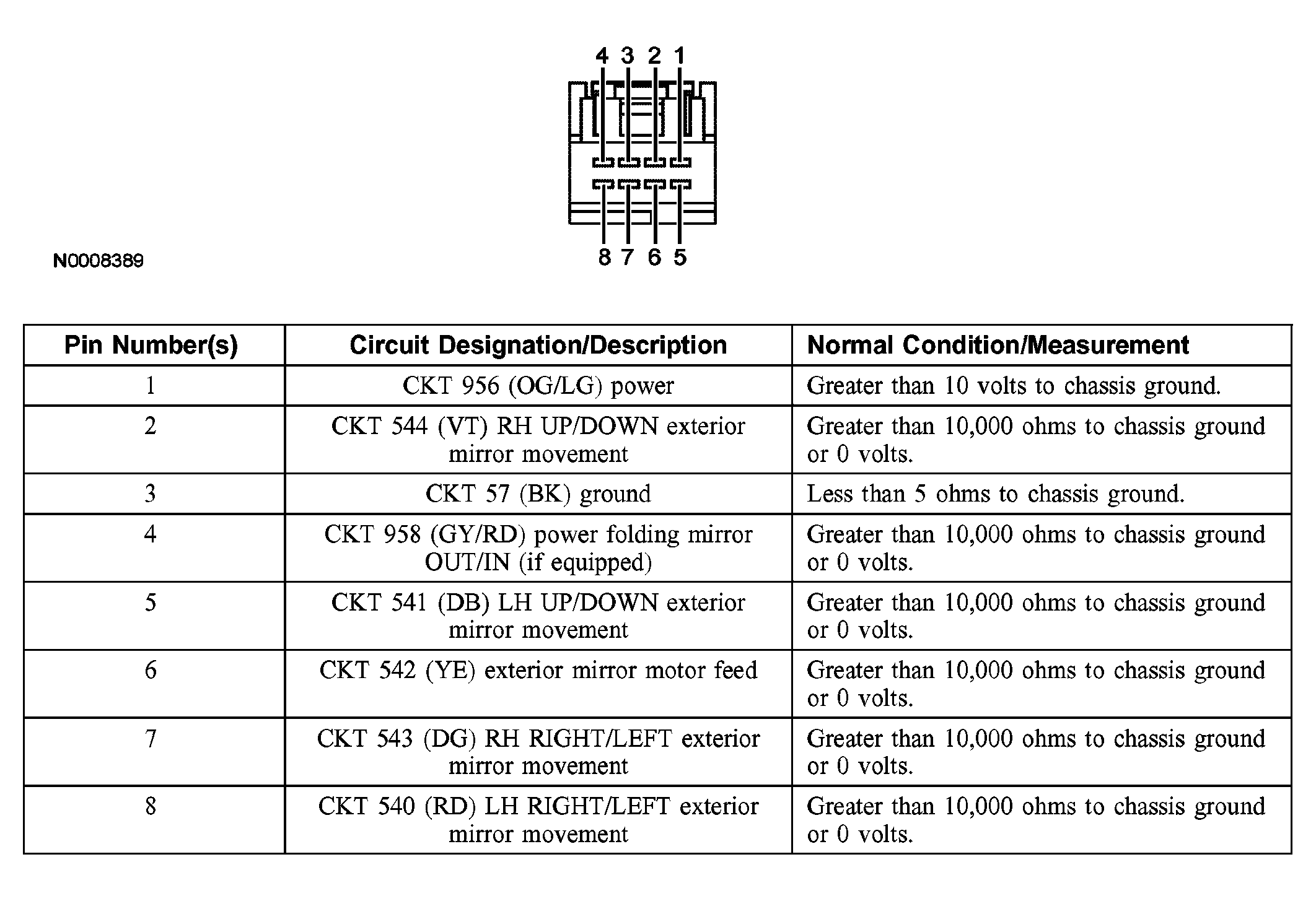

Fig 2: Identifying Exterior Mirror Control Switch C527 Connector Pins

Courtesy of FORD MOTOR CO.

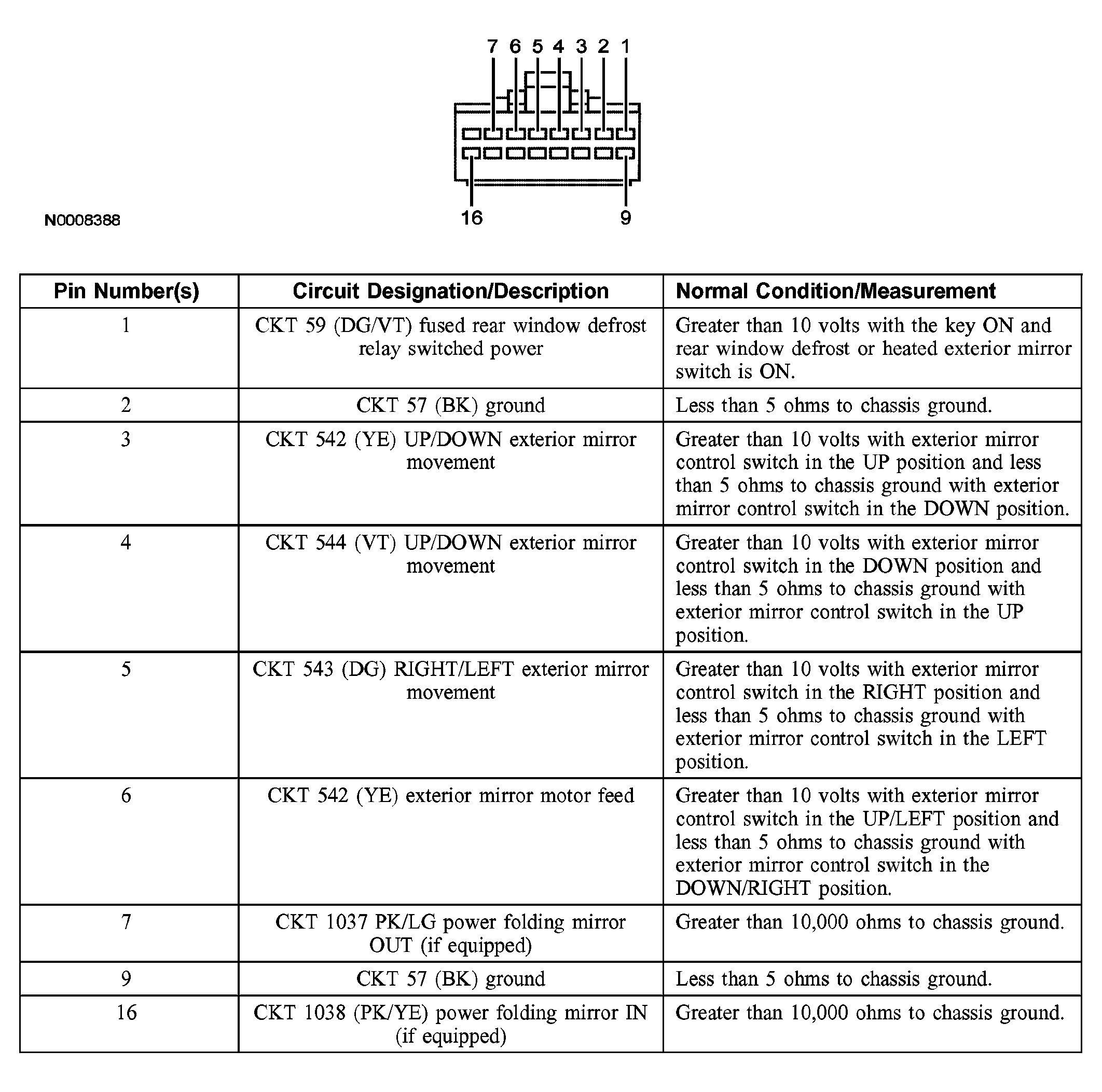

Fig 3: Identifying RH Exterior Mirror C615 Connector Pins

Courtesy of FORD MOTOR CO.

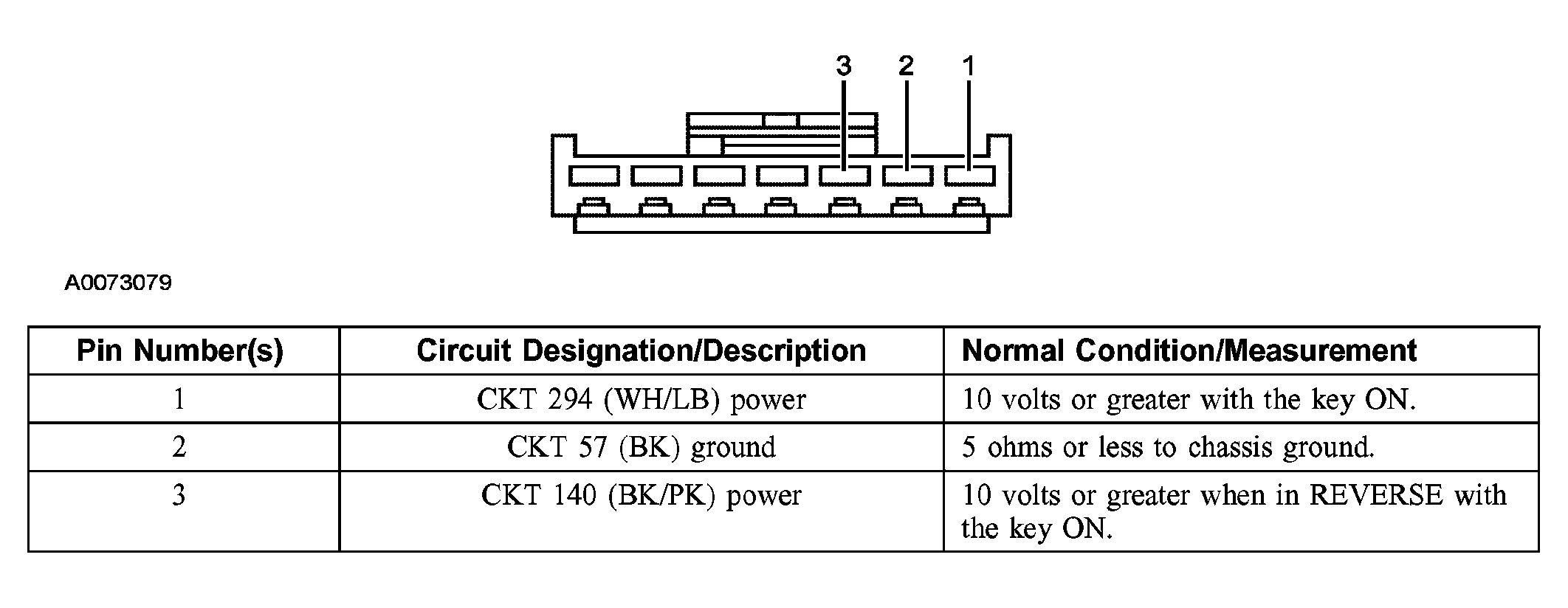

Fig 4: Identifying Auto-Dimming Mirror C911 Connector Pins

Courtesy of FORD MOTOR CO.

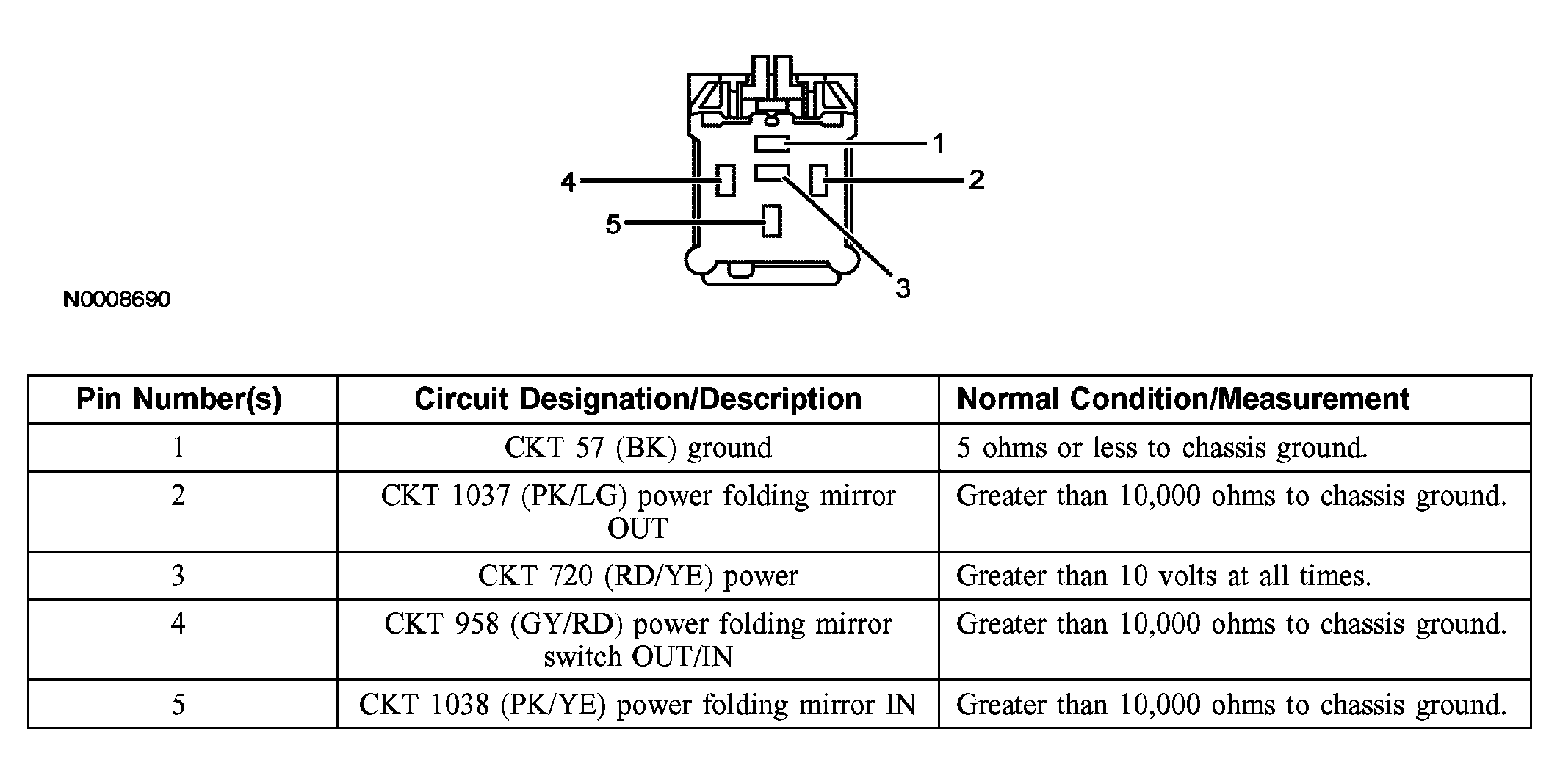

Fig 5: Identifying Power Folding Mirror Relay C3276 Connector Pins

Courtesy of FORD MOTOR CO.
