Door Speaker: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

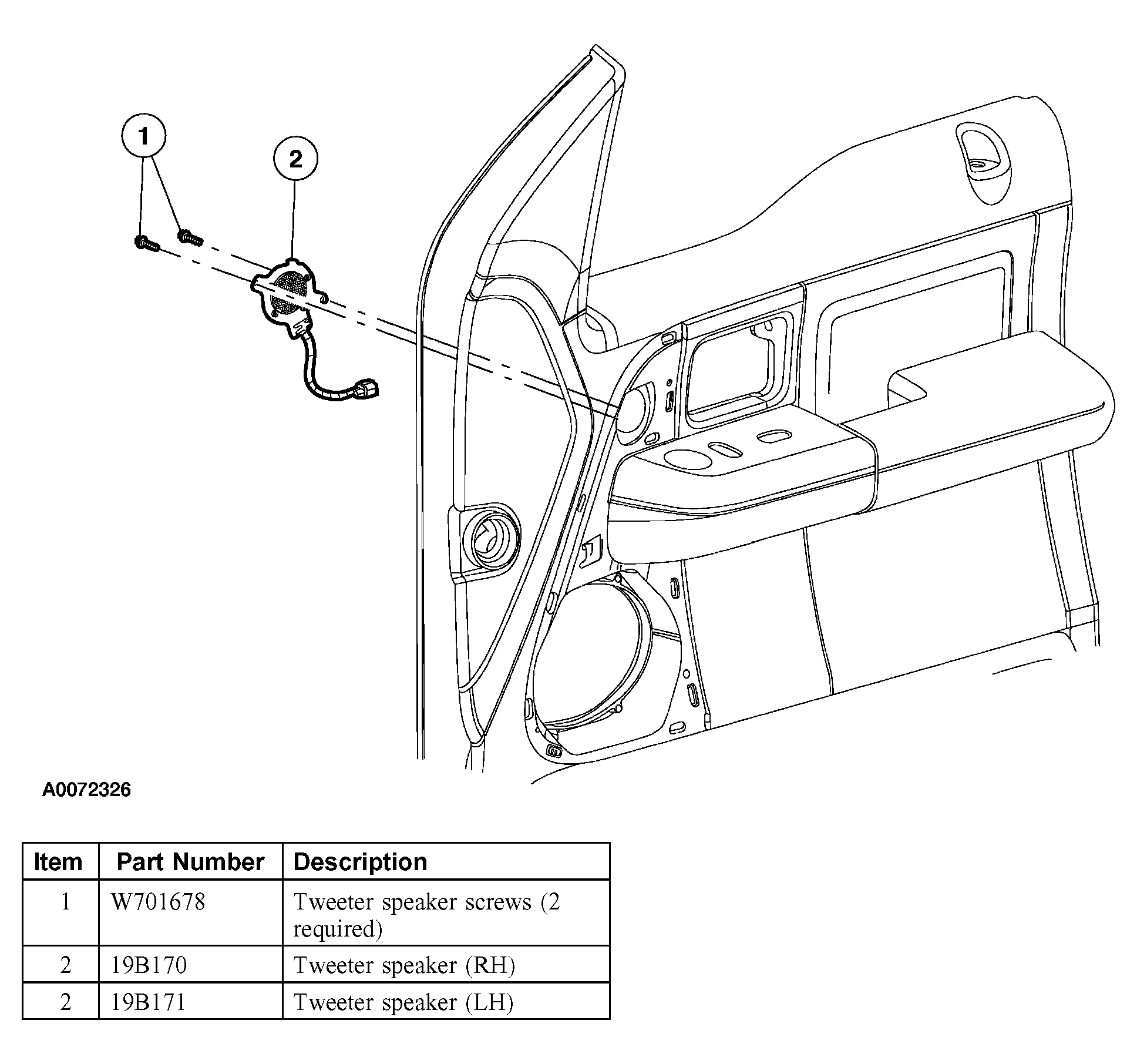

Fig 1: Removing Front Door Tweeter Speaker
G03965625Courtesy of FORD MOTOR CO.

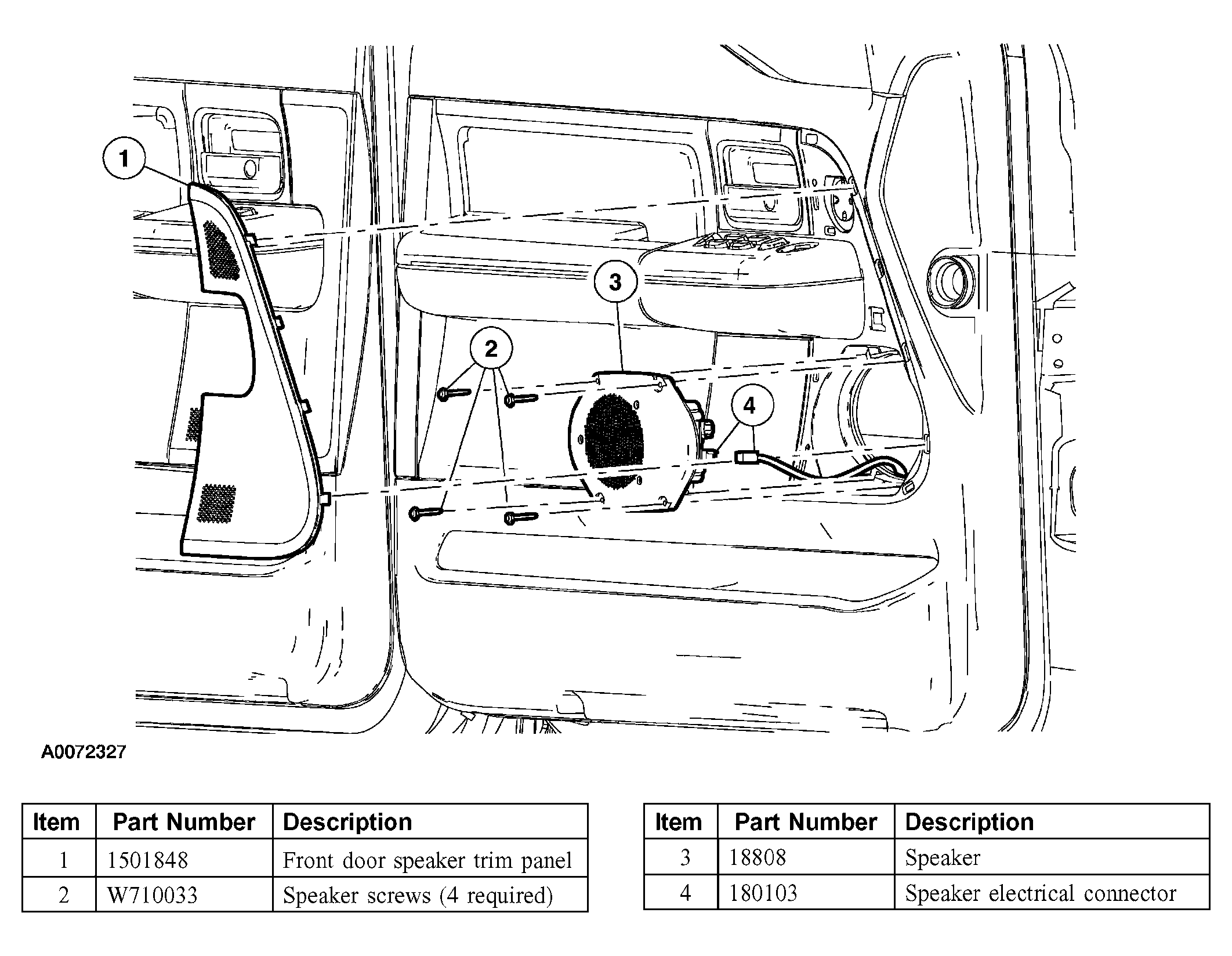

Fig 2: Removing Front Door Speaker
G03965626Courtesy of FORD MOTOR CO.

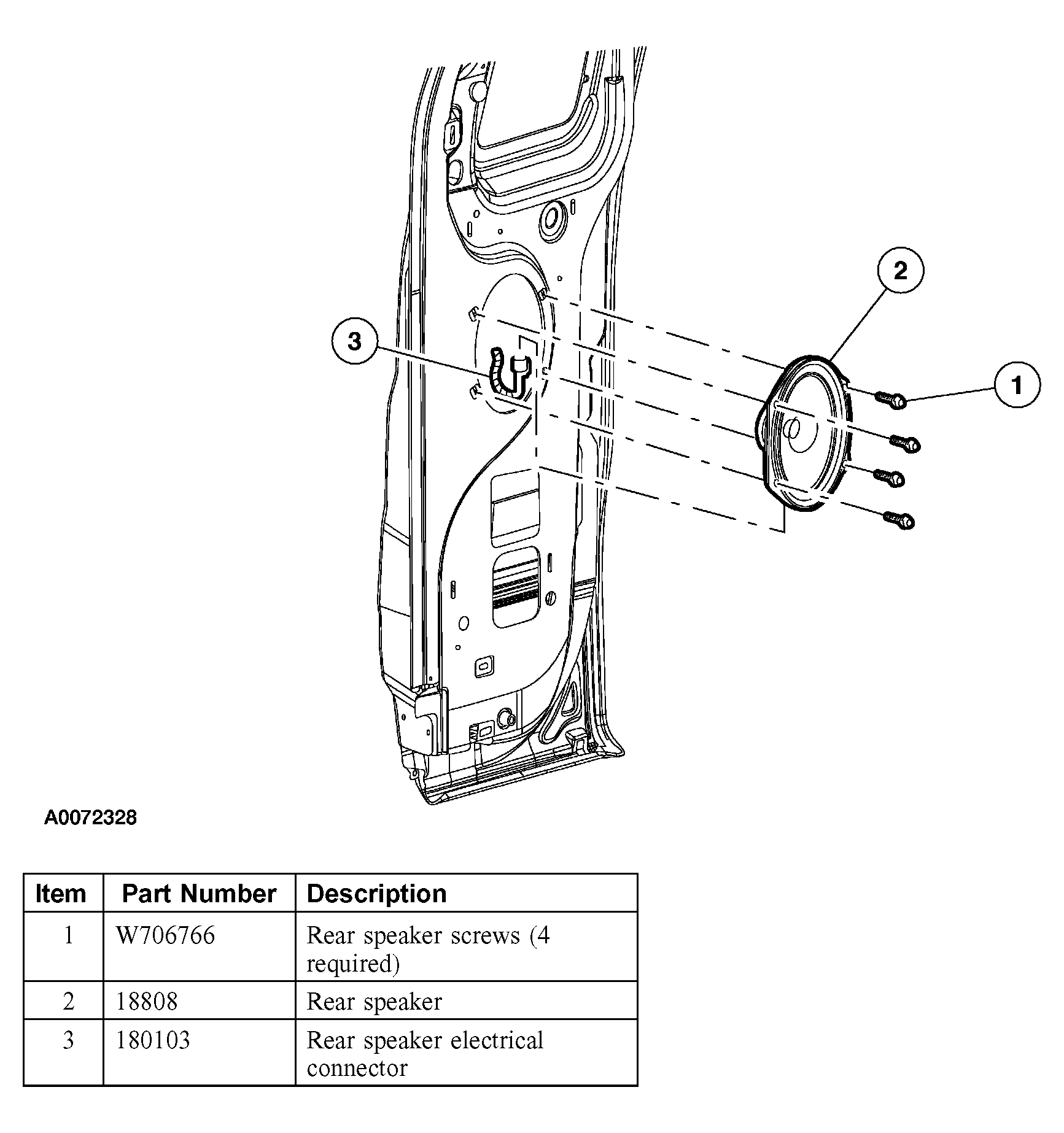

Fig 3: Removing Rear Door Speaker
G03965627Courtesy of FORD MOTOR CO.
