Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

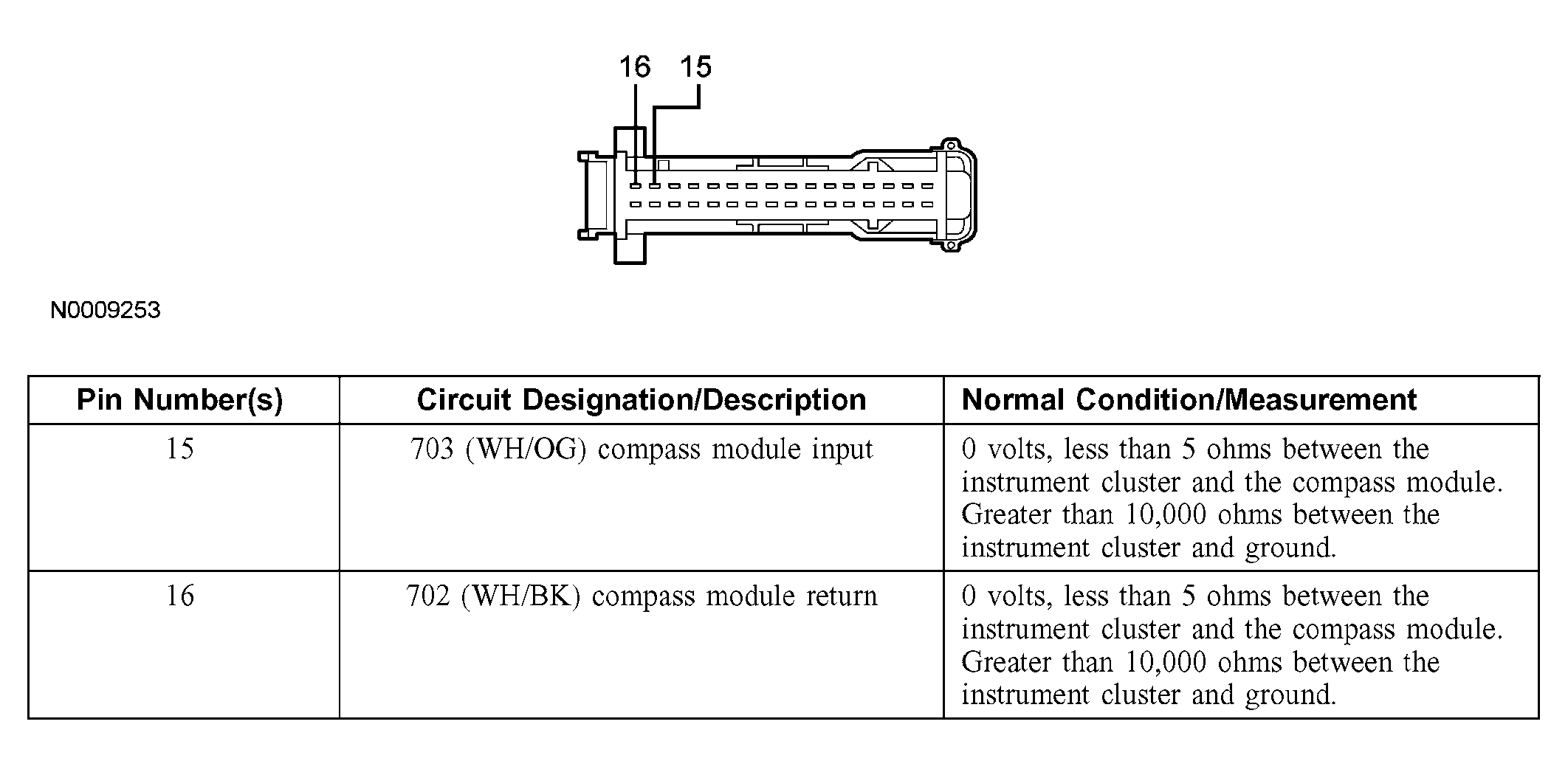

Fig 1: Identifying Instrument Cluster C220a Connector Pinout
G03965499Courtesy of FORD MOTOR CO.

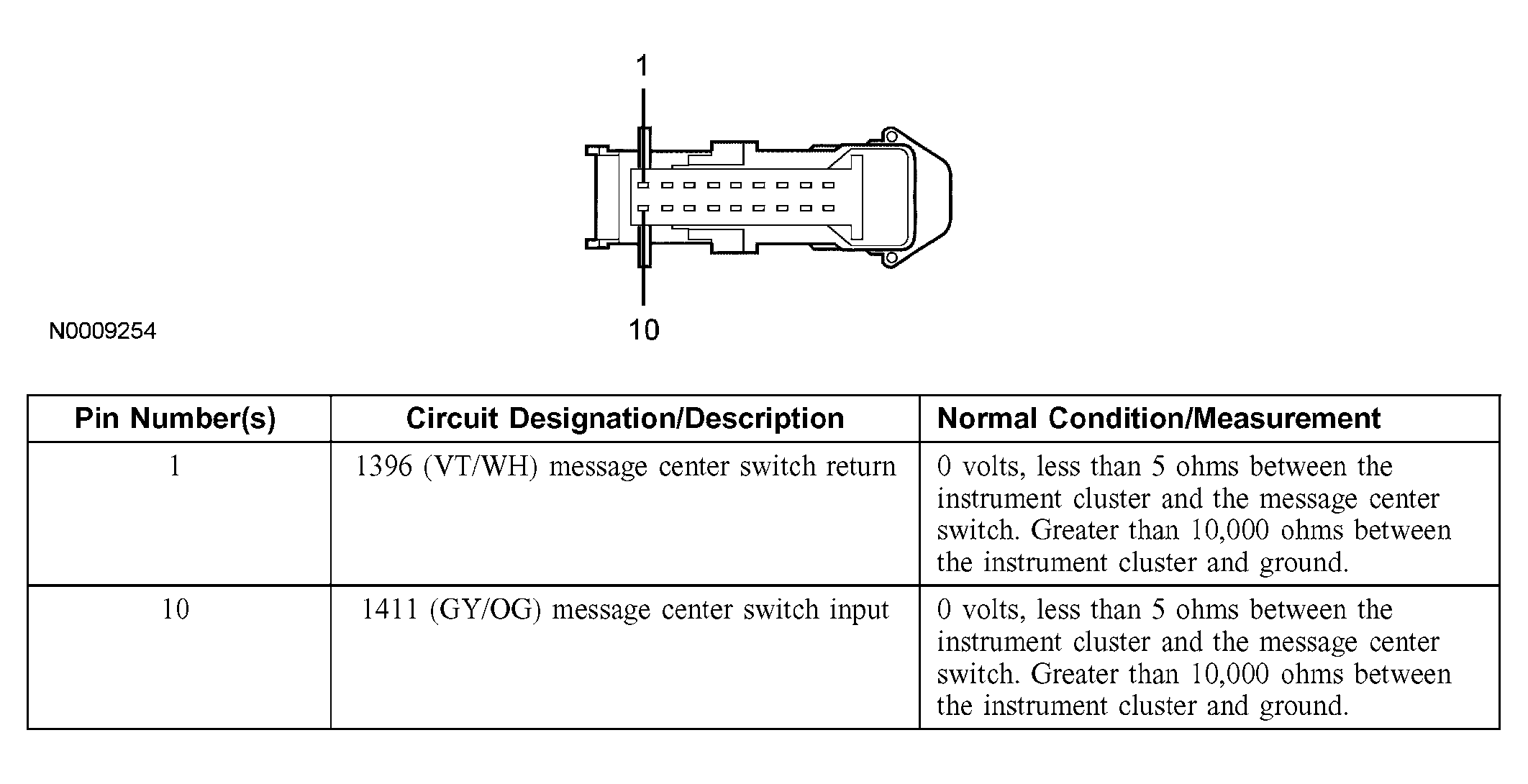

Fig 2: Identifying Instrument Cluster C220b Connector Pinout
G03965500Courtesy of FORD MOTOR CO.

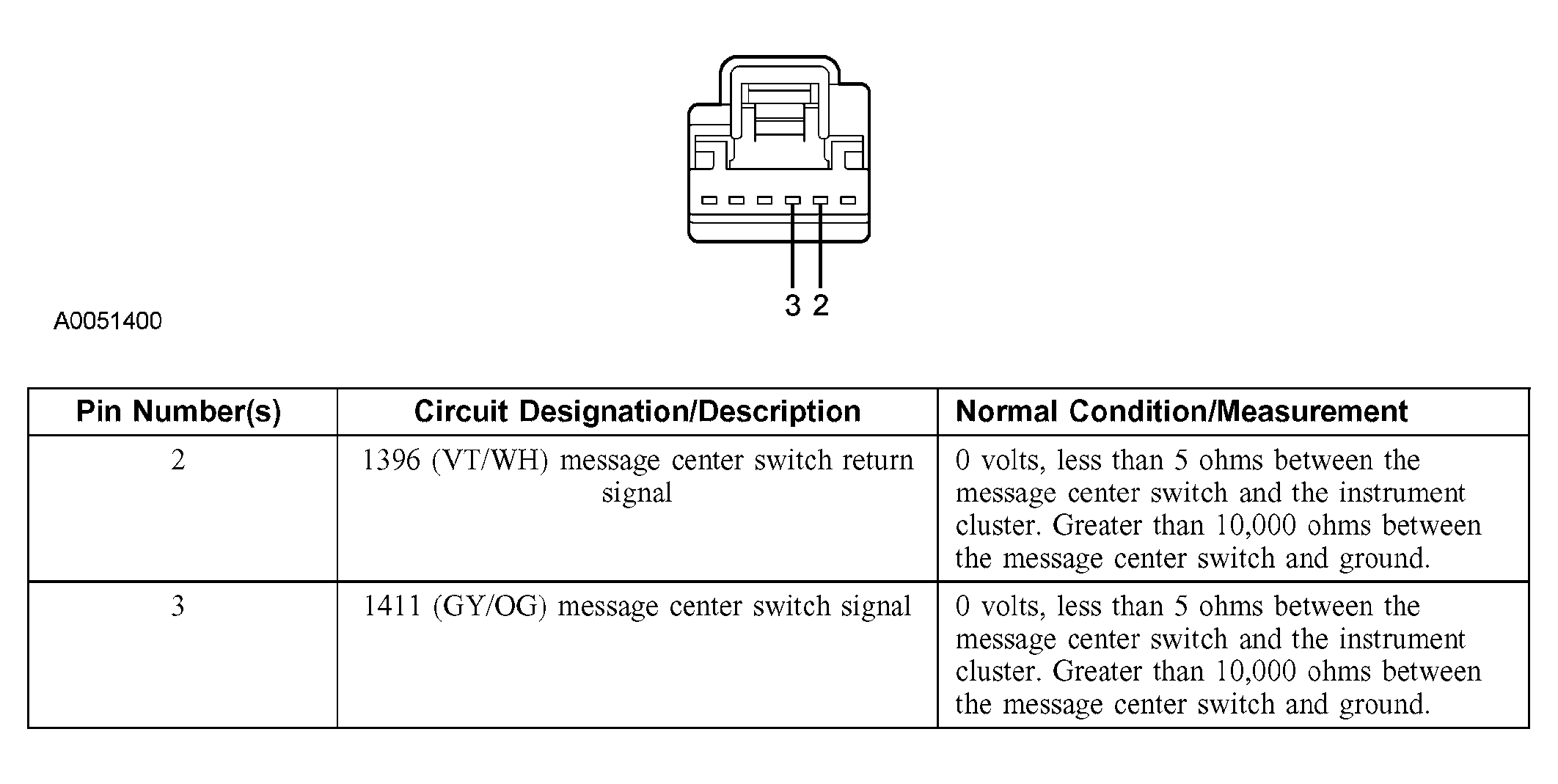

Fig 3: Identifying Message Center Switch C253 Connector Pinout
G03965501Courtesy of FORD MOTOR CO.

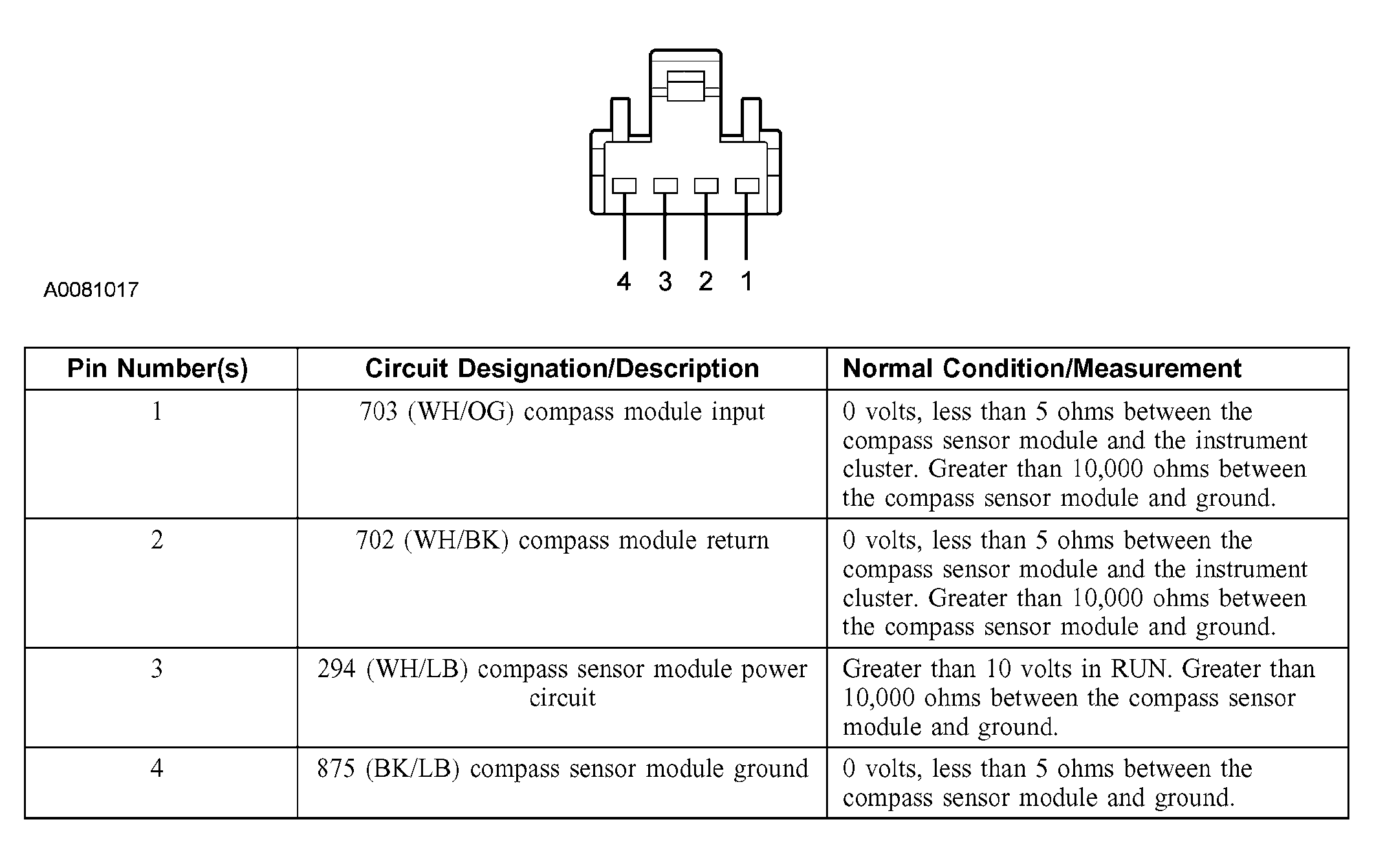

Fig 4: Identifying Compass Sensor Module C909
G03965502Courtesy of FORD MOTOR CO.
