Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

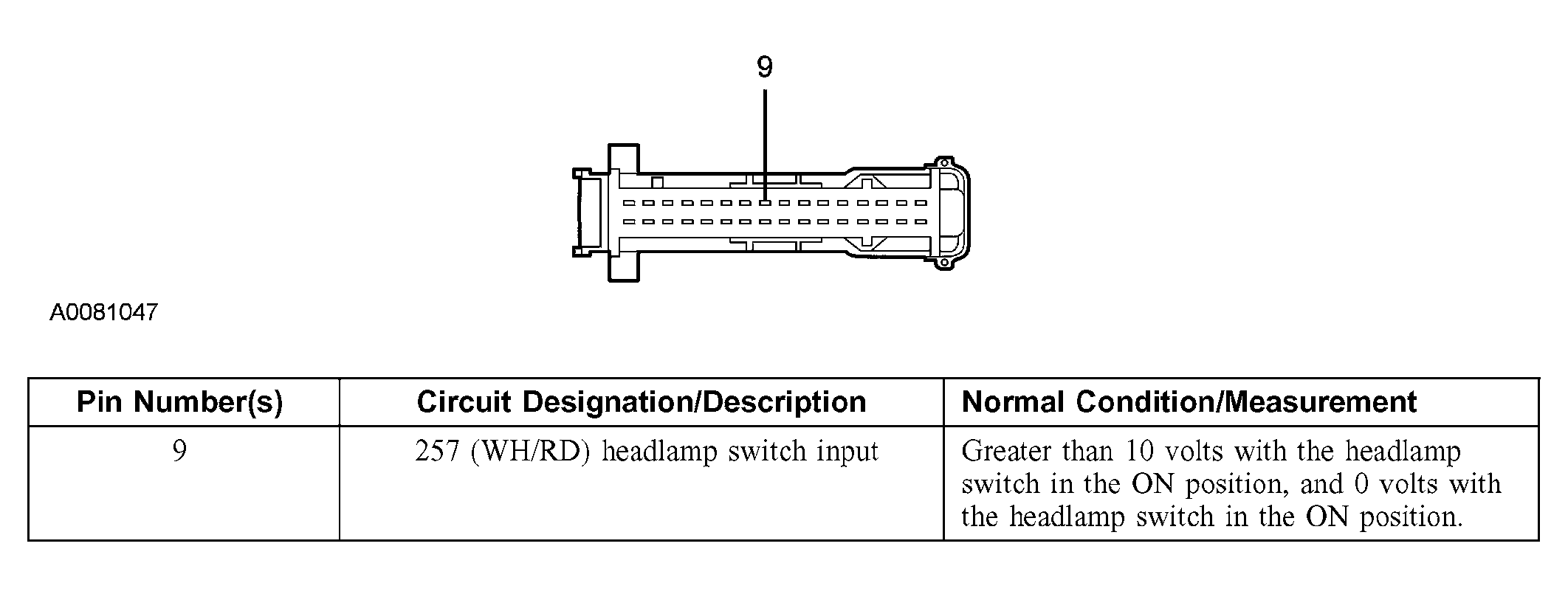

Fig 1: Identifying Headlamp Switch C205a Connector Pinout (Vehicles Built Before 11/2004)

Courtesy of FORD MOTOR CO.

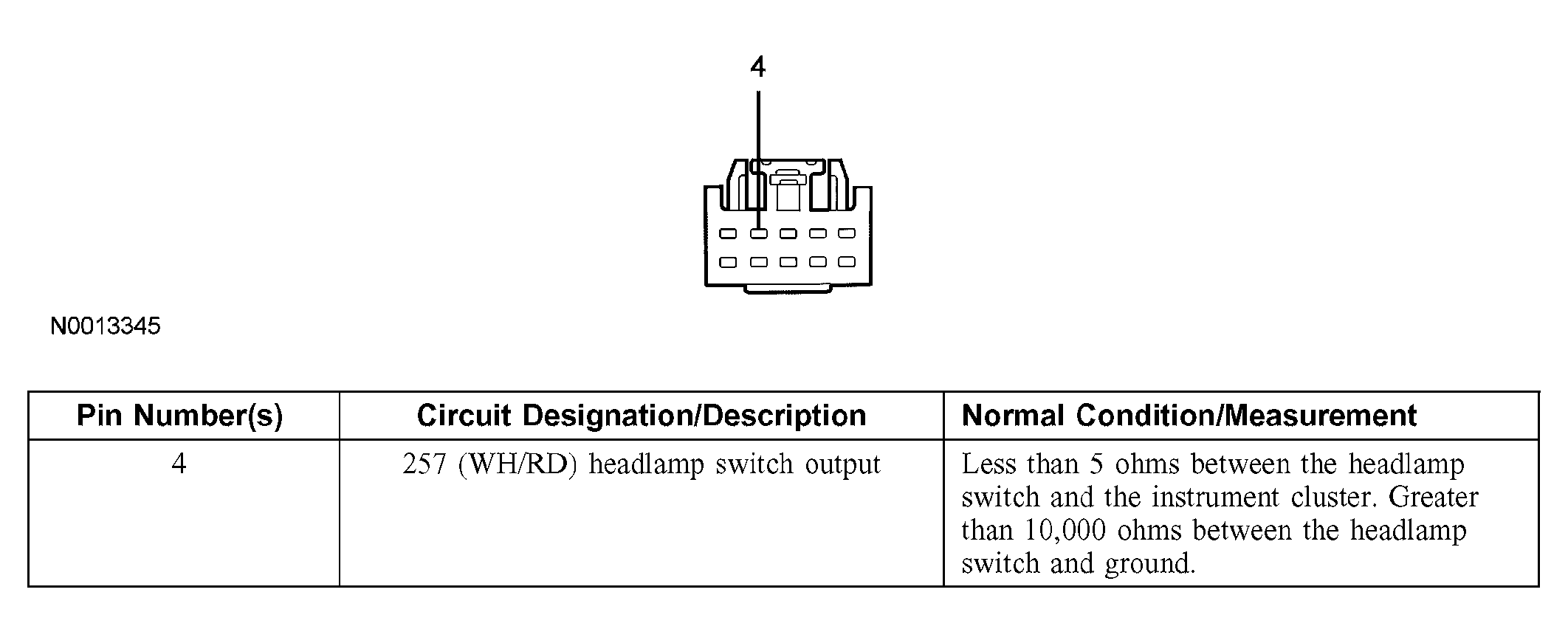

Fig 2: Identifying Headlamp Switch C2150a Connector Pinout (Vehicles Built After 11/2004)

Courtesy of FORD MOTOR CO.

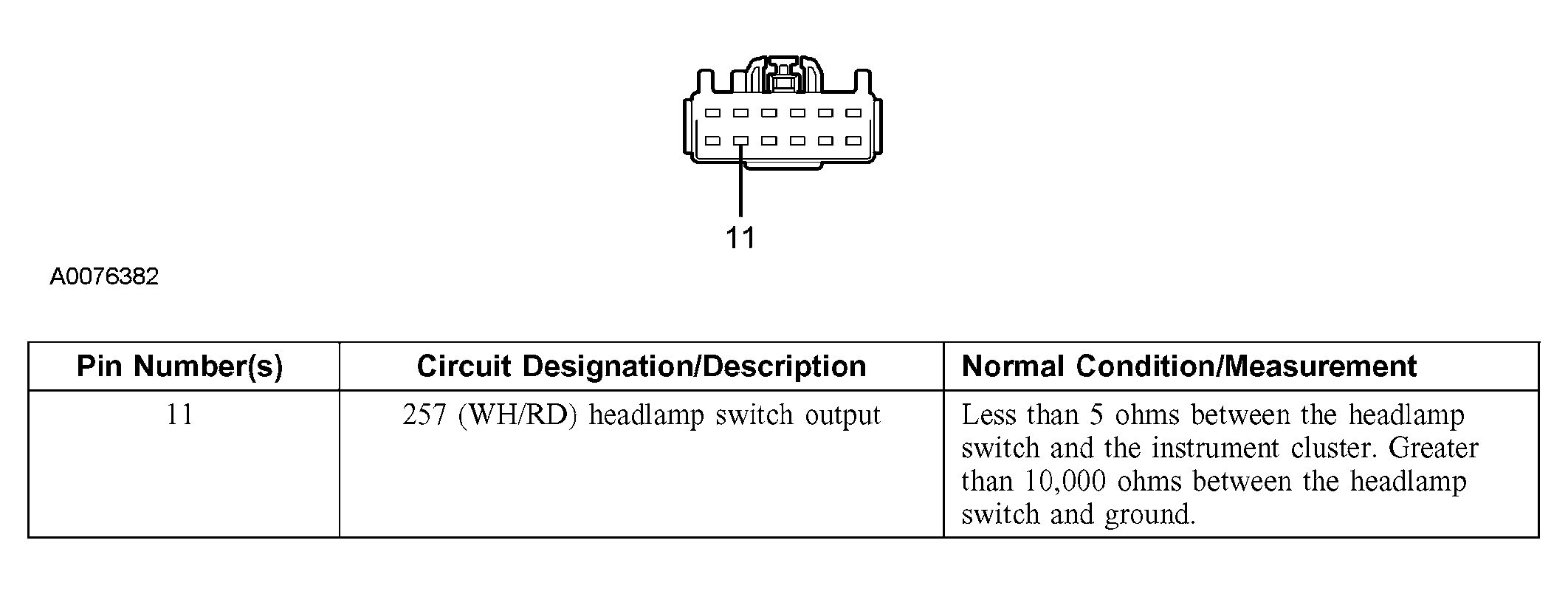

Fig 3: Identifying Instrument Cluster C220a Connector Pinout

Courtesy of FORD MOTOR CO.

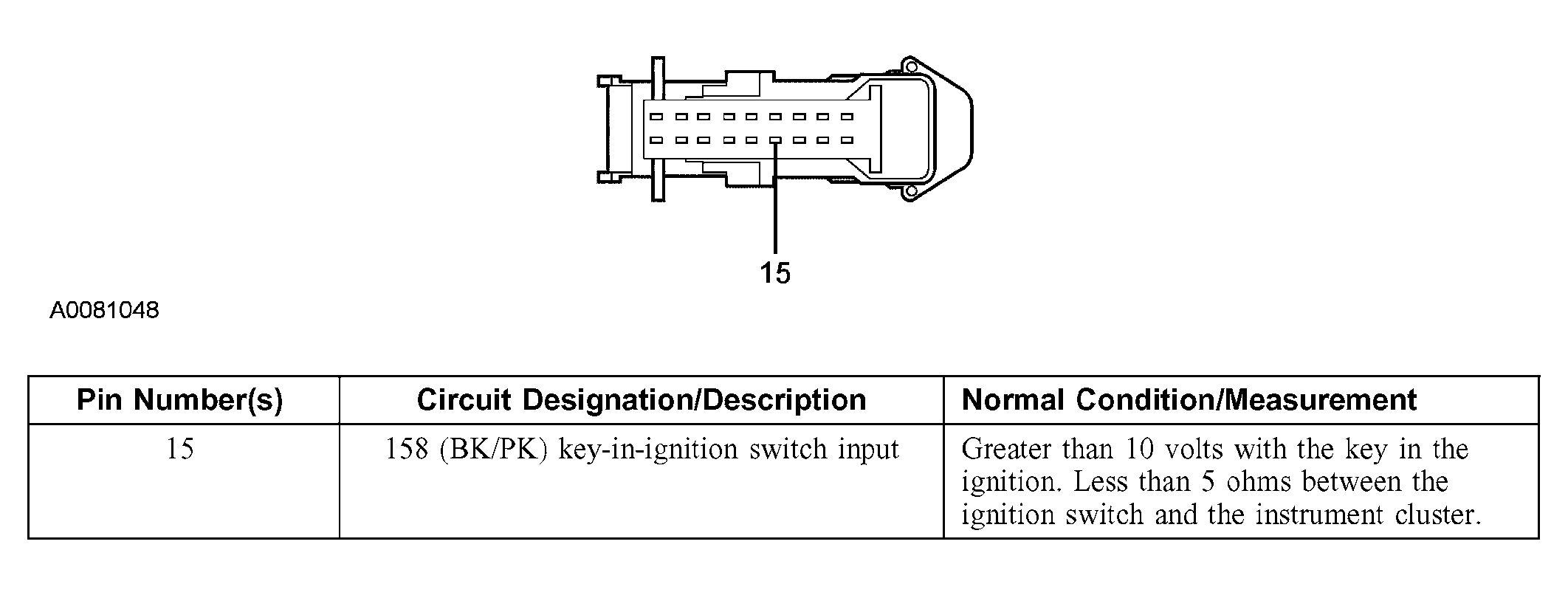

Fig 4: Identifying Instrument Cluster C220b Connector Pinout

Courtesy of FORD MOTOR CO.

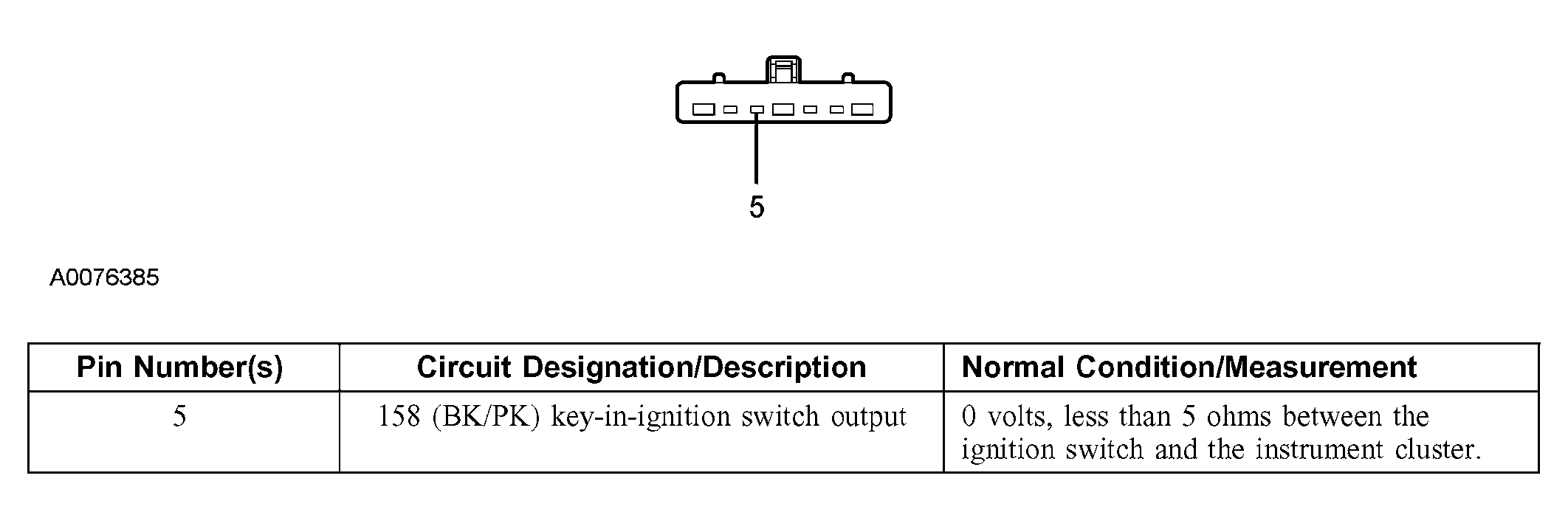

Fig 5: Identifying Ignition Switch C250 Connector Pinout

Courtesy of FORD MOTOR CO.
