Subwoofer Amplifier C3020

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

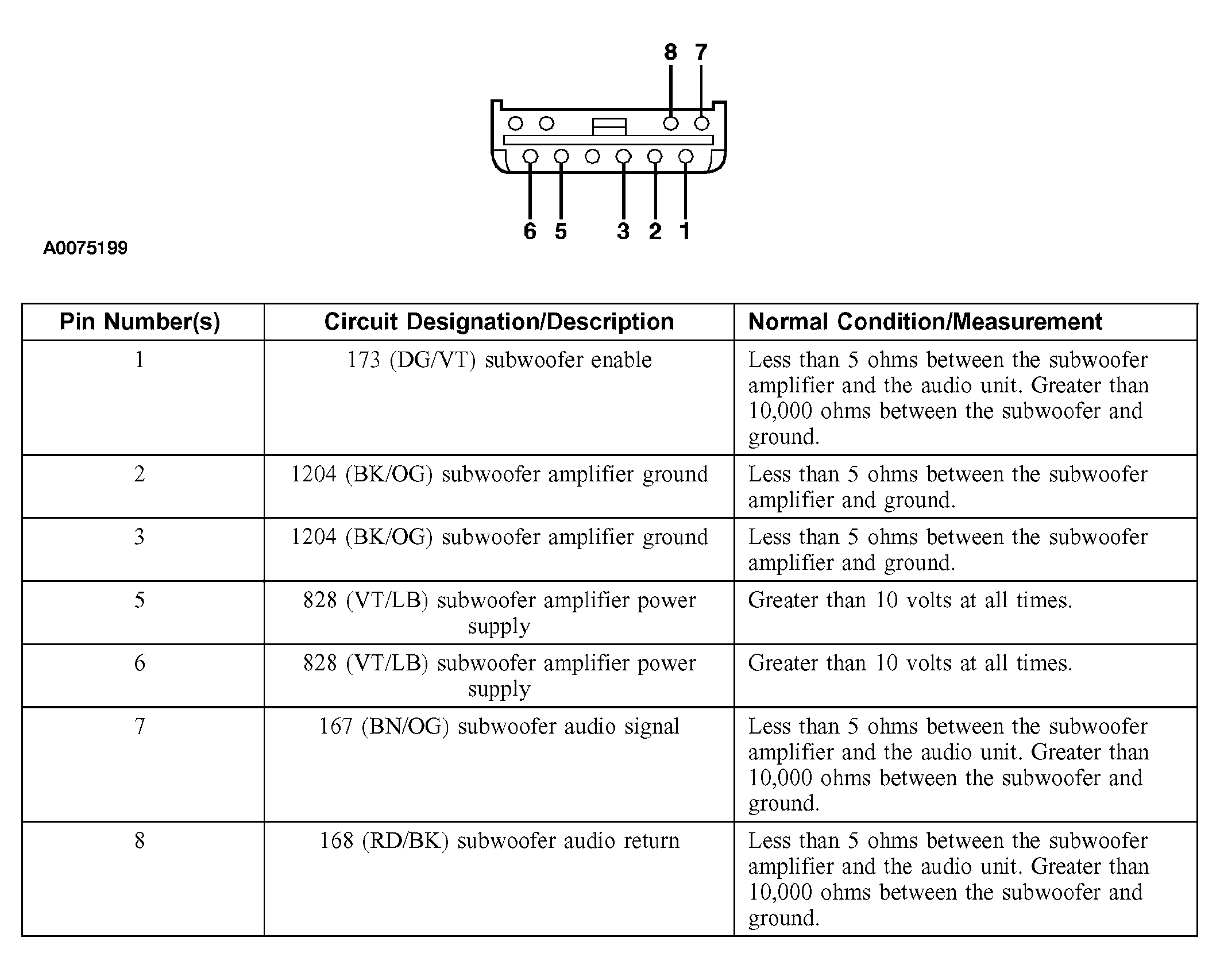

Fig 1: Identifying Subwoofer Amplifier C3020 Connector Circuit Reference
G03965598Courtesy of FORD MOTOR CO.
