Digital Versatile Disc (DVD) Player C949

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

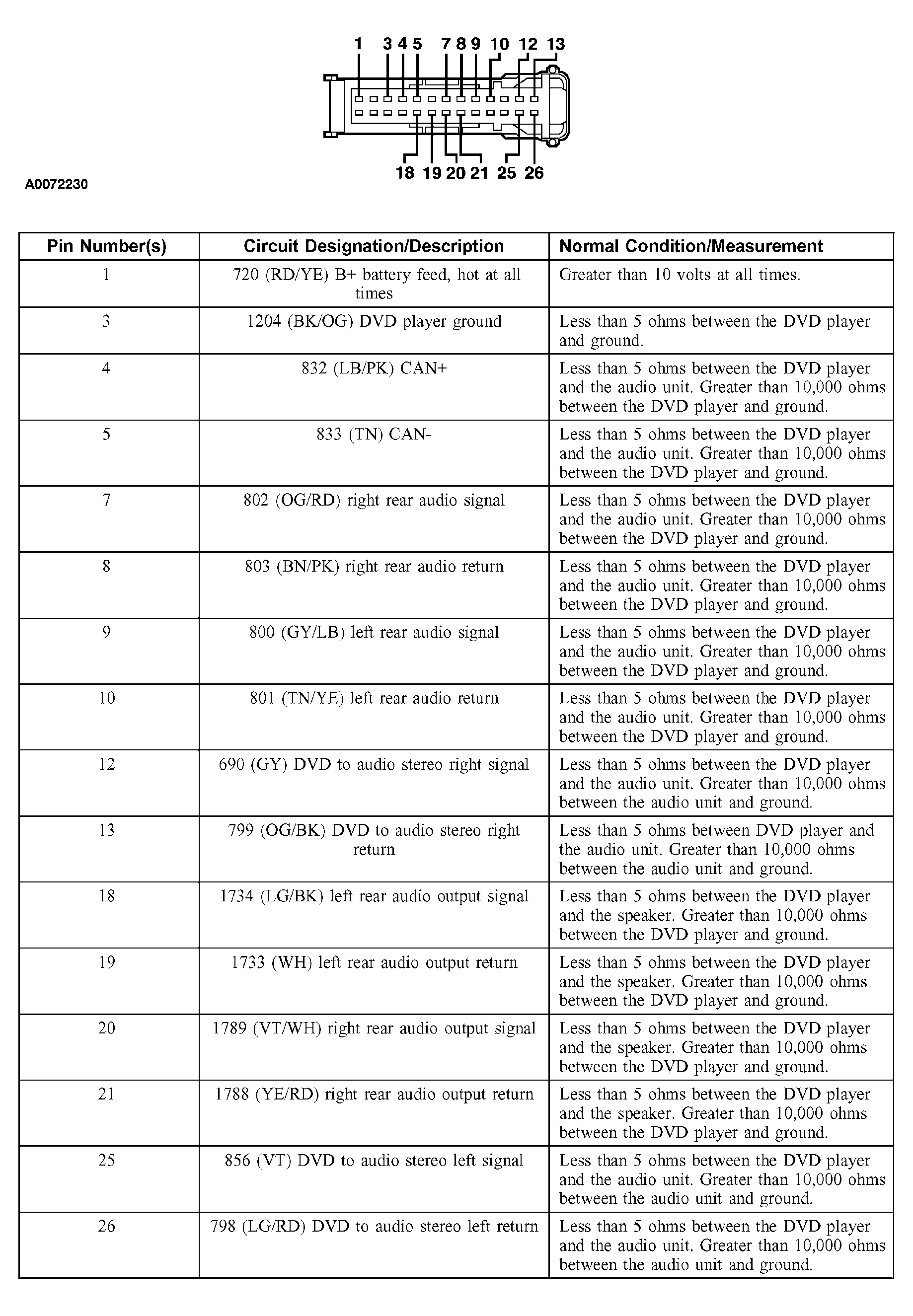

Fig 1: Identifying Digital Versatile Disc (DVD) Player C949 Connector Circuit Reference
G03965597Courtesy of FORD MOTOR CO.
