Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

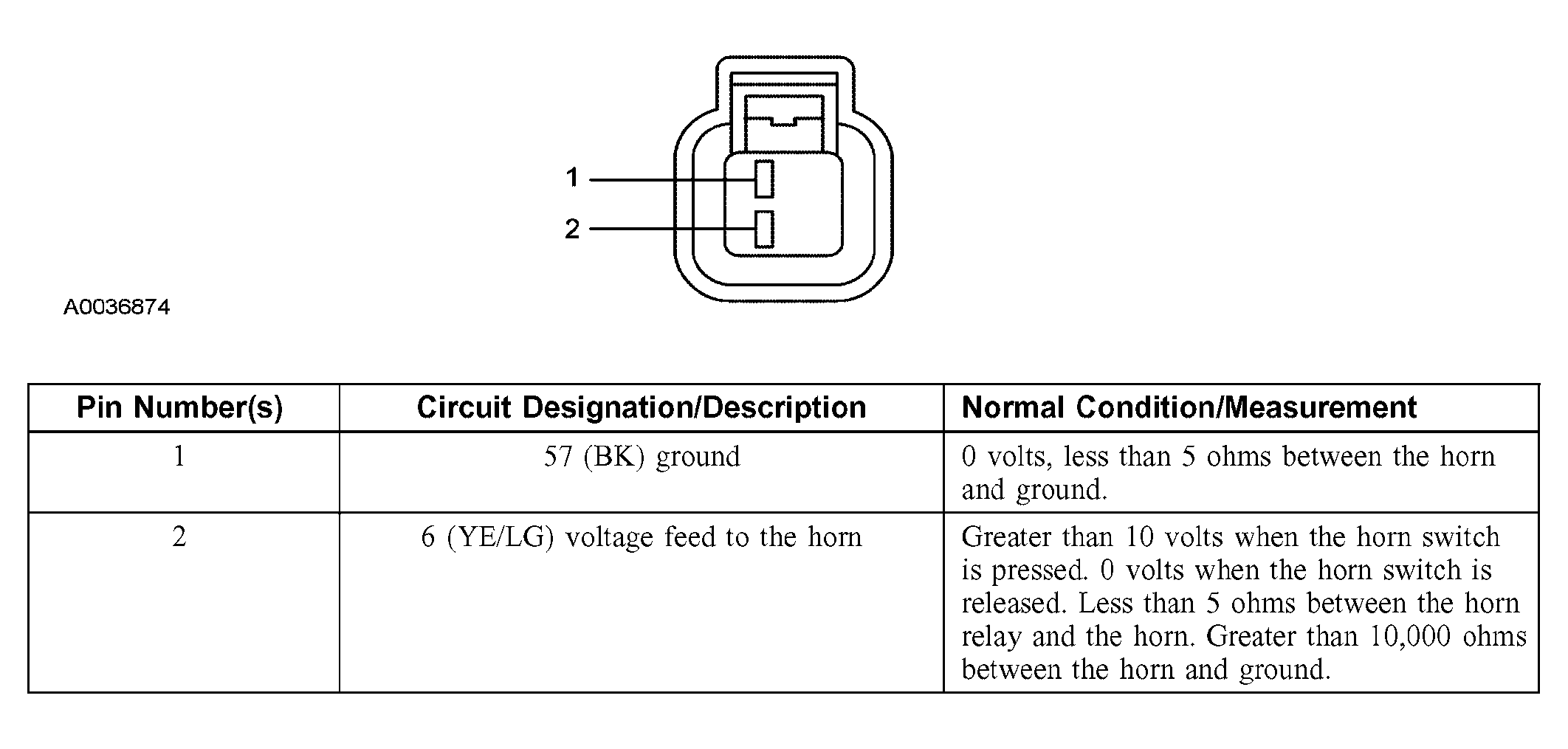

Fig 1: Identifying Horn C131 Connector Terminals

Courtesy of FORD MOTOR CO.

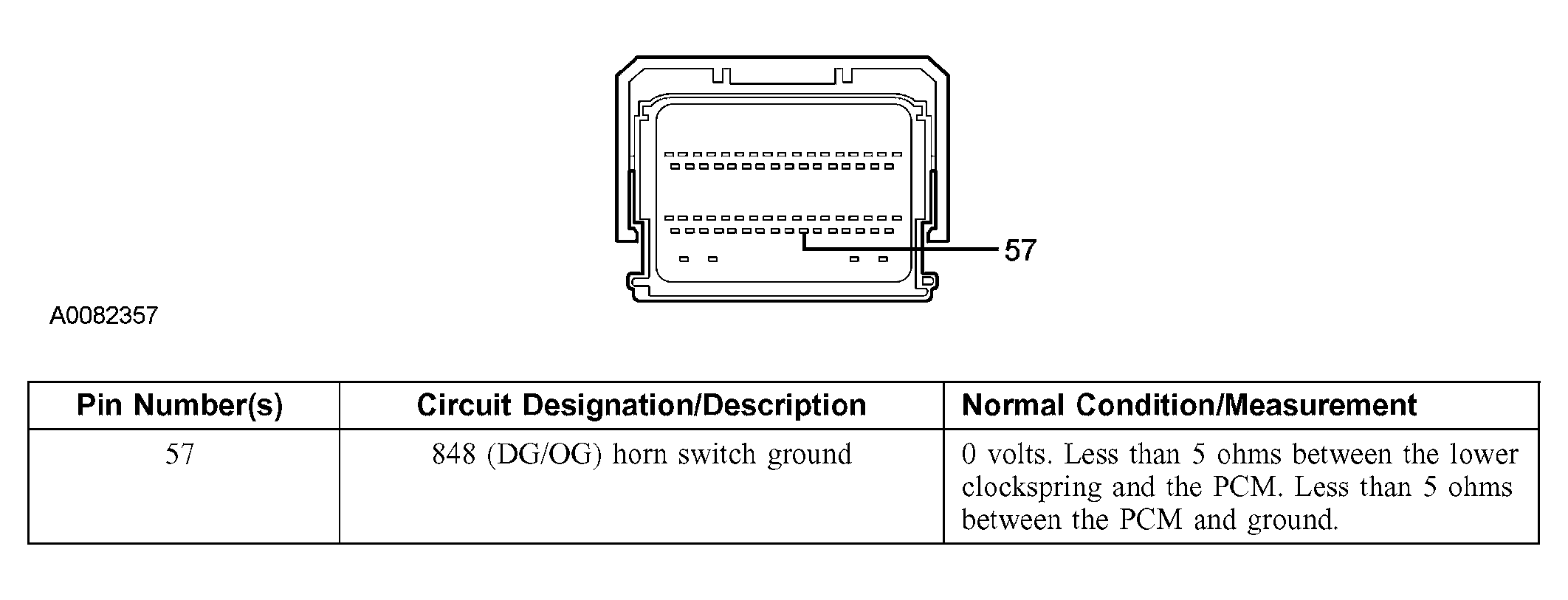

Fig 2: Identifying Powertrain Control Module C175b Connector Terminals

Courtesy of FORD MOTOR CO.

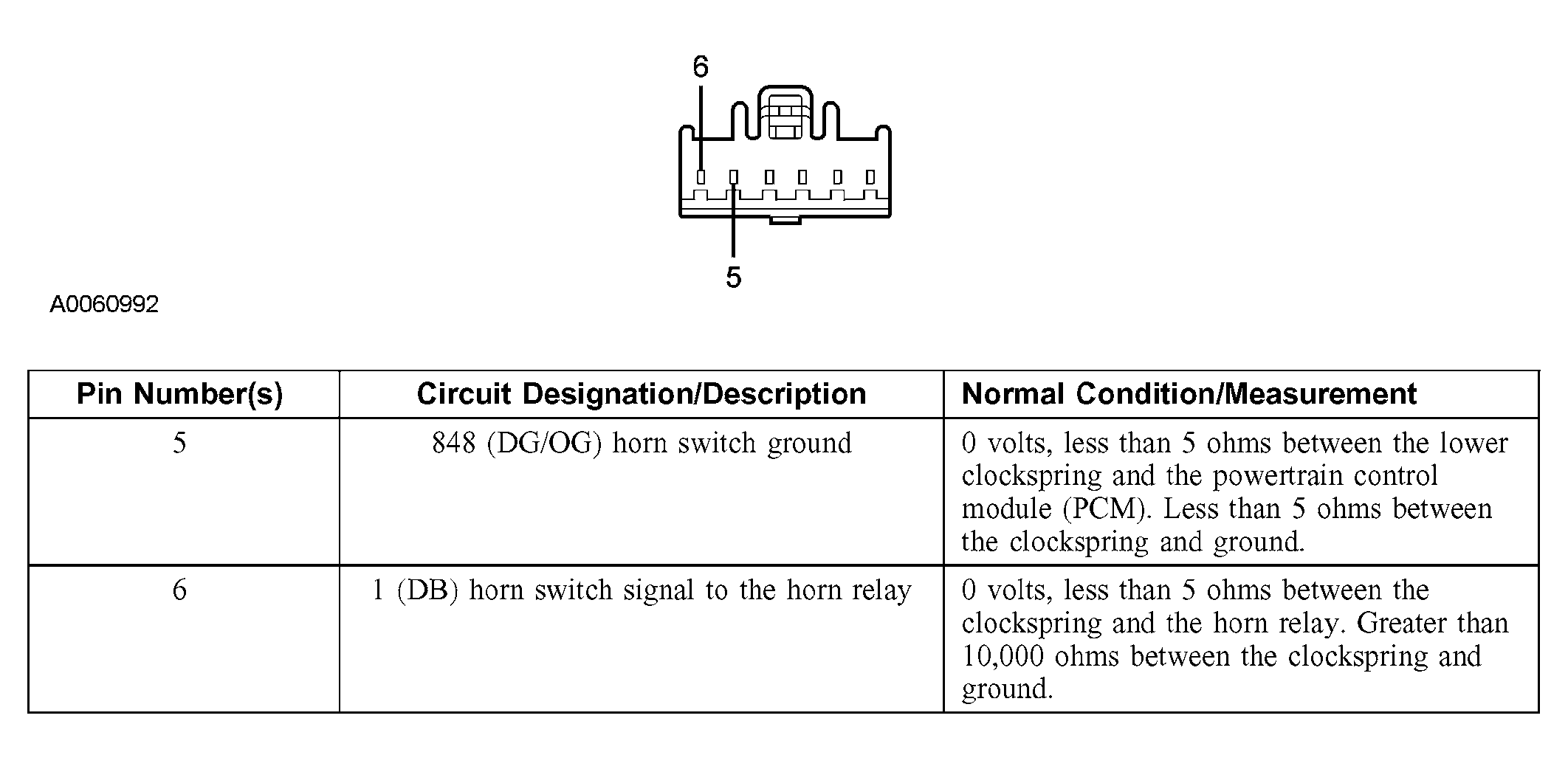

Fig 3: Identifying Clockspring C218b Connector Terminals

Courtesy of FORD MOTOR CO.

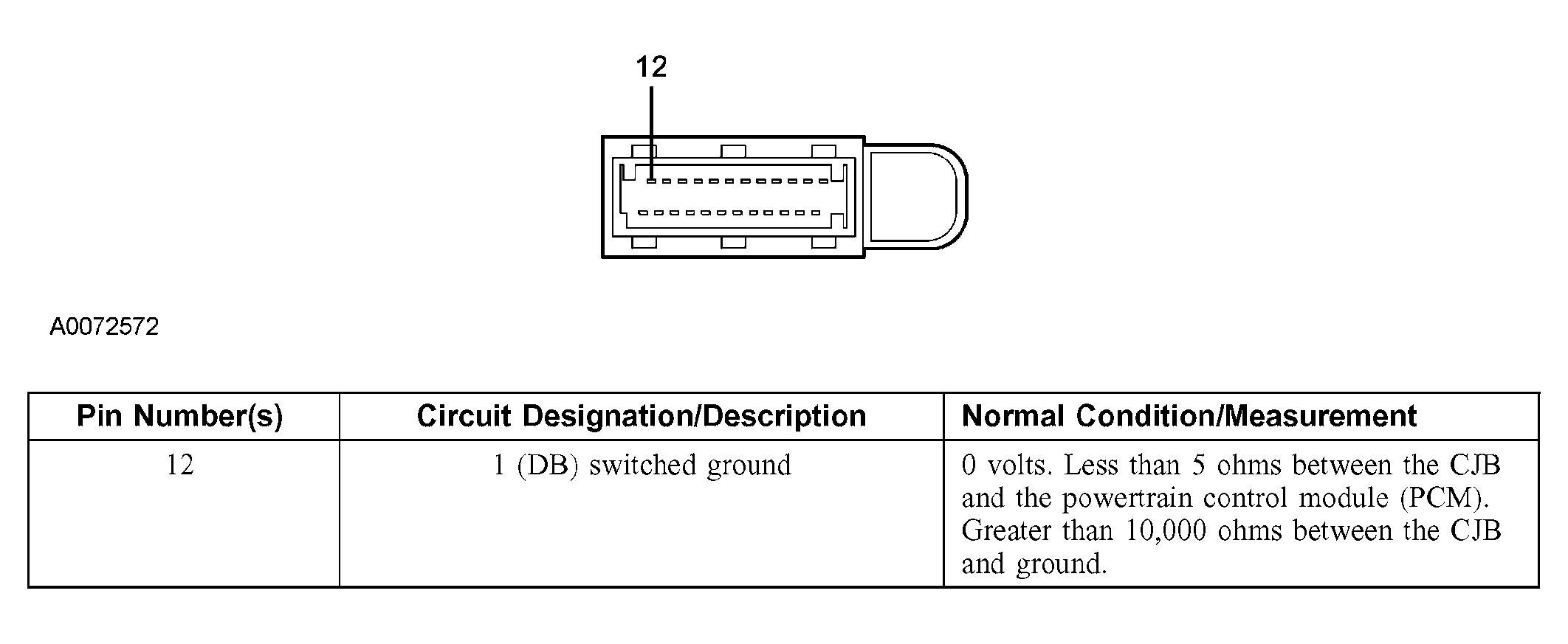

Fig 4: Identifying Central Junction Box C270a Connector Terminals

Courtesy of FORD MOTOR CO.

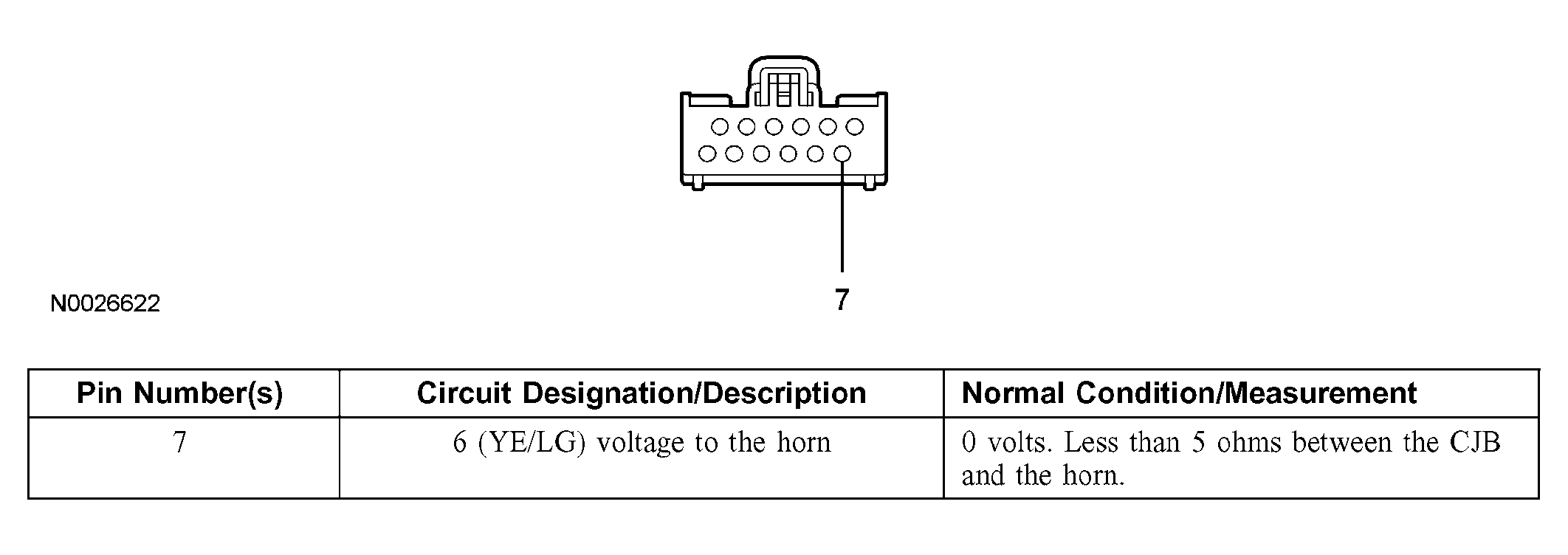

Fig 5: Identifying Central Junction Box C270e Connector Terminals

Courtesy of FORD MOTOR CO.
