WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCab shown, SuperCrew similar.

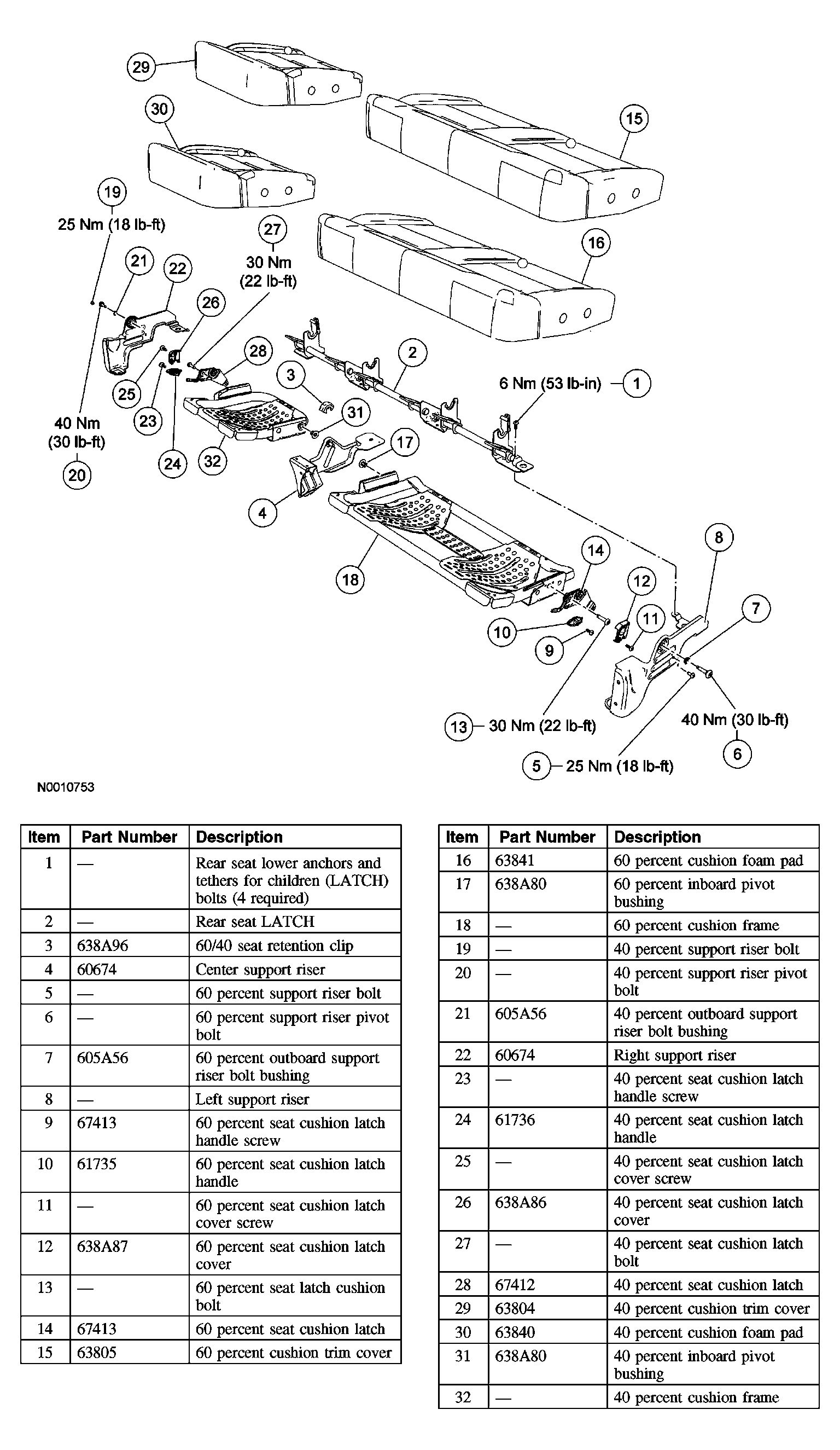

Fig 1: Exploded View Of Rear Seat Cushion
Courtesy of FORD MOTOR CO.

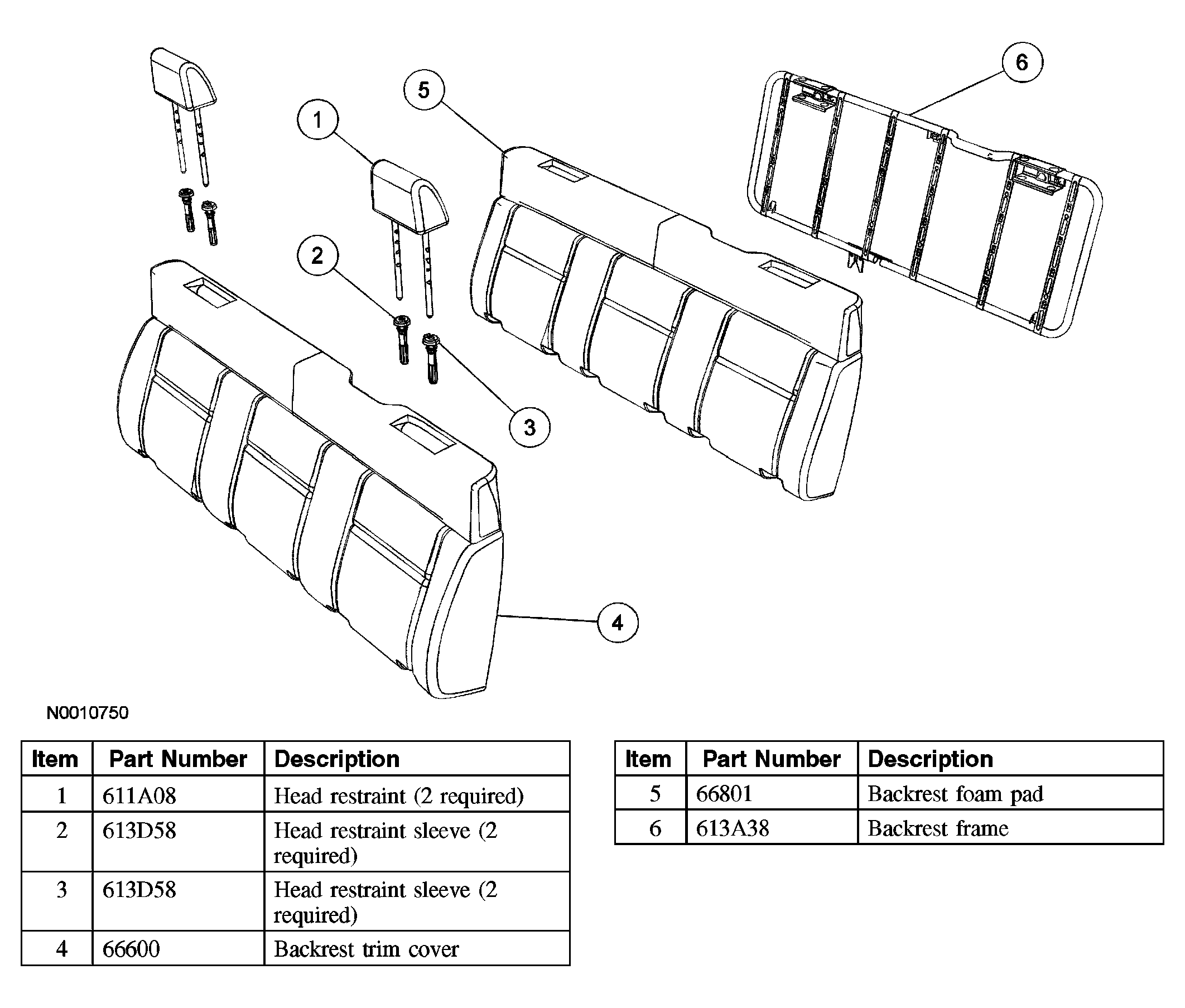

Fig 2: Exploded View Of Rear Seat Backrest
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
