Seat Cushion - Front: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION

G03878958
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

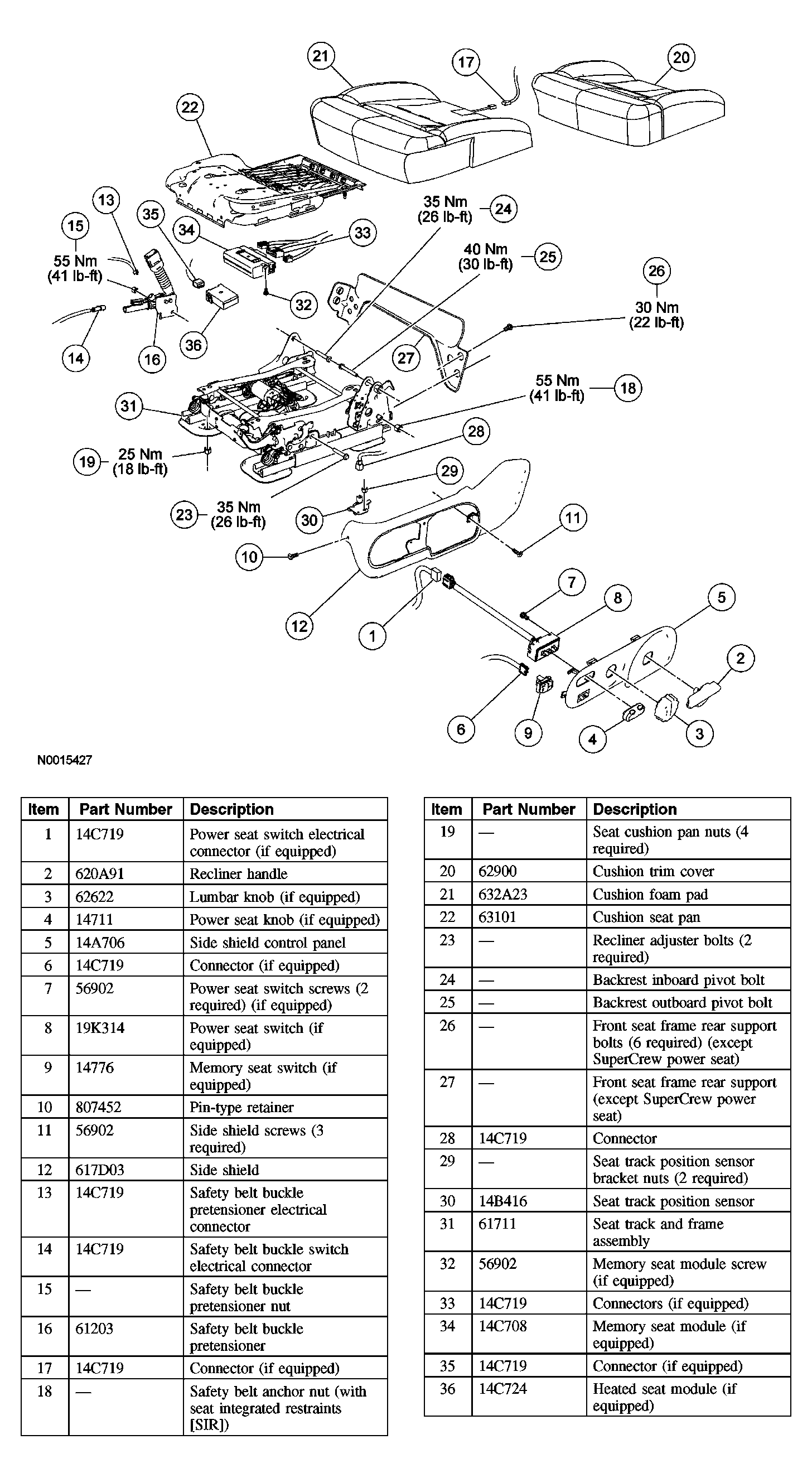

Fig 1: Exploded View Of Driver Seat Cushion
G03966242Courtesy of FORD MOTOR CO.

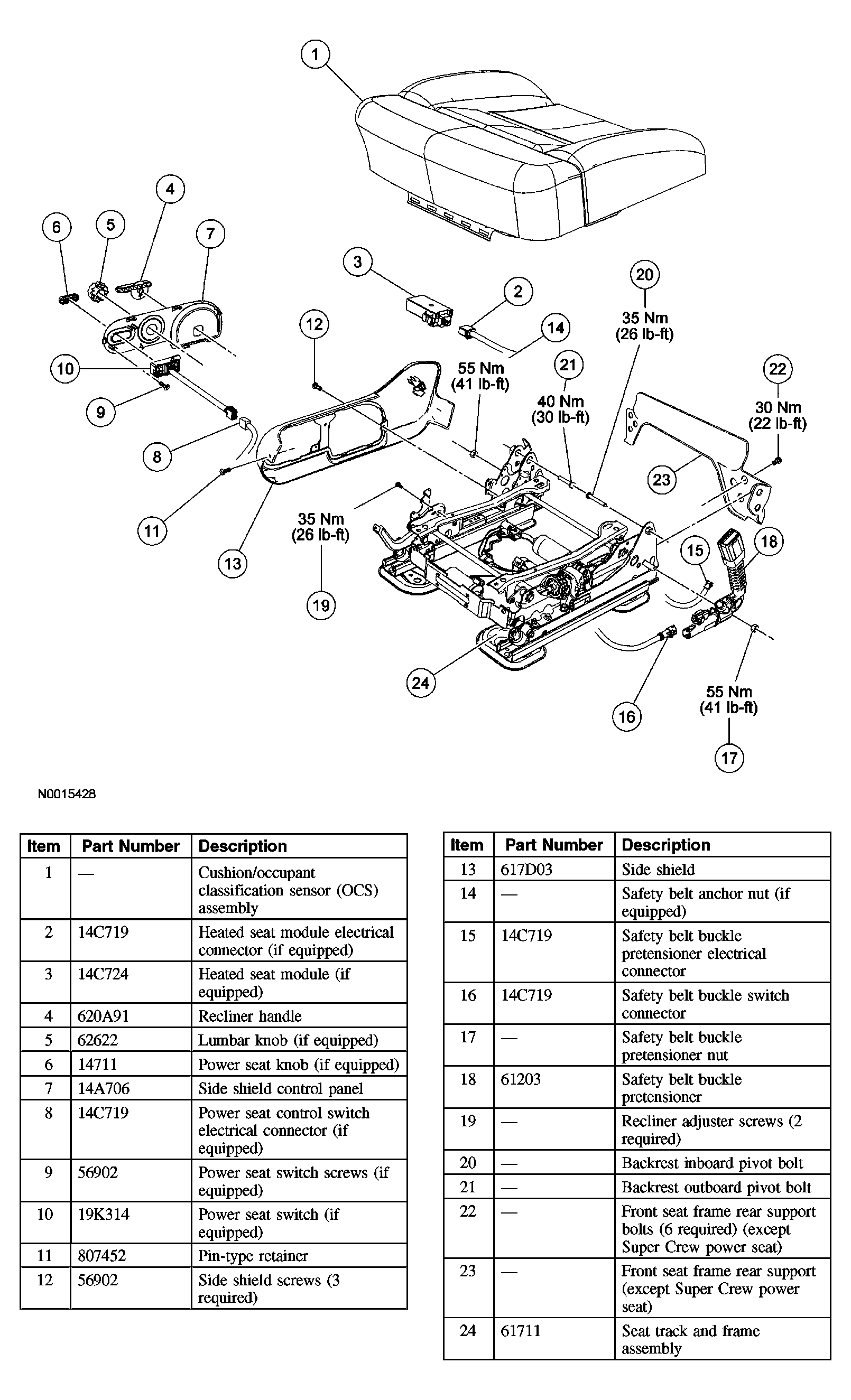

Fig 2: Exploded View Of Passenger Seat Cushion
G03966243Courtesy of FORD MOTOR CO.
