Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat backrest. For additional information, refer to SEAT - REAR .
Remove the head restraints (one shown).
- Push the 2 release tabs and remove the head restraint.
Fig 1: Removing Head Restraint
Courtesy of FORD MOTOR CO.

NOTE: The inboard and outboard head restraint sleeves are not interchangeable.

NOTE: If necessary, install new head restraint sleeves.

Fig 2: Pushing Release Tabs And Pulling Head Restraint Sleeves Out Of Frame Tube

Courtesy of FORD MOTOR CO.

Push the release tabs and pull the head restraint sleeves out of the frame tube (trim cover and foam pad removed for clarity).
Release the backrest J-clips.

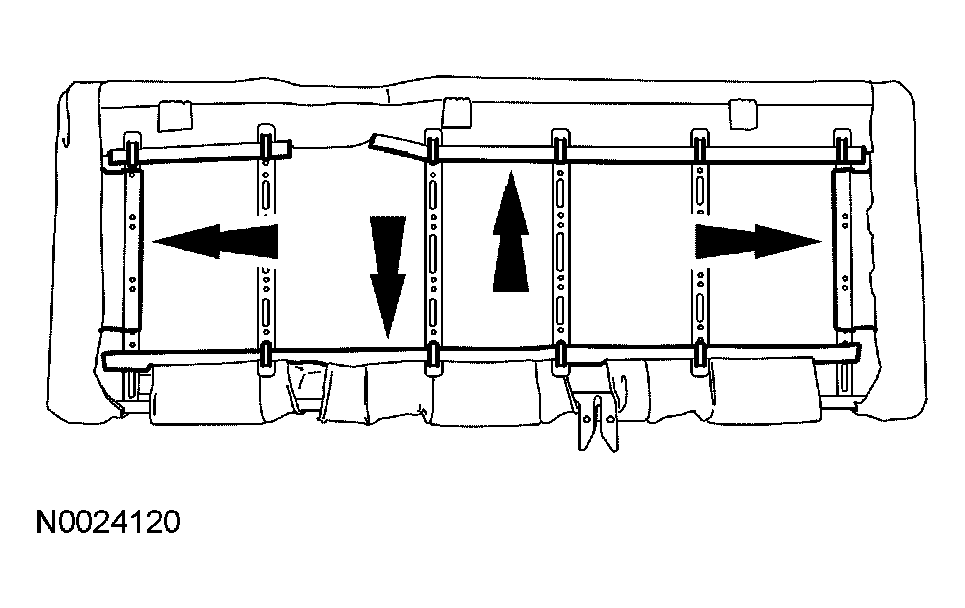

Fig 3: Releasing Backrest J-Clips
Courtesy of FORD MOTOR CO.

CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.

Fig 4: Separating Hook And Loop Fasteners

Courtesy of FORD MOTOR CO.

Separate the hook and loop fasteners.
Remove the hog rings. Remove the seat trim cover and the backrest foam pad.

Fig 5: Removing Seat Trim Cover And Backrest Foam Pad
Courtesy of FORD MOTOR CO.

NOTE: If necessary, install new plastic lock clips.

Fig 6: Pushing Release Tabs And Removing Backrest Plastic Lock Clips

Courtesy of FORD MOTOR CO.

Push the release tabs and remove the 3 backrest plastic lock clips (one shown).
To assemble, reverse the disassembly procedure.
