Passenger Heated Seat Module C329

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

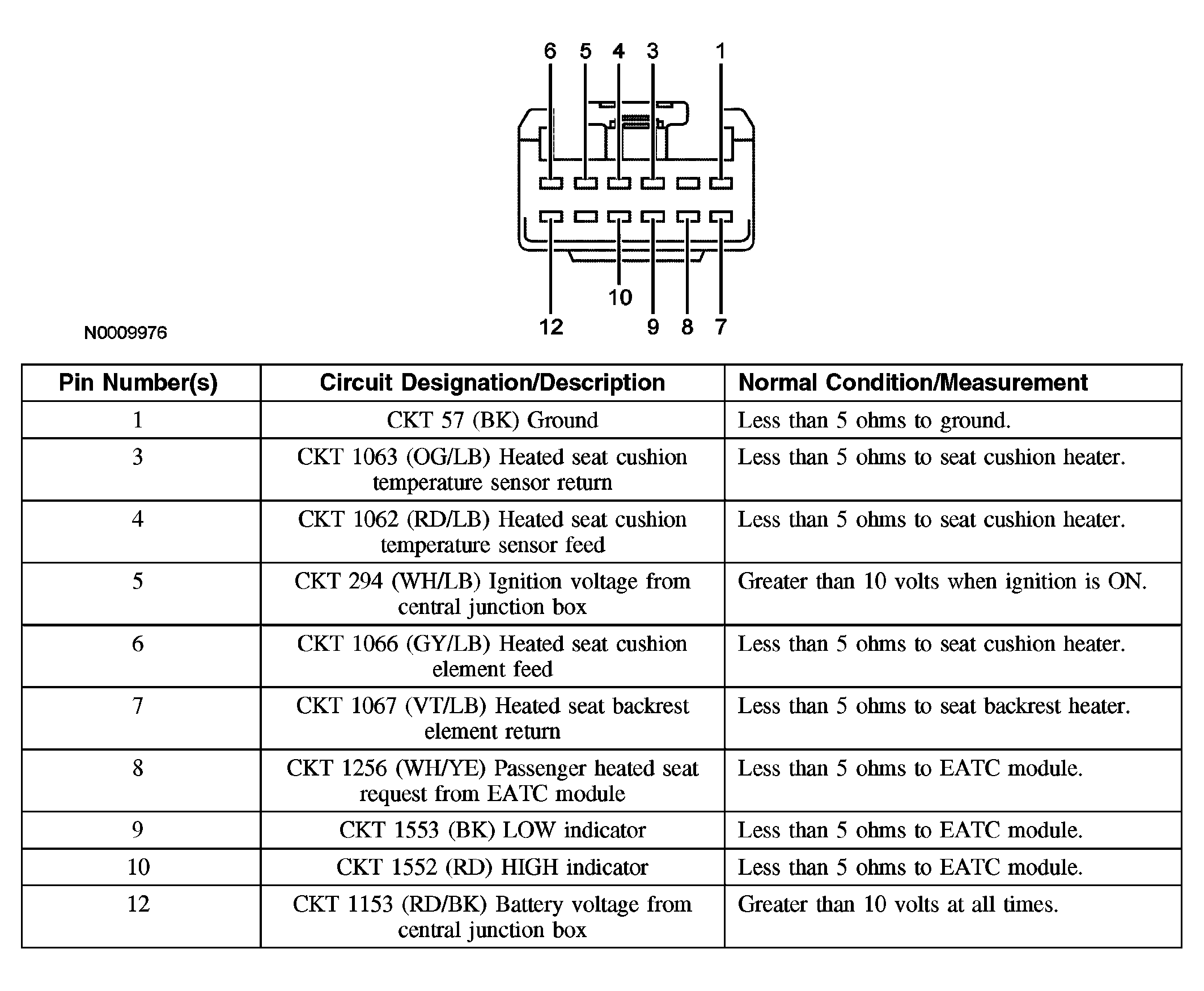

Fig 1: Identifying Passenger Heated Seat Module C329 Connector Pins
G03966060Courtesy of FORD MOTOR CO.
