Driver Seat Backrest Heated Seat Element C365

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

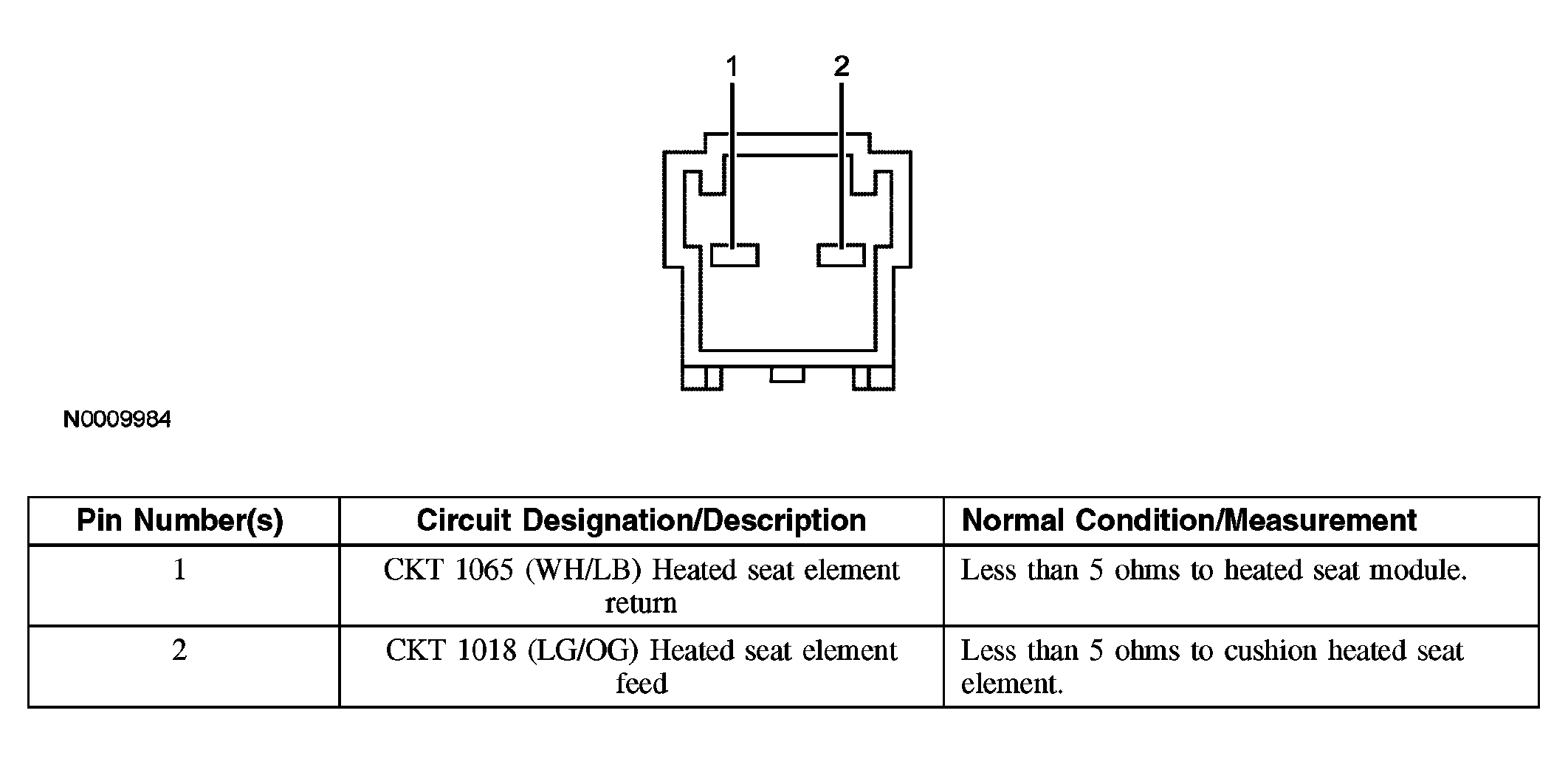

Fig 1: Identifying Driver Seat Backrest Heated Seat Element C365 Connector Pins
G03966065Courtesy of FORD MOTOR CO.
